20Ton LB Type Top sale Remote Control single beam Anti explosion or Explosion proof or explosive proof or exproof eot crane
LB Explosion proof Single Girder Overhead Crane is improved and designed on the basis of LDA model. It is characterized by more reasonable structure, beautiful appearance and strong anti explosion characteristics, Used together with HB model, HBS model explosion-proof electric hoist as a complete set, mainly used in machinery manufacturing and places like assembling plants,storage houses.with the advantages of low energy consumption, strong rigidity, light weight, outstanding structural design, etc.
Main Features of LB Explosion proof Single Girder Overhead Crane :
1).Light structure,easy installation and maintenance;
2). Reasonable structure,strong bearing capacity;
3). Low noise, soft starting and stopping ;
4). Safe and reliable operation;
5). Low cost maintenance, long working life;
6). Strong box type,welding by machine hand.;
7). Wheels, wire rope drum,gears, couplings are processed by CNC machine center, TOP quality control.
LB Explosion proof Single Girder Overhead Crane of Sketch :
LB Explosion proof Single Girder Overhead Crane of Technical Specifications
| Technical Specifications |
| Crane Traveling Mechanism |
Lifting Speed |
m/min |
20 |
| Reduce Ratio |
|
58.95 |

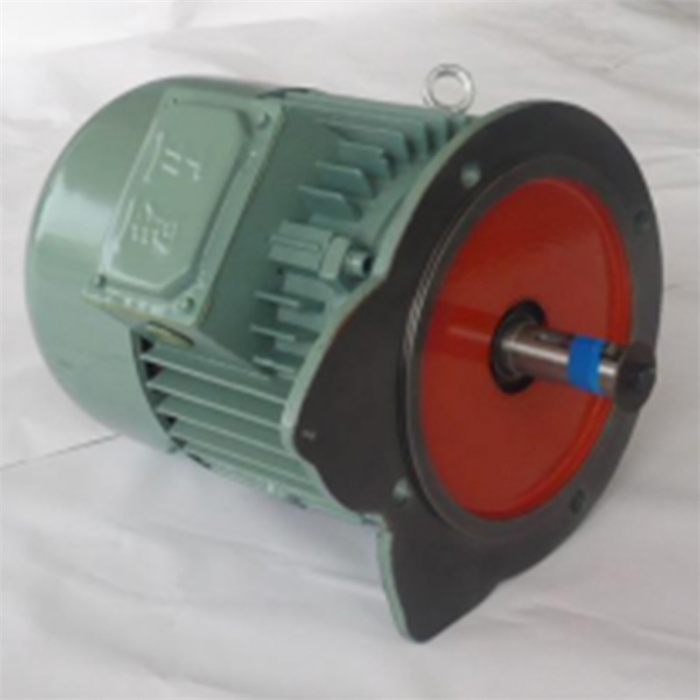

| Motor |
Type |
|
Cone-shape Cage |
| Power |
KW |
0.8×2,1.5×2,2.2×2 |
| RPM |
r/min |
1380 |
| Lifting Mechanism (Electric Hoist) |
Hoist Type |
|
HB, BCD, BMD |
| Lifting Speed |
m/min |
8/0.8,7/0.7,3.5/0.35 8,7,3.5 |
| Lifting Height |
m |
6, 9, 12, 18, 24 |
| Traveling Speed |
m/min |
20 |
| Motor |
|
Motor |
| Work Duty |
A4 |
| Power Supply |
380V, 50Hz, Three Phase |
| Diameter of Wheel |
Φ270mm,Φ400mm |
| Width of Track |
37mm~70mm |
| Explosion-proof Grade |
ExdⅡBT4/ExdⅡCT4 |
Photos of LB Explosion proof Single Girder Overhead Crane:
FAQ:
1. What’s the information should I provide when inquiry?
More details or drawings, better.
A: Lift capacity B: span C: lift height D: power sourceor other specials you give us will be more appreciated.
2. How many operating methods for my selection?
Standard operating methods:
A: pendent controller with push buttons .
B: remote control with push buttons
C: cabin(space capsule seat) control with joystick. Choose any type as you like.
3. Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no problem for that.
4. Can you provide the serious lifting tools?
Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
5. How can we install the crane?
Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
6. Safety device
Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
If you are interested, please feel free to contact me
