| Technical Specifications |
| Crane Traveling Mechanism |
Lifting Speed |
m/min |
20 |
| Reduce Ratio |
|
58.95 |
| Motor |
Type |
|
Cone-shape Cage |
| Power |
KW |
0.8×2,1.5×2,2.2×2 |
| RPM |
r/min |
1380 |
| Lifting Mechanism (Electric Hoist) |
Hoist Type |
|
HB, BCD, BMD |
| Lifting Speed |
m/min |
8/0.8,7/0.7,3.5/0.35 8,7,3.5 |
| Lifting Height |
m |
6, 9, 12, 18, 24 |
| Traveling Speed |
m/min |
20 |
| Motor |
|
Cone-shape Cage |
| Work Duty |
A4 |
| Power Supply |
380V, 50Hz, Three Phase |
| Diameter of Wheel |
Φ270mm,Φ400mm |
| Wideth of Track |
37mm~70mm |
| Explosion-proof Grade |
ExdⅡBT4/ExdⅡCT4 |
Main Features of LB model Explosion proof Overhead Crane:
1).Light structure,easy installation and maintenance;
2). Reasonable structure,strong bearing capacity ;
3). Low noise, soft starting and stopping ;
4). Safe and reliable operation ;
5). Low cost maintenance, long working life;
6). Strong box type,welding by machine hand.;
7). Wheels,wirerope drum,gears, couplings are processed by CNC manchine center, TOP quality control;
Attention:
Safety is the most important issue for cranes. To ensure the safety,It is prohibited to use the equipment in the combustible, explosive or corrosives environment.(Need explosion proof type for this).
Product Structure of Explosion-proof Single Beam Crane:

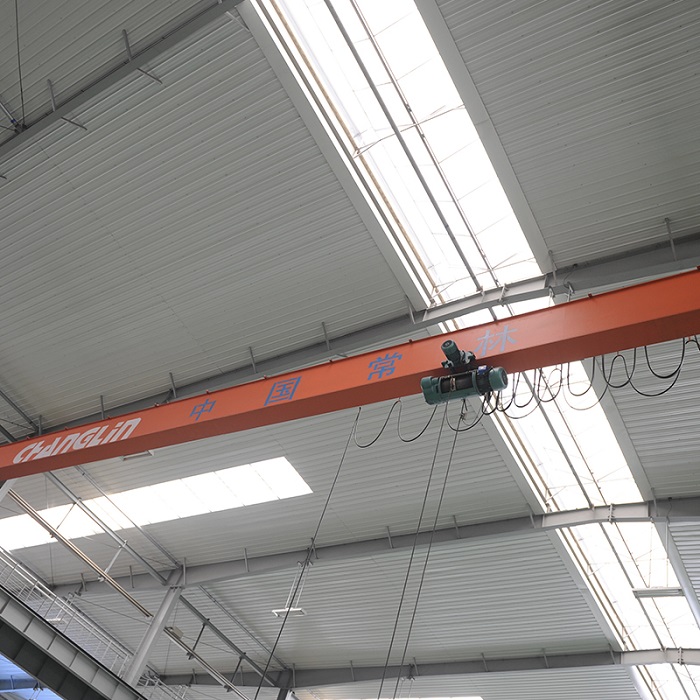

Photo of Explosion-proof Single Beam Crane:
Main Parts of Explosion-proof Single Beam Crane:
Certifications:
We have passed CE, GOST, SGS, and OHSAS & ISO9001:2000 international quality control, ISO14001:1996 environment and ISO9001:2001 health and safety certifications. We have a perfect quality-control system, a strict management system, and strong production capability and advanced testing measures to ensure the high production and high quality.
Main Product:
Henan Mine Crane meet the demands of factory, workshop, port, mining, waste disposal, goods dispatching, petrochemical, aerospace, military and other industries with universal bridge crane, overhead crane, gantry crane,goliath crane,frame crane,door crane,universal gantry crane, rubber tyre and rail mounted container gantry crane, mining grab crane, gantry crane, scissor type mobile hydraulic platforms and other types of hydraulic crane.
Company Introduction:
Henan Mine Crane Co.,Ltd is the largest industrial crane manufacturer in China since 2002. Main products are Electric hoist/Overhead crane/Gantry crane/Grab crane/Magnet crane/Ladle Lifting crane/Explosion proof crane/Rail Mounted Container Gantry Crane/European type Single Beam or Double Beam Overhead Crane and Gantry crane and hoist /Electric Winch,Cantilever Jib crane,Hydraulic Scissor Lift/Crane parts and components.
Henan Mine Crane company has 4500staffs,1420000m2 workshop area,3500sets of various advanced equipments,yearly sales 100000sets of crane and hoist, has obtained ISO,CE,EAC,GOST, etc certifications, cranes and hoists have been exported to 120countries.
In Pakistan,we have supplied our cranes to Abbas Steel Group,Almoiz industries Ltd,Fareed Engineering works,Tariq Glass Industies Ltd.
Besides Pakistan,we also supplied our cranes to India,Bangladesh,Philippines,Uzbekistan,Cameroon,Egypt,Ethiopia,Nigeria,Morocoo,Algeria.
If you are interested in our cranes,welcome you contact me any time
