Cabin Control QL Model Double Girders or Beams Electric Bridge traveling electromagnetic or magnetic or magnet crane with rotating or rotation hanging beam

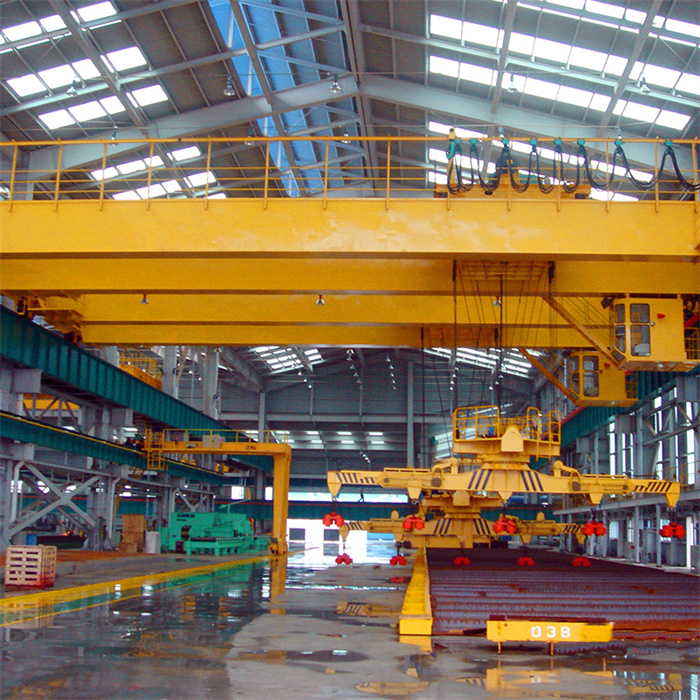

QL Double girder electric overhead traveling crane with rotating electromagnetic hanging beam consists of Main beam, end beam, Lifting trolley, crane long traveling mechanism, cabin and electric control system.

Send Inquiry

Product introduction:


QL Double girder electric overhead traveling crane with rotating electromagnetic hanging beam is one kind of heavy duty lifting equipment, it is widely used in steel mill plant indoor workshop to to lift long material,for example, steel billet,steel rebar bundles,steel billet bundles,etc.

QL Double girder electric overhead traveling crane with rotating electromagnetic hanging beam has reasonable and robust structure,light dead weight,high bearing capacity,low cost maintenance, superior performance,long service life.

Normal capacity are 5+5t,10+10t,16+16t, the span is 10.5m-31.5m, lifting height 6-30m, working class is A6,A7. Control model: cabin control,remote control,pendent line control.

Working voltage: 380V-50/60Hz3Ph,400V-50/60Hz3Ph,415V-50/60Hz3Ph,440V50/60HZ, 220V60HZ3Ph.



Technical parameters

Lifting weight(T) 5+5 7.5+7.5 10+10 16+16
Span(m) 10.5~31.5
Max Lifting height(m) 6~30
Working class A5 A6
Speed(m/min) Main Hoisting 12.9,15.66 10.4,15.3 8,8/0.8 7,7/0.7
Speed(m/min) Trolley Cross Traveling 43.8,44.6,42.4
Speed(m/min) Crane Long Traveling 90.7,101.4,112.5
Motor Type Heavy Duty Slipring Motor
Motor (Kw) Main Hoisting 26,30 34,45 42,55 63,90
Trolley Cross Traveling 2.5,4,6.3
Crane Long Traveling 2*4,2*5.5,2*7.5,2*8.5,2*11
Control mode Pendent line control,Remote control,Cabin control
Recommended Rail model 38kgs/m,43kgs/m,QU70
Power source 3Ph A.C 50Hz 380V



Mechanical parts:

Double welding box girder, beam deflection with DIN/FEM standard

Steel Material: Chinese standard Q235B,Q345B, and Q355E

Manual brush painting,One alkyd iron red primer painting, two alkyd orange enamel finish painting

Epoxy zinc-rich primer painting for one bottoms and two sides of 120μm thick, to achieve a long lifespan, beautiful appearance and good luster.

The girder and end beam are connected together by high strength bolts to ensure the structure strength and precision of the whole machine.
