Electric Hydraulic Type Bucket or Grapple

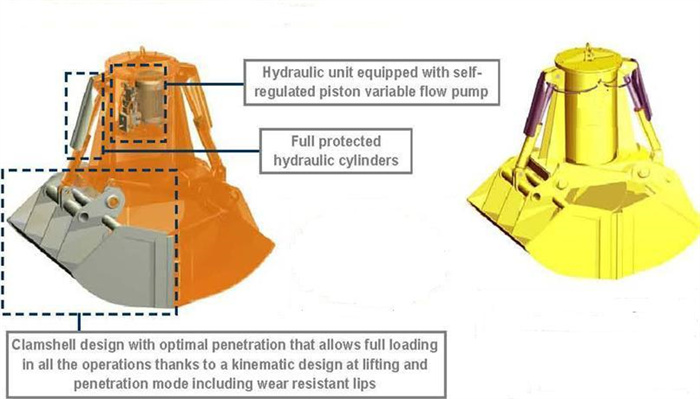

The electro- hydraulic grabs become open and close with hydraulic cylinders. The drive- unit for this is an electro- motor with hydraulic pump. The drive- unit of the grab needs an electrical power- supply from the crane over a cable. Over this cable the grab gets also his commands. For the cable- guide is a additional equipment on the crane- jib necessary.

Send Inquiry

Features：
1.Handling flour, corn and beans Products etc

2.Powered by a Electric Motor of High Performance

3.Compact Structure with Built-in Hydraulic System

4.Remote Control or Switch hooked to the Electric Circuit.

Technical Detail：

Model	Crane Capacity	Volume	Working pressure	Power	Disc	Closing time	Open time	Grab Self Weight		Grab Size
Model	Crane Capacity	Volume	Working pressure	Power	Disc	Closing time	Open time	Open type	Close type	A	B	C
	t	m³	Mpa	kw	II	s	s	t	t	mm
YZ0506	5	0.63	16	15	5	12	8	1.31	1.50	1900	1530	2500
YZ0507	5	0.75	16	15	6	12	8	2.4	2.57	2285	1170	2750
YZ0608	6.3	0.8	16	18.5	6	13	9	2.42	2.6	2350	1810	2810
YZ0610	6.3	1.0	16	18.5	6	13	9	2.8	3.05	2560	1920	2950
YZ1015	10	1.5	16	22	6	14	10	4.35		2660	2300	3500
YZ1020	10	2.0	16	22	6	14	10	4.65		2750	2500	3680
YZ1630	16	3.0	16	27	6	14	10	7.12		2950	2520	3740
YZ2040	20	4.0	16	30	8	15	9	8.50		3650	2540	4270

electric hydraulic double disc grab5
