Product introduction:

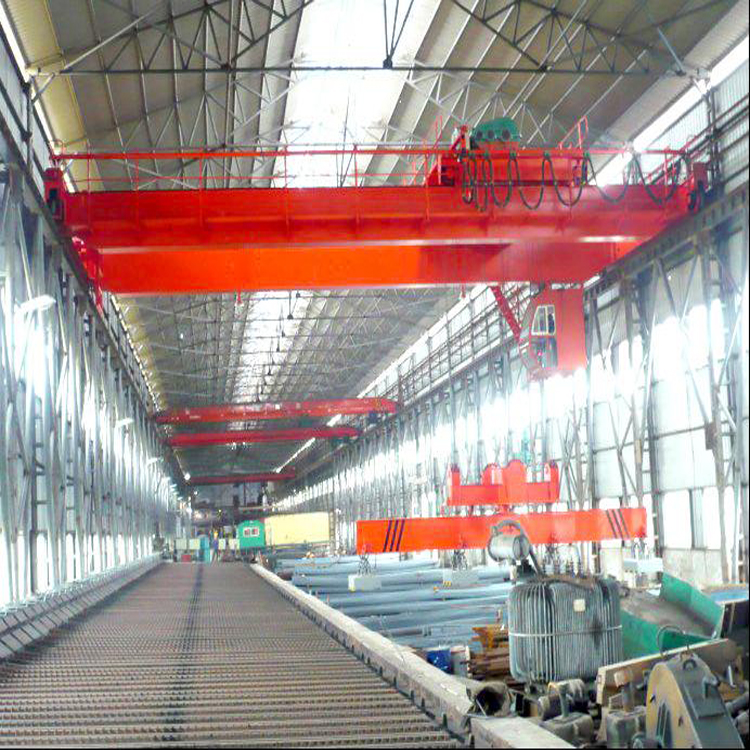

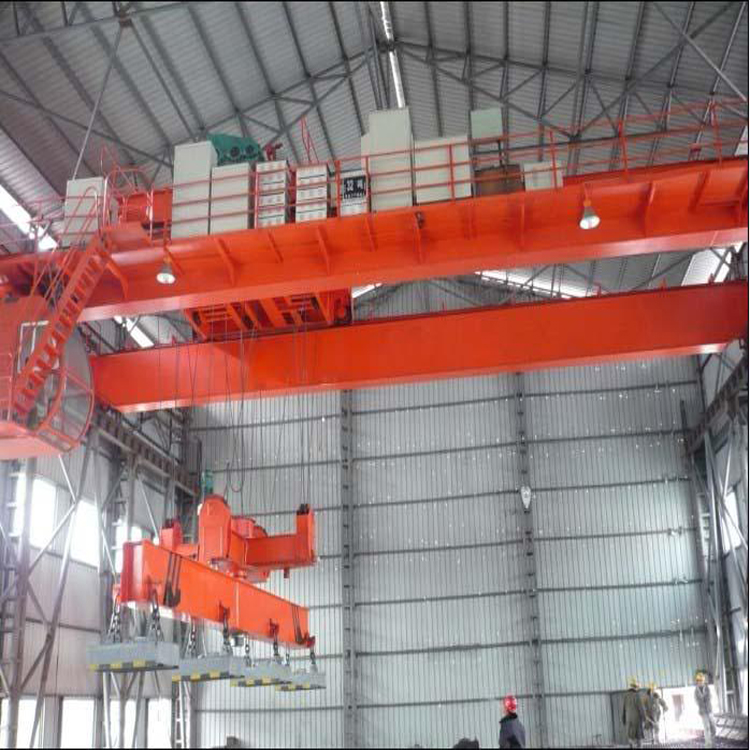

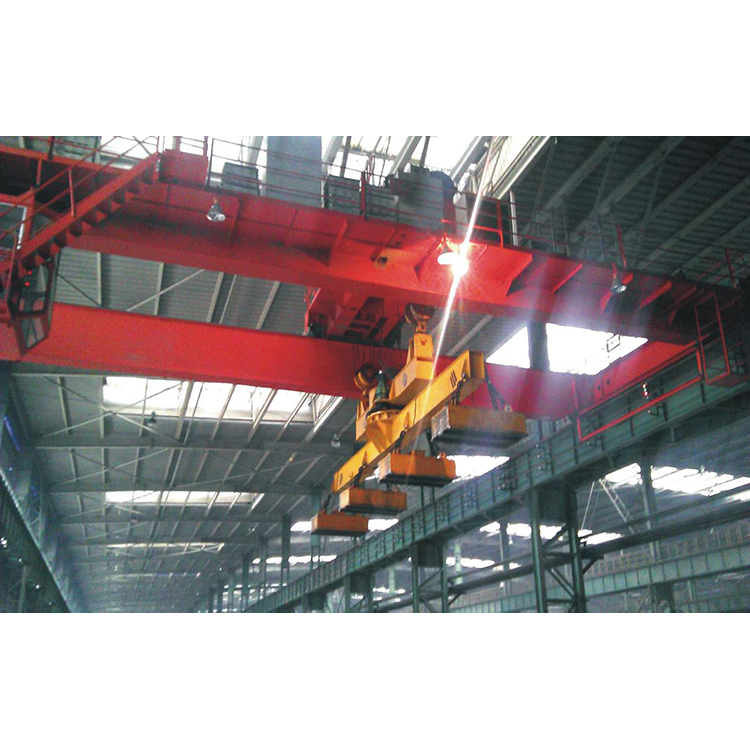

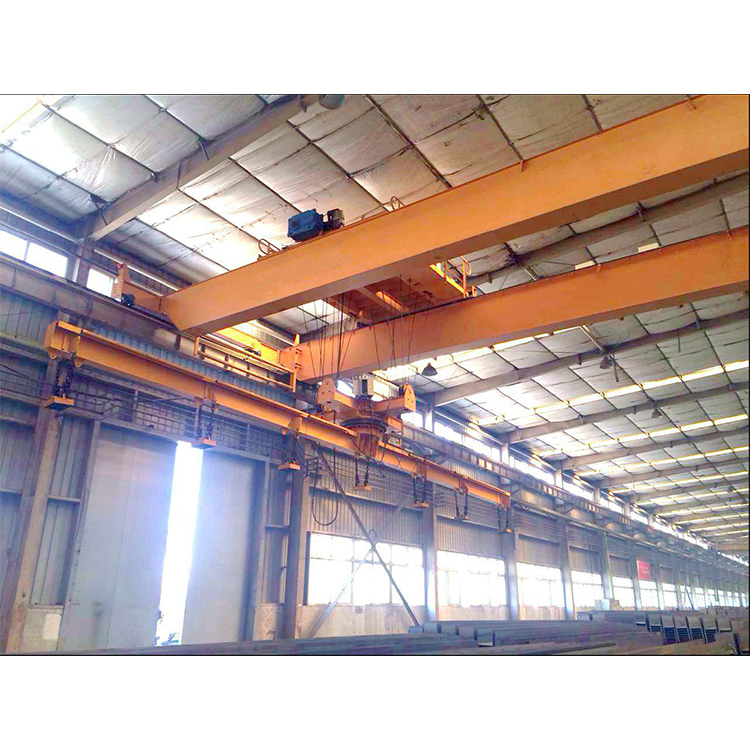

QL Double girder electric overhead traveling crane with rotating electromagnetic hanging beam consists of Main beam, end beam, Lifting trolley, crane long traveling mechanism, cabin and electric control system.

QL Double girder electric overhead traveling crane with rotating electromagnetic hanging beam is one kind of heavy duty lifting equipment, it is widely used in steel mill plant indoor workshop to to lift long material,for example, steel billet,steel rebar bundles,steel billet bundles,etc.

QL Double girder electric overhead traveling crane with rotating electromagnetic hanging beam has reasonable and robust structure,light dead weight,high bearing capacity,low cost maintenance, superior performance,long service life.

Normal capacity are 5+5t,10+10t,16+16t, the span is 10.5m-31.5m, lifting height 6-30m, working class is A6,A7. Control model: cabin control,remote control,pendent line control.

Working voltage: 380V-50/60Hz3Ph,400V-50/60Hz3Ph,415V-50/60Hz3Ph,440V50/60HZ, 220V60HZ3Ph.

Send Inquiry

Lifting weight(T)		5+5	7.5+7.5	10+10	16+16
Span(m)		10.5~31.5
Max Lifting height(m)		6~30
Working class		A5 A6
Speed(m/min)	Main Hoisting	12.9,15.66	10.4,15.3	8,8/0.8	7,7/0.7
Speed(m/min)	Trolley Cross Traveling	43.8,44.6,42.4
Speed(m/min)	Crane Long Traveling	90.7,101.4,112.5
Motor Type		Heavy Duty Slipring Motor
Motor (Kw)	Main Hoisting	26,30	34,45	42,55	63,90
	Trolley Cross Traveling	2.5,4,6.3
	Crane Long Traveling	24,25.5,27.5,28.5,2*11
Control mode		Pendent line control,Remote control,Cabin control
Recommended Rail model		38kgs/m,43kgs/m,QU70
Power source		3Ph A.C 50Hz 380V
