Composition:

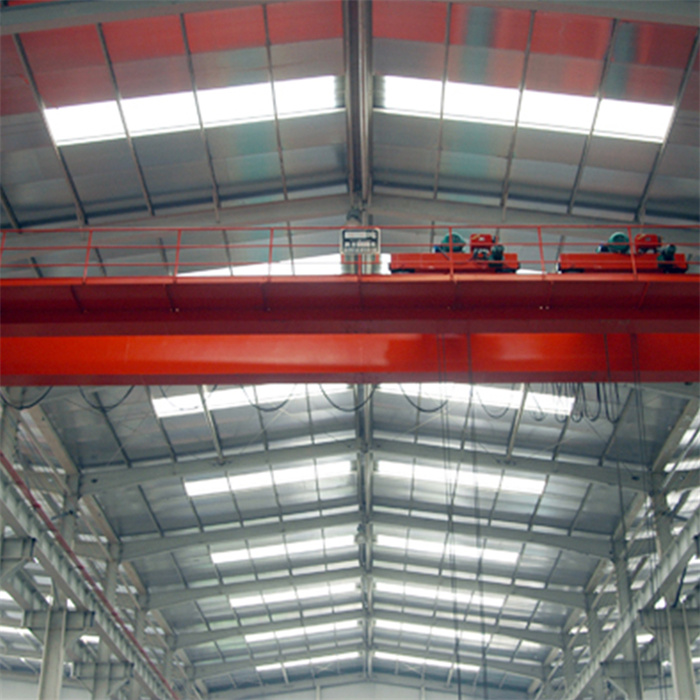

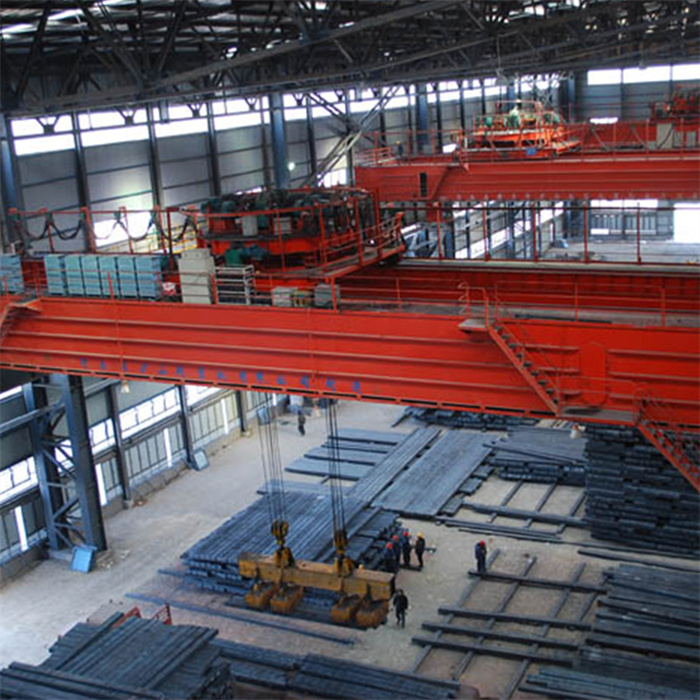

It has the strong and permanent magnetic force to lift materials with high efficiency. It consists of a bridge, crane traveling mechanism, trolley, electric equipment, and electromagnetic chuck. Both traveling mechanism and trolley motors are special motors for canes, large starting torque, and loading capacity.
Detailed Specifications:
lifting capacity:5t+5t to 20+20t
span:10.5~31.5
lifting height: Max16m
working duty:A5~A7
working temperature:-25°C~+40°C.
(These also can be specially designed as clients’ requirements)
Advantages:
1. Lightly and ingeniously structured
2. easy for application
3. Strong magnetic attraction power
4. Safe in handling

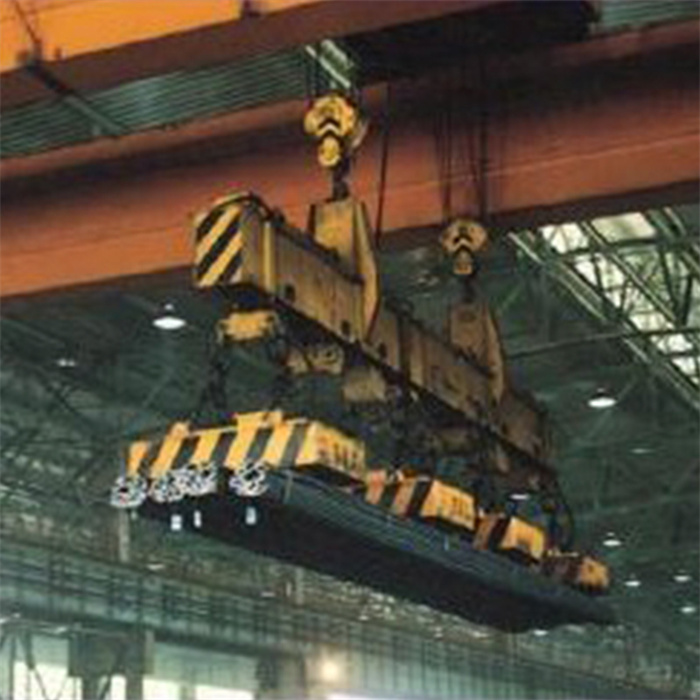

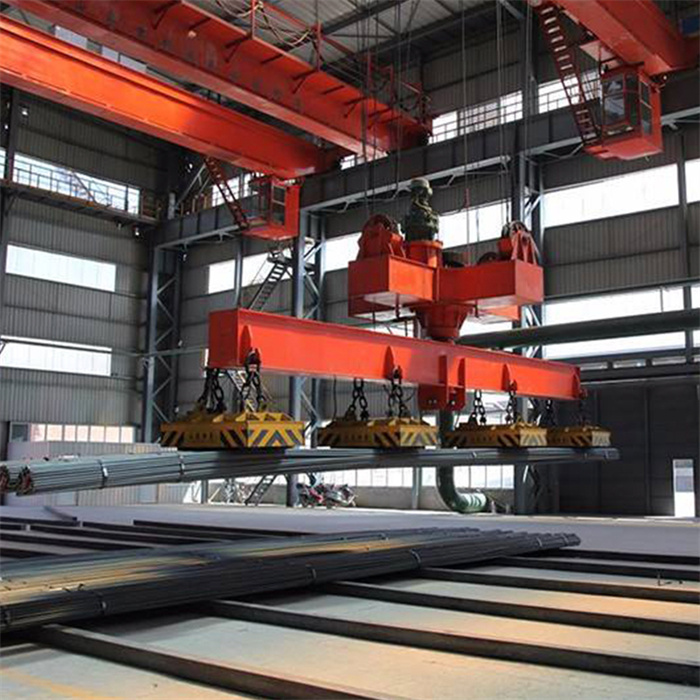

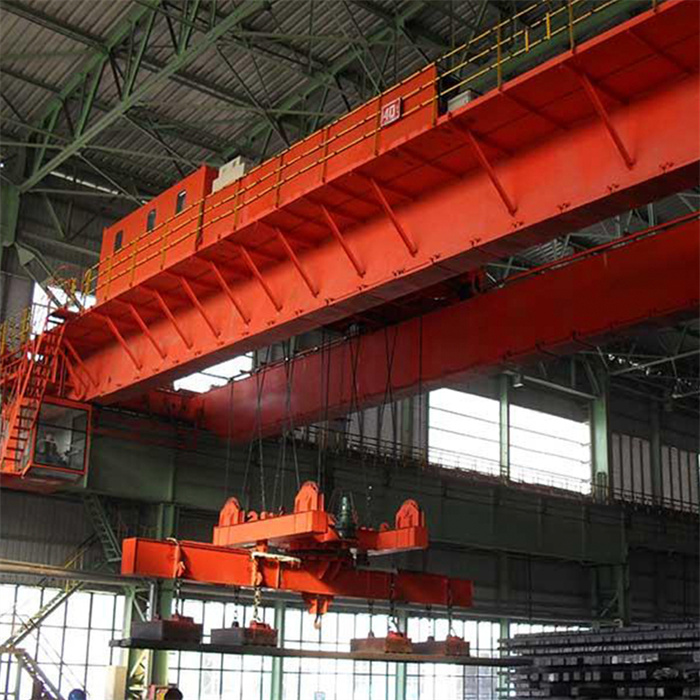

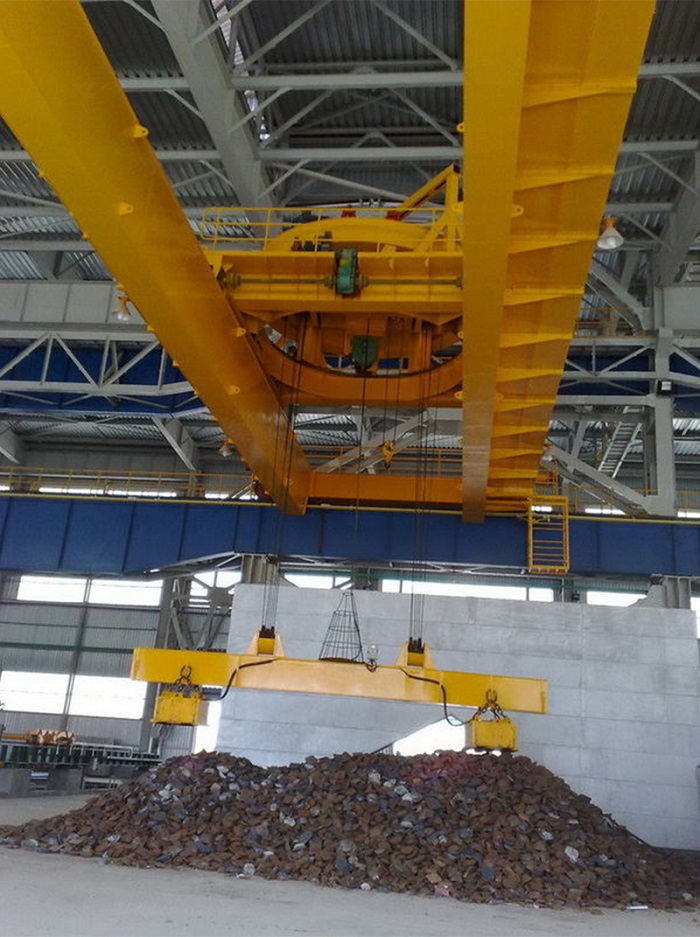

For higher application requirements, an extractable and 360-degree electromagnetic beam suspending system can be provided.
Mechanical parts
Double welding box girder, beam deflection with DIN/FEM standard
Steel Material: Chinese standard Q235B and Q345B
Trolley rail is made of high strength hot rolled flat steel (16 Mn)
Epoxy zinc-rich painting for one bottoms and two sides of 120μm thick, to achieve a long lifespan, beautiful appearance, and good luster
The girder and end beam are connected together by high strength bolts to ensure the structure strength and precision of the whole machine
The end beams are equipped with flat wheel or double rim wheels, anti-friction bearings, buffer blocks, and derailment preventing end plate
The maintenance walkway is located on one side of the main girder, consisting of a flower pattern plate, 1050meters handrail.
