Design, production, and inspection carry out the last issued relevant national standard, equivalently adopts some foreign criteria including FEM. DIN and IEC. Compared with the general QD bridge crane, its weight is reduced by about 15~30%, the maximum wheel pressure is reduced by about 10~35%, which can the refreshments of crane for factory building structure and reduce production cost. As the core component of driving mechanism, reducer gear pair with the hard tooth surface and high accuracy, together with steel reel, forged wheel and variable-frequency speed regulation system, which makes this type of crane become renewal product of traditional general bridge crane and applied in the industry of machinery production, assembling, petrochemicals,warehouse logistics, electric power construction, paper making, and railways.

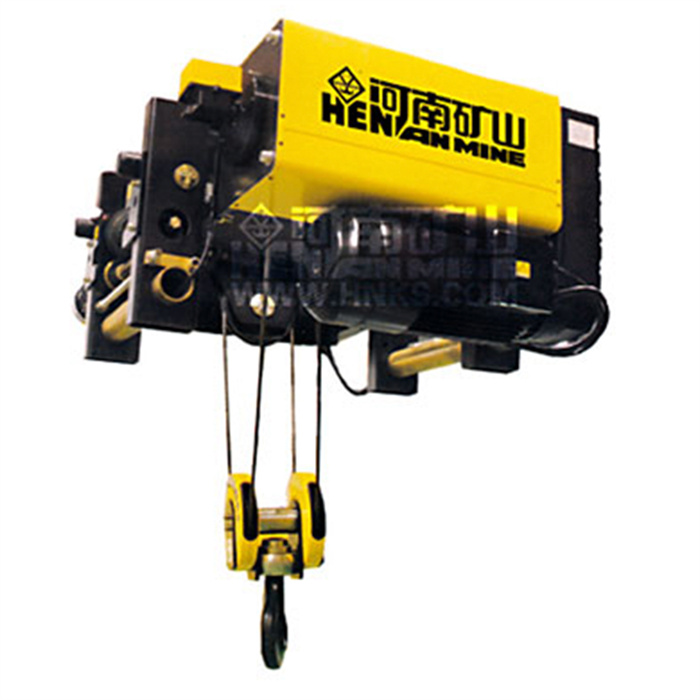

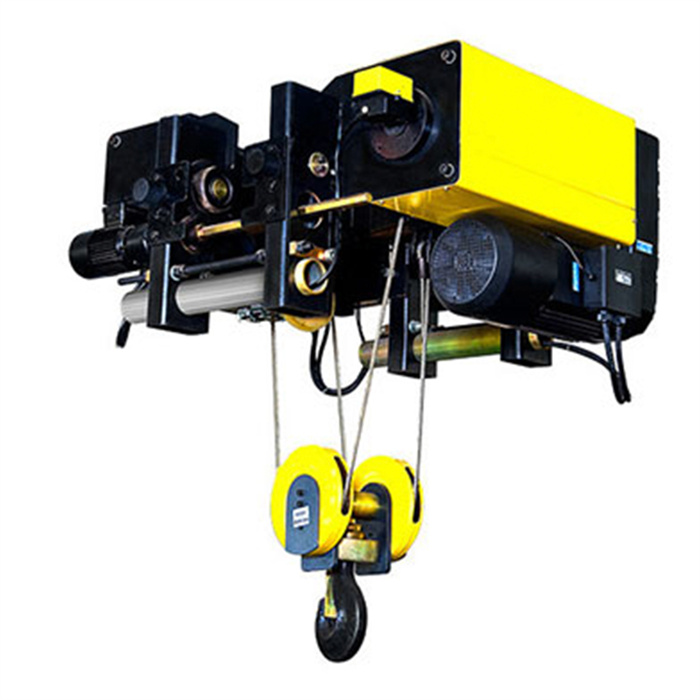

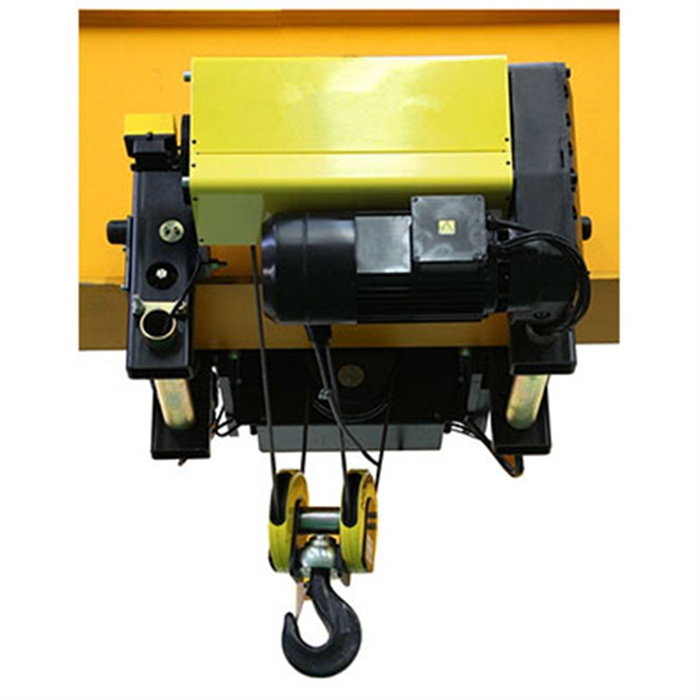

European hoist is a new kind of low headroom product. According to European standard of FEM and DIN, the product is researched and developed on the basis of general planning the lift capacity, basic structure, mechanism working system and performance parameters, and modular design idea. It applies international general structure with the characters of compact structure, high space utilization, reliability, large working scope, smooth travelling to realize precise position to load, long life span, and low maintenance expenses. We believe the product is your best choice.

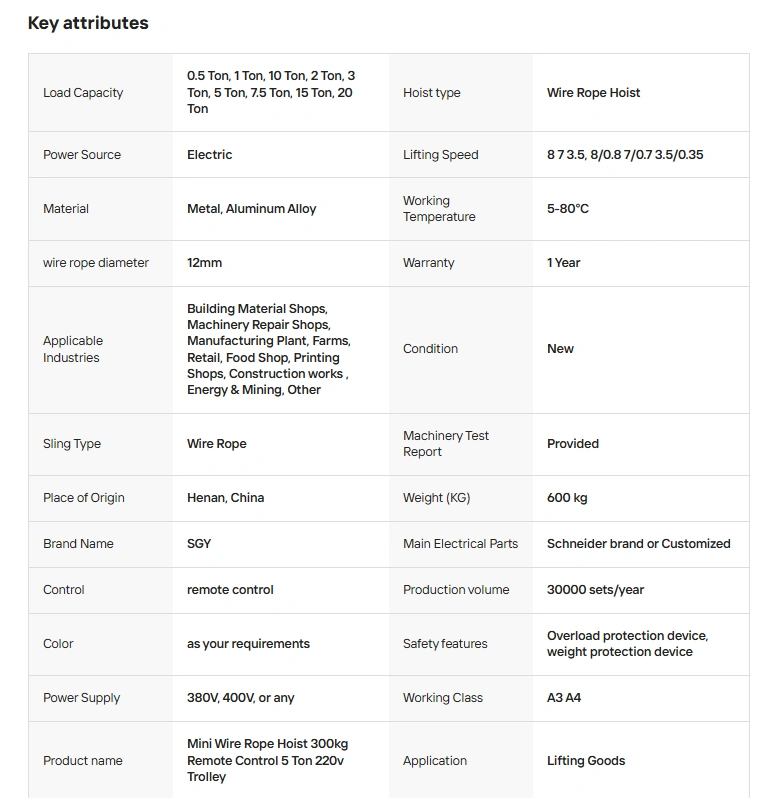

Parameter:
Lifting capacity 1-20 ton
Shell: aluminum alloy
Working group: M3-M7
Travelling speed:5-20m/min
Hoisting height:6/9/12/18m
Hiosting speed:0.6/4.0m/min-1.6/10m/min
Brake: Double-disk electromagnetic brake
Control model: pendent control or remote control
Safety System:
1.Weight overload protection device
2.Top quality durable polyurethane buffer
3.Crane traveling limit switch
4.Low voltage protection function
5.Emergency stop system
6.Current overload protection function
