High Lifting Speed JK Model Wire Rope or wirerope Electric Winch

High Lifting Speed JK Model Wire Rope or wirerope Electric Winch

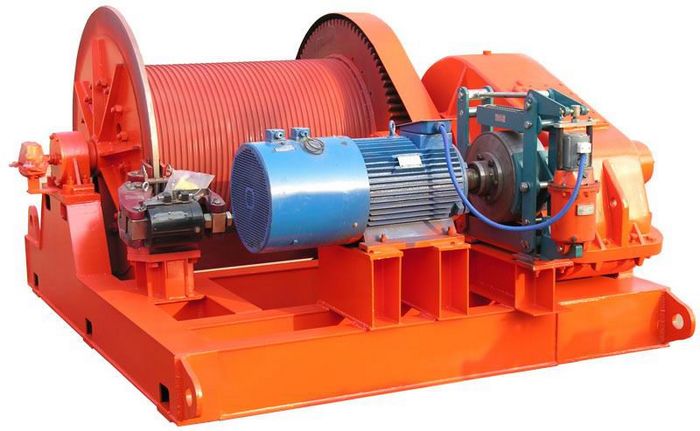

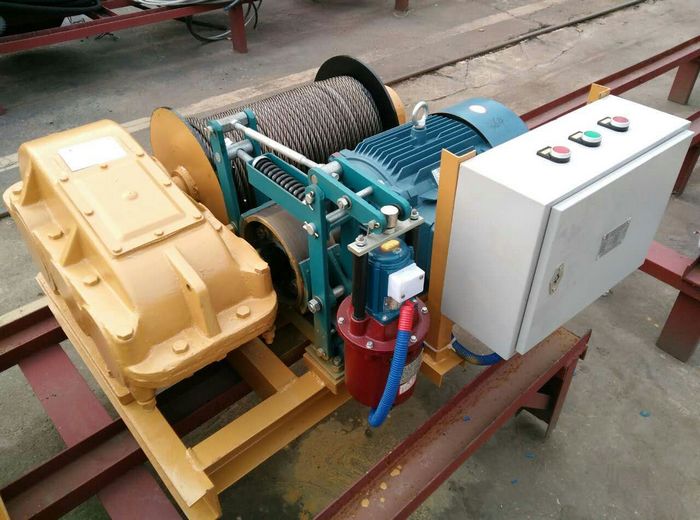

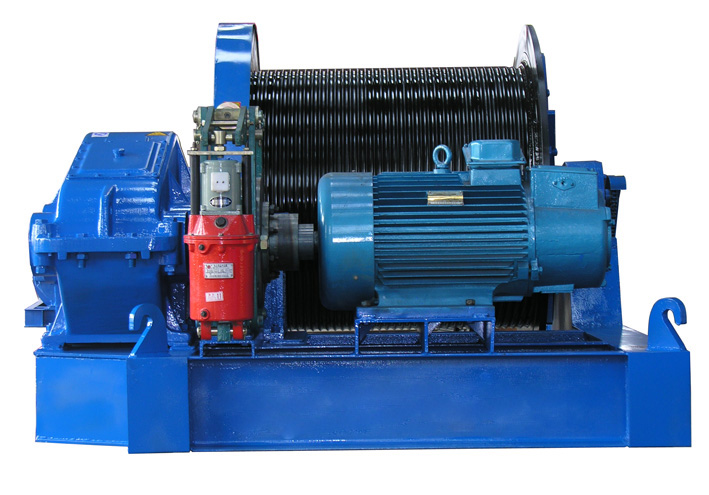

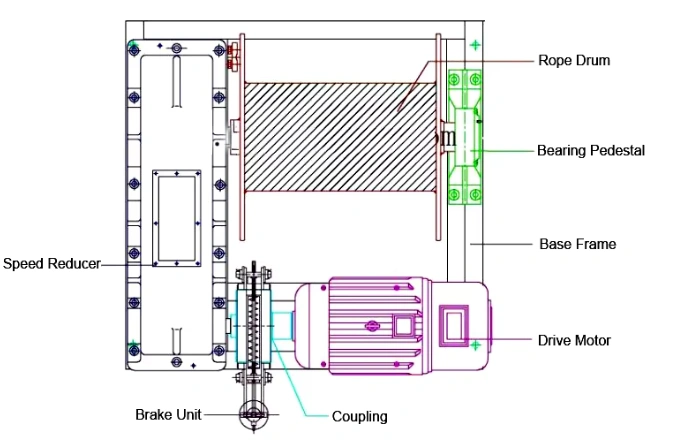

Electric winch is consisting of electric motor, drum, brake, steel wire rope, electrical control system and steel structure.

Electric winch is can be used alone or as a component of machinery such as lifting, road construction and mine hoisting or pull or lift heavy objects in road and bridge projects, civil construction, mining area, factory, port, marine, e.g,

Installation and disassembly of all kinds of large or super large size steel structure and machinery equipments, reinforce concrete, drag ships, the features are orderly wire rope, safe and reliable lifting, speed is usually more than 20m/min.

Send Inquiry

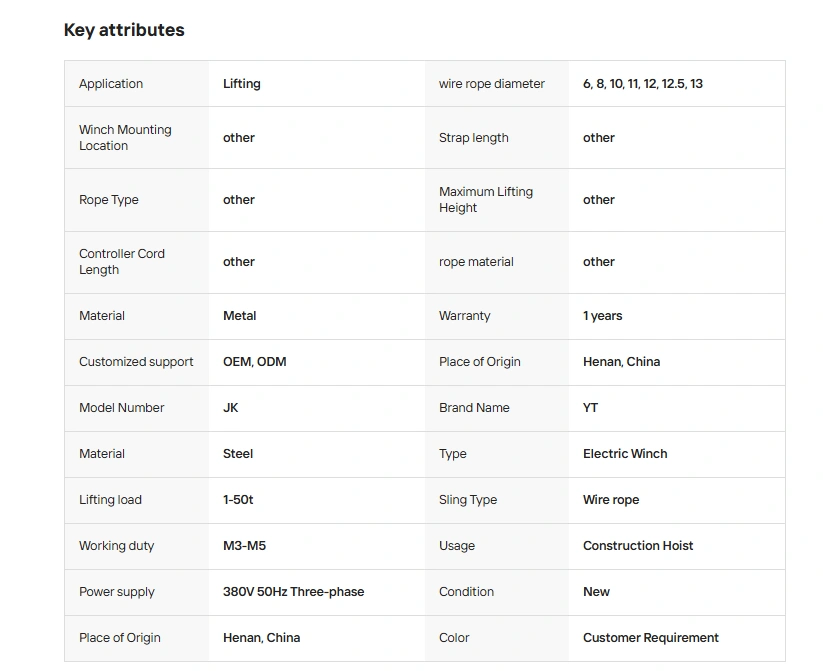

Winch Capacity: 0.5-20t
Lifting height: customized
Lifting speed: singlespeed or inverter control lifting speed
Voltage: 220v/380v/400v/415v, 440v, 50 Hzor 60 Hz3phase.
Control Model: Push button or cam control or remote control
Main Electrical Parts Brand: Siemens or Schneider electrical system
Current overload protection function, voltage lower protection function.

Design standards

Round strand wire rope GB/T20118-2006

Crane design standard GB3811-2011

Construction winch testing standards and methods GB6947-1986

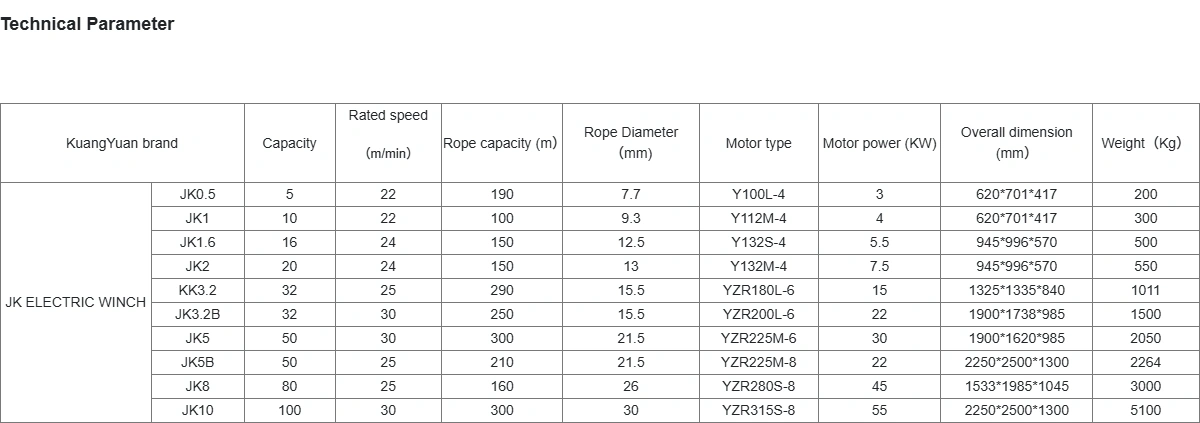

Technical parameter

KuangYuan brand		Capacity	Rated speed （m/min）	Rope capacity (m）	Rope Diameter （mm)	Motor type	Motor power (KW)	Overall dimension (mm）	Weight（Kg）
JK ELECTRIC WINCH	JK0.5	5	22	190	7.7	Y100L-4	3	620701417	200
	JK1	10	22	100	9.3	Y112M-4	4	620701417	300
	JK1.6	16	24	150	12.5	Y132S-4	5.5	945996570	500
	JK2	20	24	150	13	Y132M-4	7.5	945996570	550
	KK3.2	32	25	290	15.5	YZR180L-6	15	13251335840	1011
	JK3.2B	32	30	250	15.5	YZR200L-6	22	19001738985	1500
	JK5	50	30	300	21.5	YZR225M-6	30	19001620985	2050
	JK5B	50	25	210	21.5	YZR225M-8	22	225025001300	2264
	JK8	80	25	160	26	YZR280S-8	45	153319851045	3000
	JK10	100	30	300	30	YZR315S-8	55	225025001300	5100
