High Technique Cabin Control Double Beams or Girders Rail Mobile Container Gantry crane

Description

Rail mounted container gantry crane is composed with double girder frame, vertical legs, crane traveling end truck, and the top running trolley and special lifting spreader for lifting 20’, 40’ and 45’ container.

This Rail mounted container gantry crane is also called RMG, which is special for lifting and transferring container in container yard and railway port. The legs are designed vertical to ground only for allowing containers to go through legs from span to cantilever.

Photo:

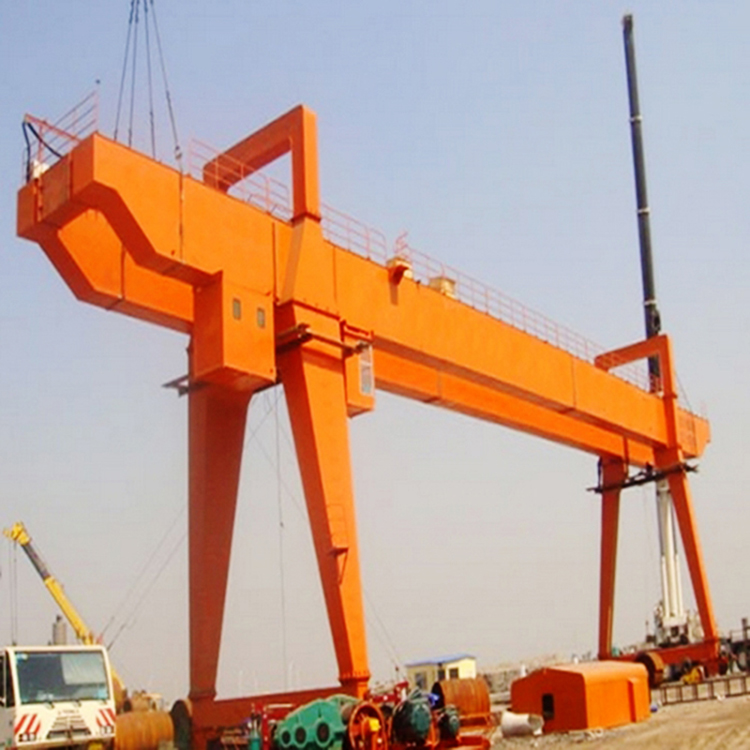

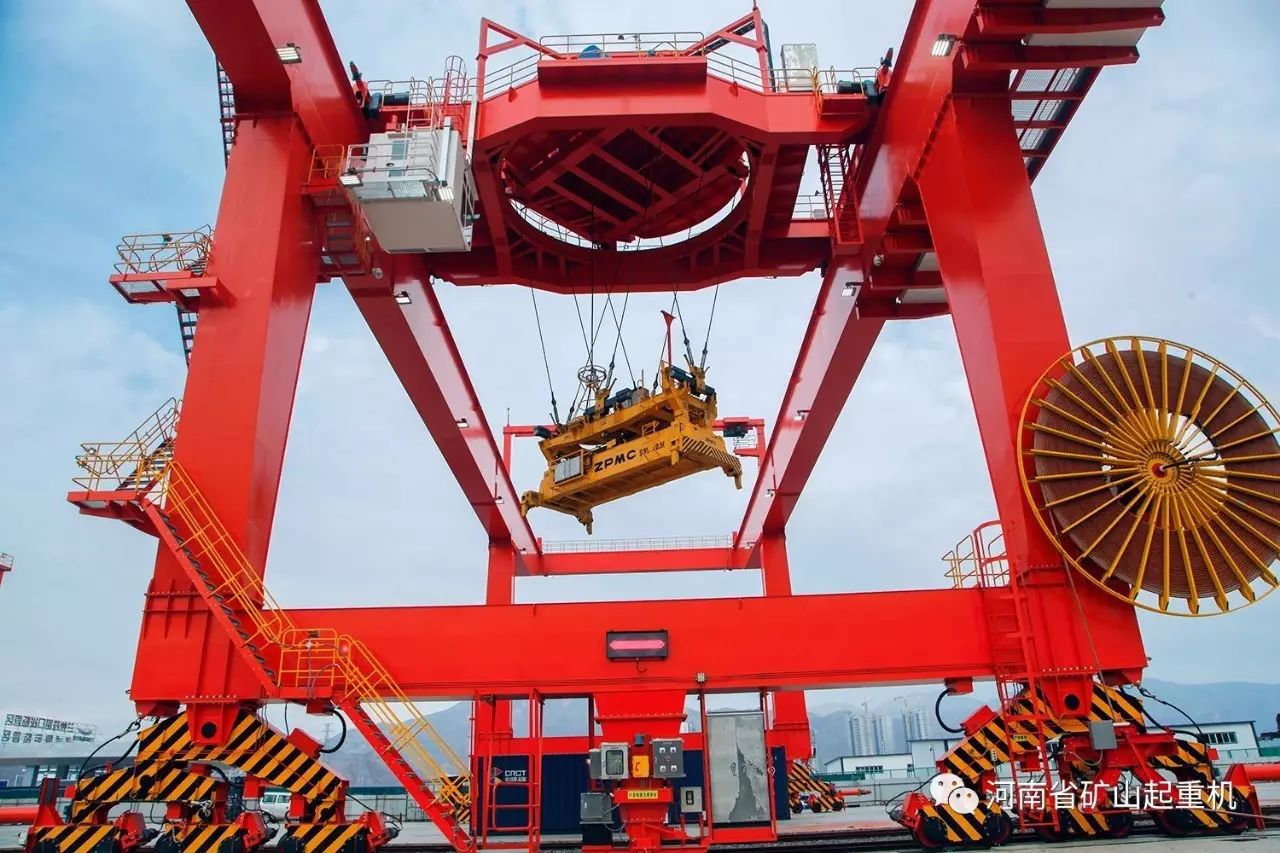

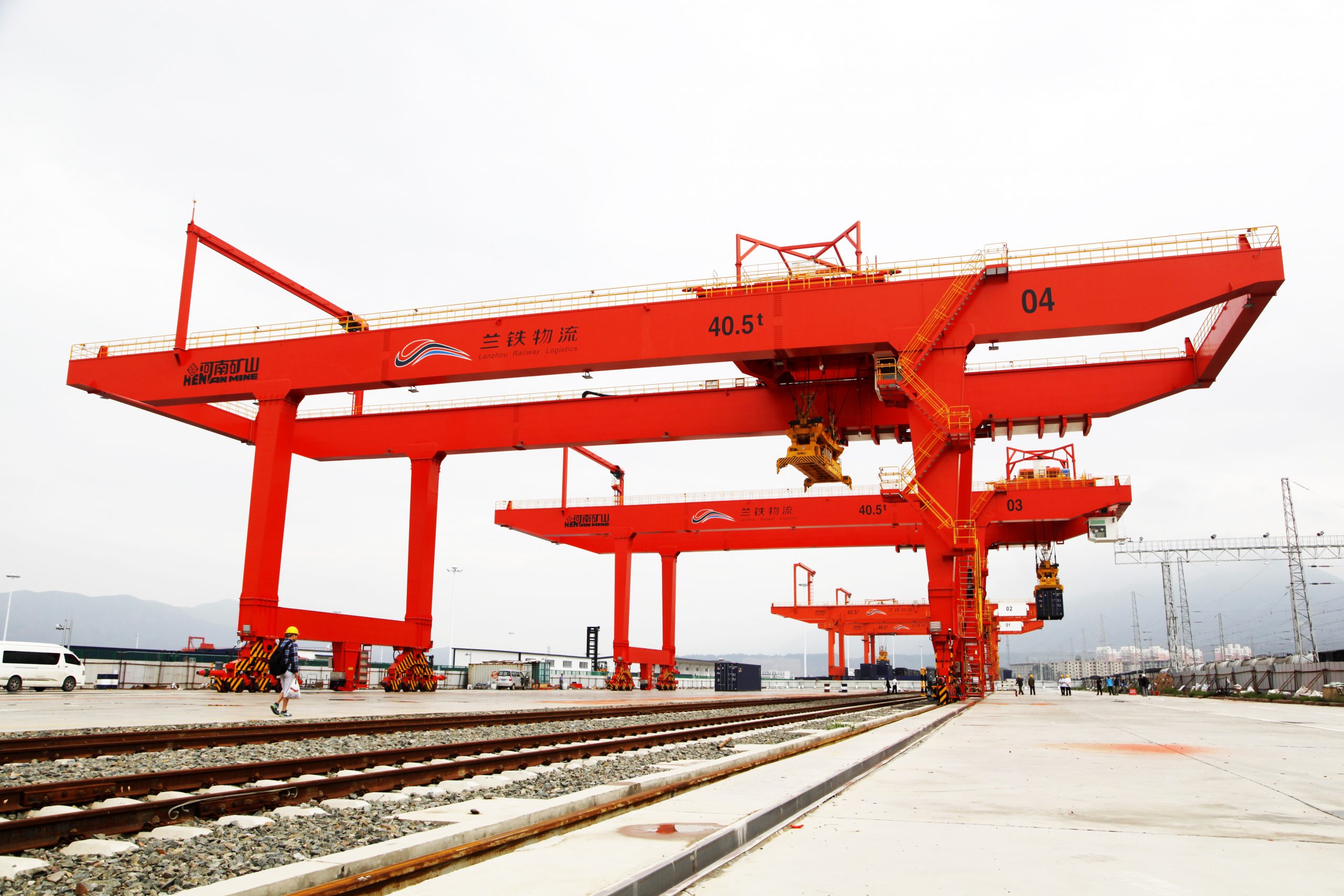

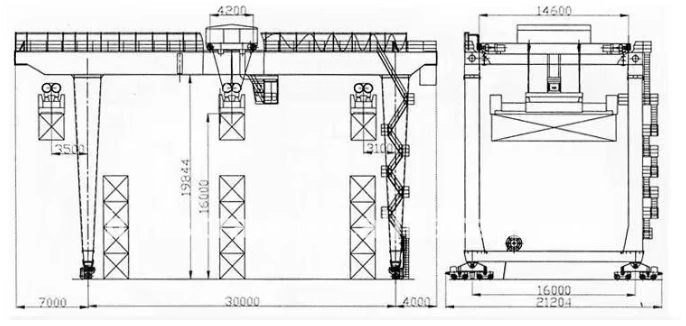

container gantry crane

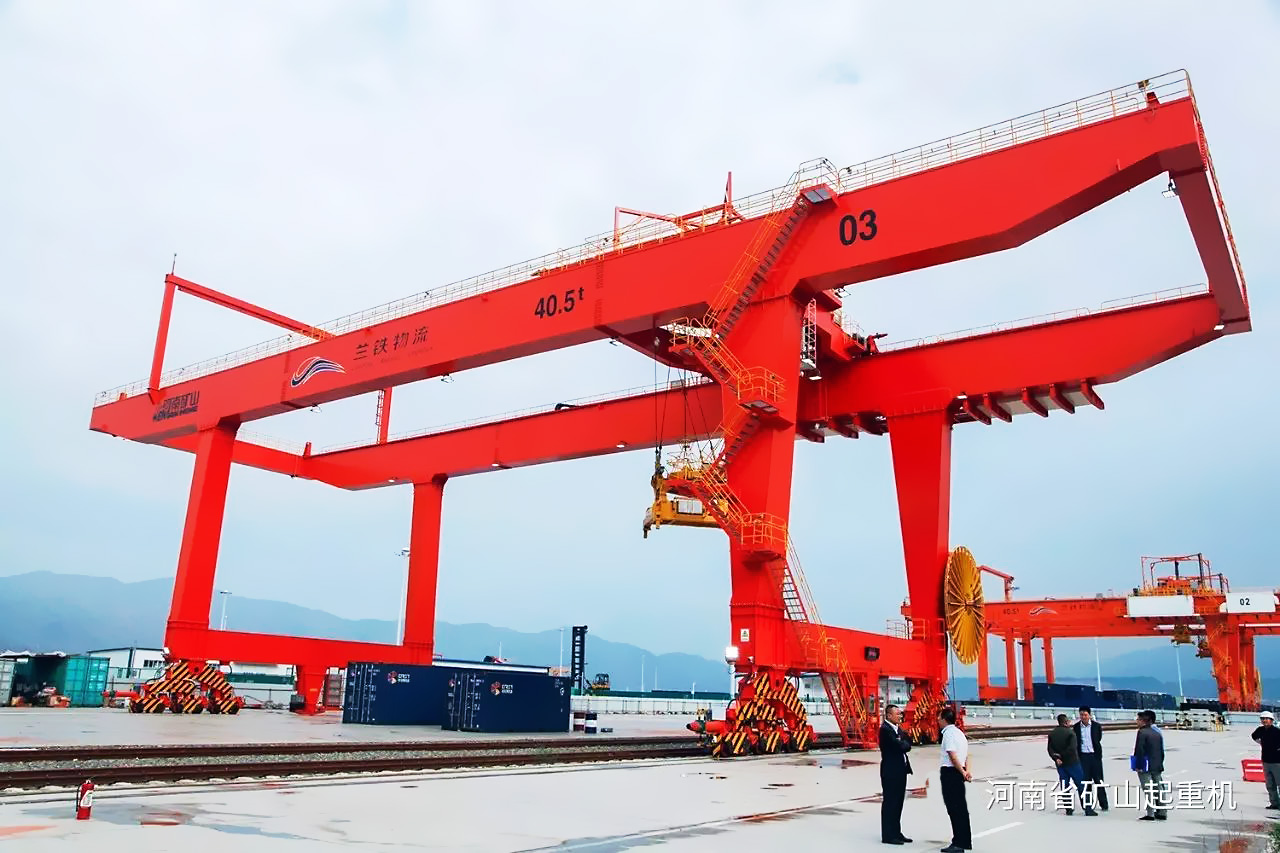

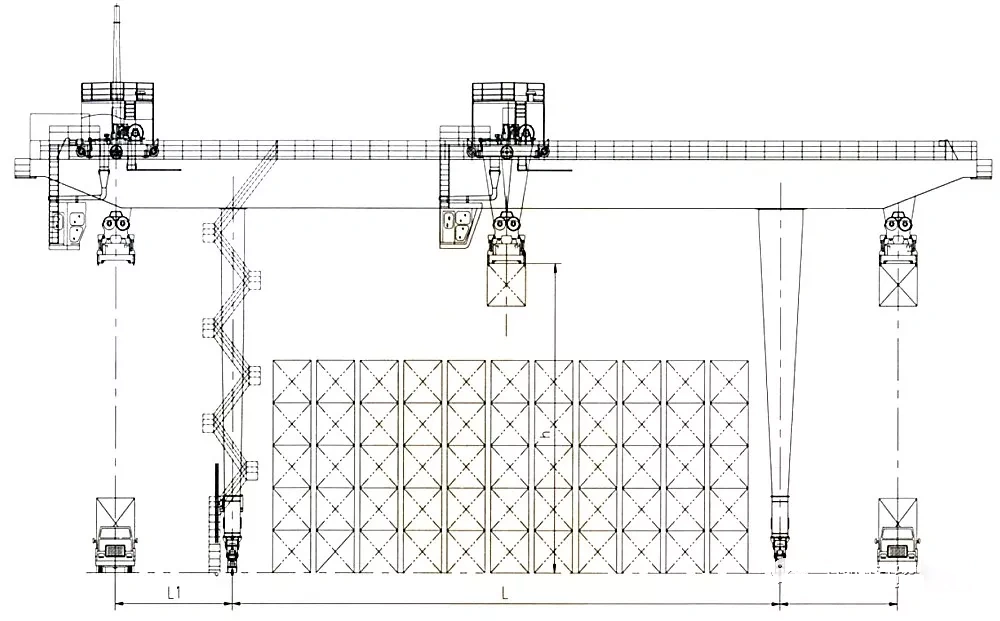

container gantry crane

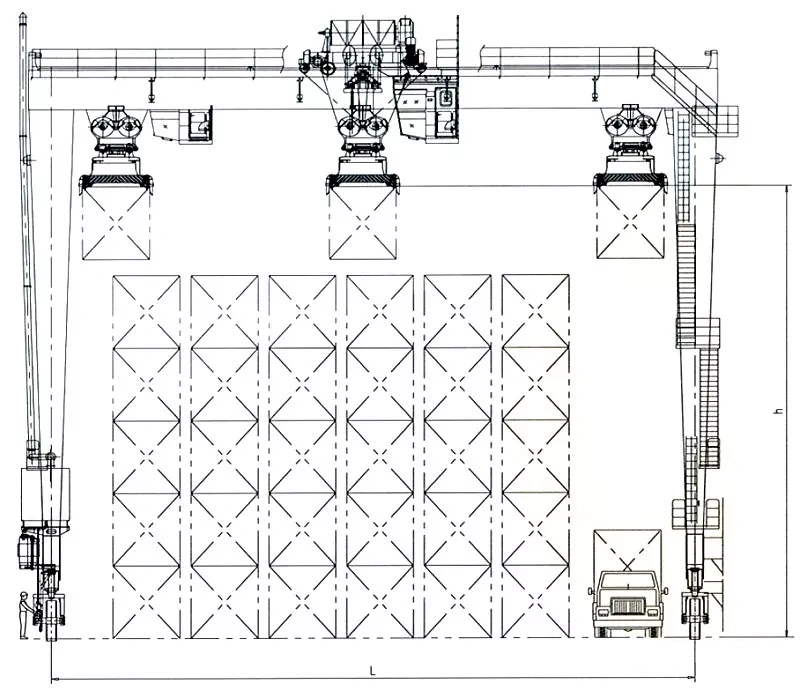

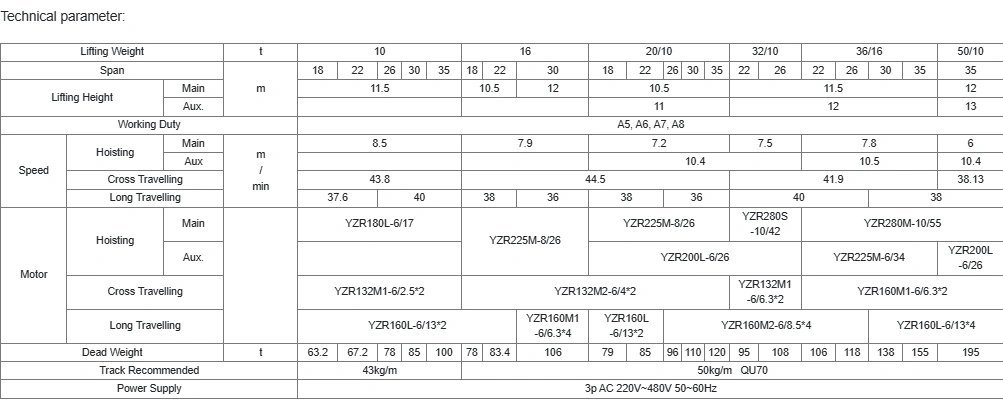

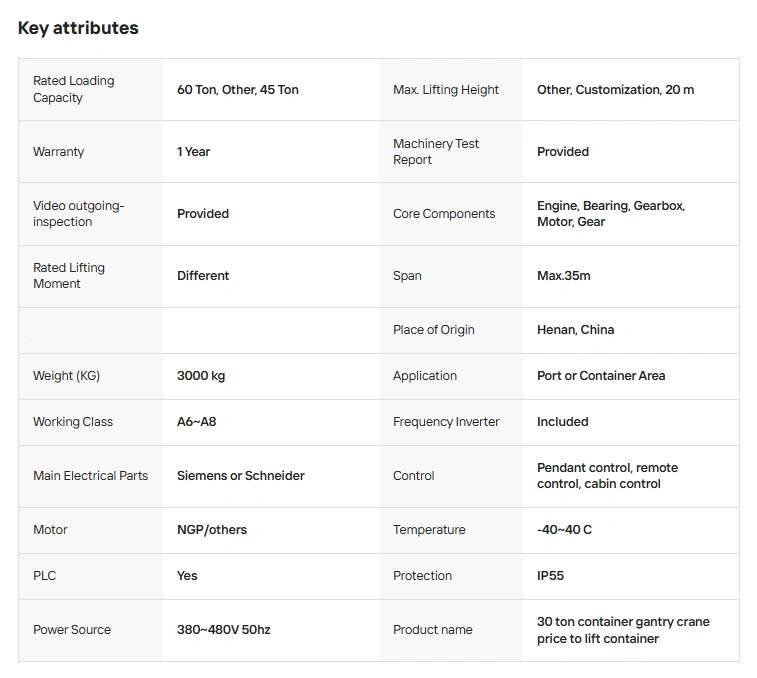

Technical parameter:

Lifting Weight t 10 16 20/10 32/10 36/16 50/10
Span m 18 22 26 30 35 18 22 30 18 22 26 30 35 22 26 22 26 30 35 35
Lifting Height Main 11.5 10.5 12 10.5 11.5 12
Aux. 11 12 13
Working Duty A5, A6, A7, A8
Speed Hoisting Main m
/
min
8.5 7.9 7.2 7.5 7.8 6
Aux 10.4 10.5 10.4
Cross Travelling 43.8 44.5 41.9 38.13
Long Travelling 37.6 40 38 36 38 36 40 38
Motor Hoisting Main YZR180L-6/17 YZR225M-8/26 YZR225M-8/26 YZR280S
-10/42
YZR280M-10/55
Aux. YZR200L-6/26 YZR225M-6/34 YZR200L
-6/26
Cross Travelling YZR132M1-6/2.5*2 YZR132M2-6/4*2 YZR132M1
-6/6.3*2
YZR160M1-6/6.3*2
Long Travelling YZR160L-6/13*2 YZR160M1
-6/6.3*4
YZR160L
-6/13*2
YZR160M2-6/8.5*4 YZR160L-6/13*4
Dead Weight t 63.2 67.2 78 85 100 78 83.4 106 79 85 96 110 120 95 108 106 118 138 155 195
Track Recommended 43kg/m 50kg/m   QU70
Power Supply 3p AC 220V~480V 50~60Hz

Send Inquiry

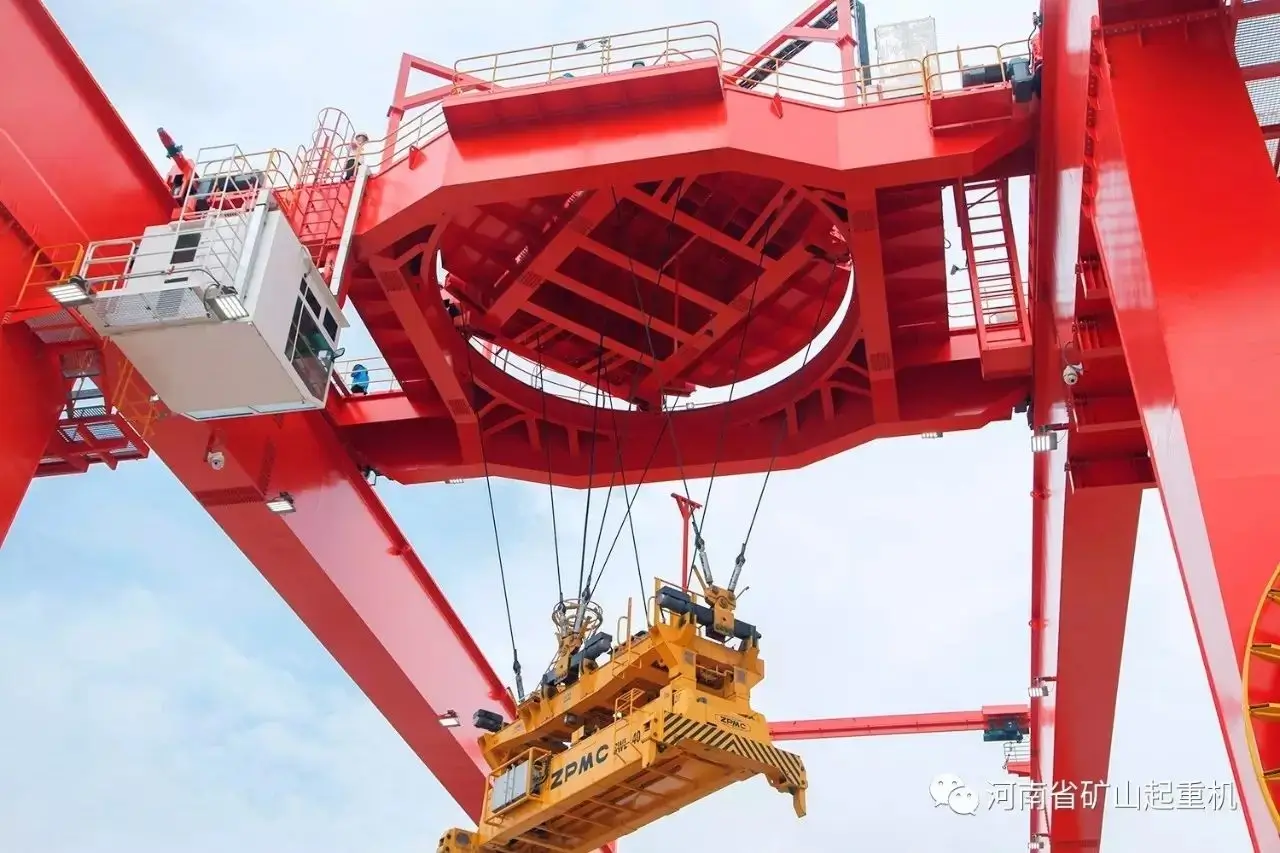

Cart is designed as rotary type, which is stable for loading and unloading in every direction. But the cart could also be designed as non-rotary type with rotary spreader to realize container rotation.

According to the heavy duty working condition, this model crane is designed as all-weather working condition, with M6~M8(ISO) working duty and fast speeds with frequency inverter. The working temperature is from -40℃ to 40℃, there is no problem to use in low temperature environment.

This model gantry crane is designed under GB regulation, passed ISO, CE certification.

Mechanical parts

  1. Double welding box girder, beam deflection with GB/DIN/FEM standard
  2. Steel Material: Chinese standard Q235B and Q345B/Q345E
  3. Trolley rail is made of high strength hot rolled flat steel (16 Mn)
  4. Epoxy zinc-rich painting for one bottoms and two sides of 120μm thick, to achieve a long lifespan, beautiful appearance and good luster
  5. The girder and end beam are weldedtogether to ensure the structure strength and precision of the whole machine
  6. The end beams are equipped with flat wheel or double rim wheels, anti-friction bearings, buffer blocks and derailment preventing end plate
  7. Maintenance walkway is located on one side of the main girder, consisting of flower pattern plate, 1050meters handrail
