The main parameters:
1.Capacity: 5,10,16/3.2,20/5,32/5,50/10T, up to 450/80T
2.Span: 10.5-31.5 m or more
3.Lifting height: 6-30 m or more
4.Lifting speed: 0.9-15 m/min or more
5.Cross traveling: 5~45 m/min or more
6.Long traveling: 20~92 m/min or more
7.Widely used in: Factories, warehouses, etc.
Description

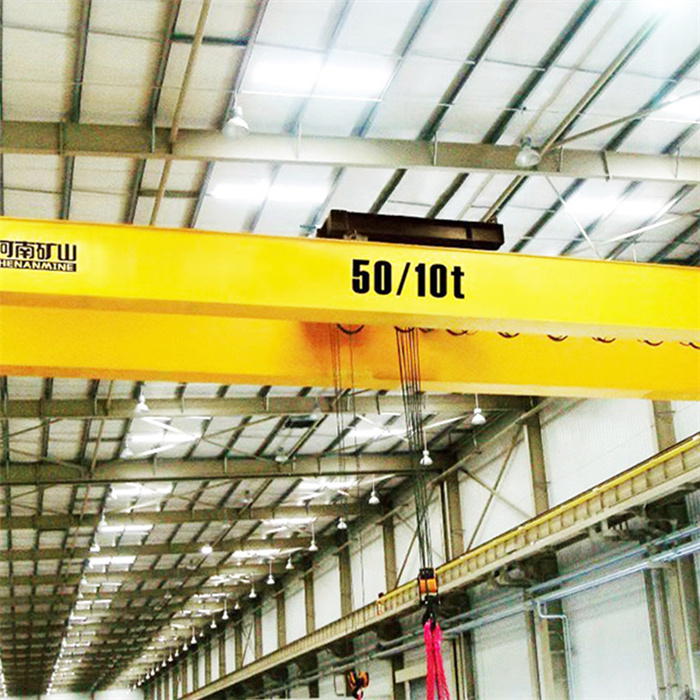

Double girder overhead crane is composed with double girder frame, crane traveling end truck, and the top running trolley with lifting and travelling device. The motors, reducers and brakes in this model crane lifting and traveling mechanism are separate parts, which makes the crane higher working duty from A3~A8 (ISO) and faster lifting and traveling speeds.
The cranes standard speeds are adjustable, which allow the crane adjust its speed under 2~3 grades. The crane could also be equipped with frequency inverter, which makes the crane speeds adjusted under 10 grades speeds. It could move very slow which makes it possible to do very accurate works.
This model overhead crane is designed under GB regulation, passed ISO, CE certification.
The crane lifting and travelling speeds are steady and accurate.
Technical parameters
| KSSL Double Beam Bridge Crane |
| Lifting Weight (t) |
5 |
10 |
16 |
20 |
25 |
32 |
40 |
50 |
| Working Level |
FEM 2M A5 |
| Lifting Height (m) |
6/9/12/15/18/24 |
| Lifting Speed (m/min) |
5/0.8 |
4/0.67 |
0-4.9 |
0-3.2 |
| Span(m) |
10.5-31.5 |
| Operating Mode |
Groud manual switch/Remote control/Driver’s cabin |
| Vehicle Weight (t) |
4.7-17.6 |
4.9-22.4 |
7.4-24.6 |
8-28.3 |
9.4-32.2 |
10.4-34.5 |
13.6-38.1 |
14.6-40.1 |
| Wheel Pressure(kN) |
43-74 |
69-105 |
110-154 |
130-180 |
158-215 |
201-261 |
254-315 |
311-375 |
| Track Model |
P38 |
P38 |
P38 |
P38 |
P38 |
QU70 |
QU70 |
QU70 |
| Total power(kW) |
13.56 |
14.5 |
16.5 |
20.9 |
24.4-28 |
30.2/32.2 |
39/41 |
41/43 |
