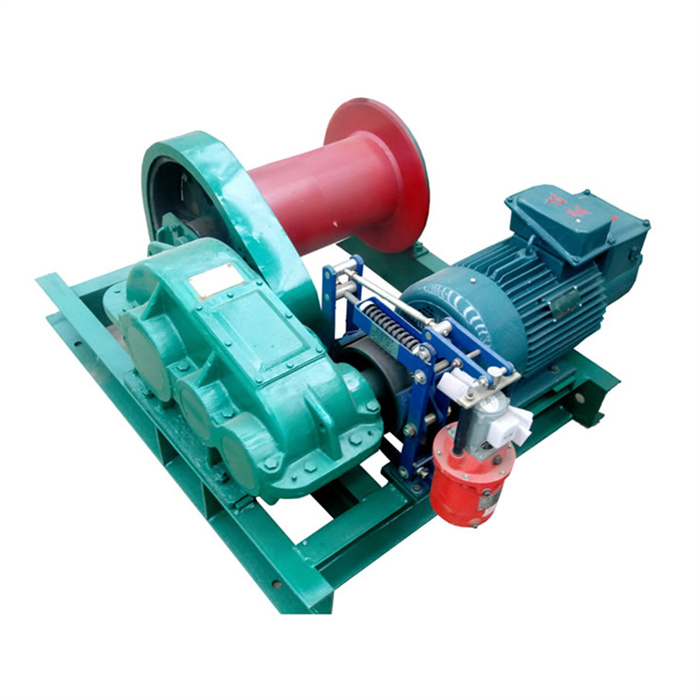

JM Model Slow Speed Wire Rope Electric Winch

Electric winch is consisting of electric motor, drum, brake, steel wire rope, electrical control system and steel structure.

Electric winch is can be used alone or as a component of machinery such as lifting, road construction and mine hoisting or pull or lift heavy objects in road and bridge projects, civil construction, mining area, factory, port, marine, e.g,

Installation and disassembly of all kinds of large or super large size steel structure and machinery equipment, reinforce concrete, drag ships, the features are orderly wire rope, safe and reliable lifting, speed is usually more than 20m/min.

Send Inquiry

 JM Model Slow Speed Wire Rope Electric Winch



General Description:

Electric winch is consisting of electric motor, drum, brake, steel wire rope, electrical control system and steel structure.

Electric winch is can be used alone or as a component of machinery such as lifting, road construction and mine hoisting or pull or lift heavy objects in road and bridge projects, civil construction, mining area, factory, port, marine, e.g,

Installation and disassembly of all kinds of large or super large size steel structure and machinery equipment, reinforce concrete, drag ships, the features are orderly wire rope, safe and reliable lifting, speed is usually more than 20m/min.



  1. Winch Capacity: 0.5-20t
  2. Lifting height: customized
  3. Lifting speed: singlespeed or inverter control lifting speed
  4. Voltage: 220v/380v/400v/415v, 440v, 50 Hzor 60 Hz3phase.
  5. Control Model: Push button or cam control or remote control
  6. Main Electrical Parts Brand: Siemens or Schneider electrical system
  7. Current overload protection function, voltage lower protection function.



Design standards

Round strand wire rope GB/T20118-2006

Crane design standard GB3811-2011

Construction winch testing standards and methods GB6947-1986



Technical parameter



KuangYuan brand Capacity Rated speed

(m/min)

Rope capacity (m) Rope Diameter (mm) Motor type Motor power (KW) Overall dimension (mm) Weight(Kg)
JM ELECTRIC WINCH JM0.5 5 22 190 7.7 Y100L-4 3 620*701*417 200
JM1 10 22 100 9.3 Y112M-4 4 620*701*417 300
JM1.6 16 24 150 12.5 Y132S-4 5.5 945*996*570 500
JM2 20 24 150 13 Y132M-4 7.5 945*996*570 550
JM3.2 32 25 290 15.5 YZR180L-6 15 1325*1335*840 1011
JM3.2B 32 30 250 15.5 YZR200L-6 22 1900*1738*985 1500
JM5 50 30 300 21.5 YZR225M-6 30 1900*1620*985 2050
JM5B 50 25 210 21.5 YZR225M-8 22 2250*2500*1300 2264
JM8 80 25 160 26 YZR280S-8 45 1533*1985*1045 3000
JM10 100 30 300 30 YZR315S-8 55 2250*2500*1300 5100
If you are interested in our cranes,welcome you contact me any time.
