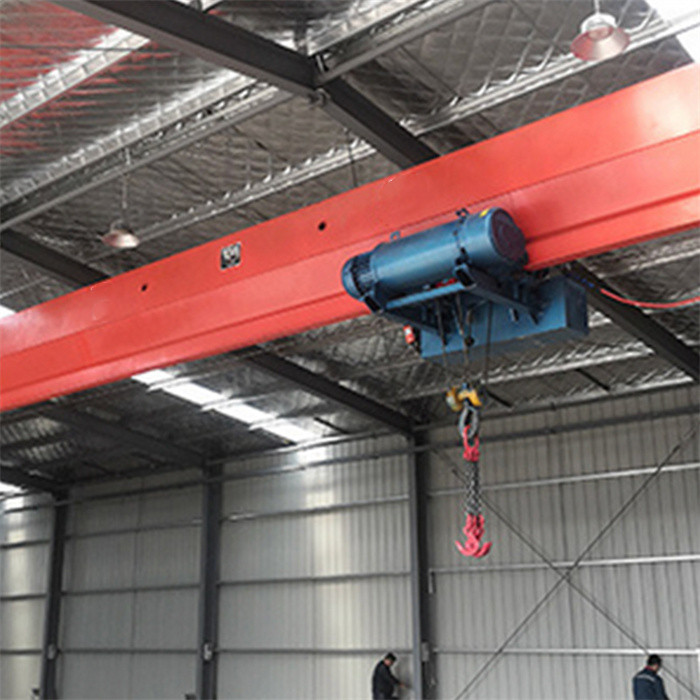

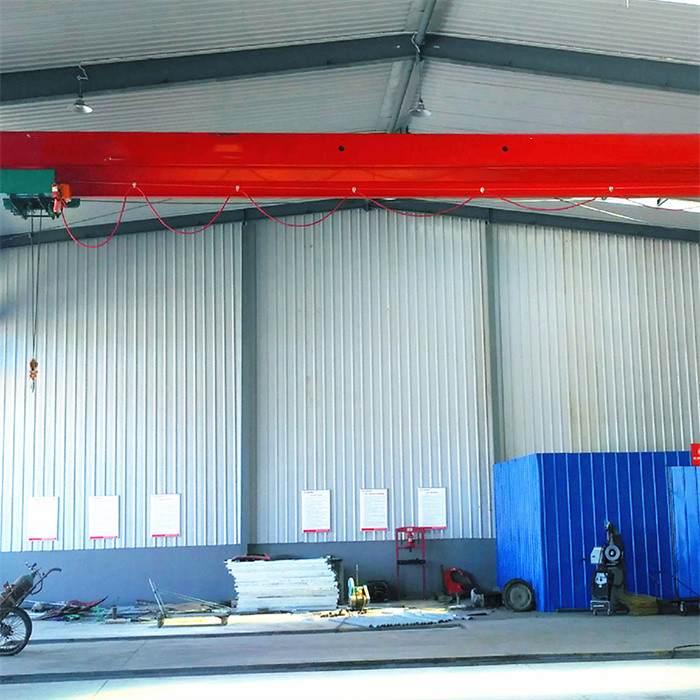

The standard Lifting capacity is from 10 to 10 tons. The span is 7.5to 31.5 meters. The working grade is A3. The working temperature is -25°C to 40°C. It is matched with low headroom electric hoist, the self height of this type of hoist is lower than the normal CD MD type electric hoist, therefore, this type hoist could help to increase the lifting height at the low height building.
This kind of overhead crane (overhead crane) is widely used in low height factories, warehouses, material inventories and other places to lift goods. It is forbidden to use inflammable, explosive and other corrosive environments.
General characteristics of single girder overhead cranes:
1. Crane steel material: Q235B, Q345B/Q345D
2. The box structure makes it firm and stable, independent handle operation, and can also be equipped with wireless remote control, with powerful functions and reasonable appearance.
3. Wheels: All wheels are vacuum forged, (or according to customer requirements), and medium frequency quenching, made by our factory.
4. The wheels, wire ropes, gears, and couplings are produced and cast by CNC machine tools.
5. Motors: Nanjing Special Motors or Nanjing General Factory Motors, the quality is leading domestically.
6. Brand of main Electrical parts: Schneider or Siemens brand.
7. Control method: Pendant line with pressing button control, remote control, operator cabin control.
Safety protection of single girder overhead cranes:
1. Weight overload protection device
2. High-quality, long-term use, impact-resistant polyurethane buffer
3. Crane limit switch
4. Loss of pressure protection
5. Emergency stop system
6. Lifting limiter
