It is applicable to the places where the workshop’s headroom is low.

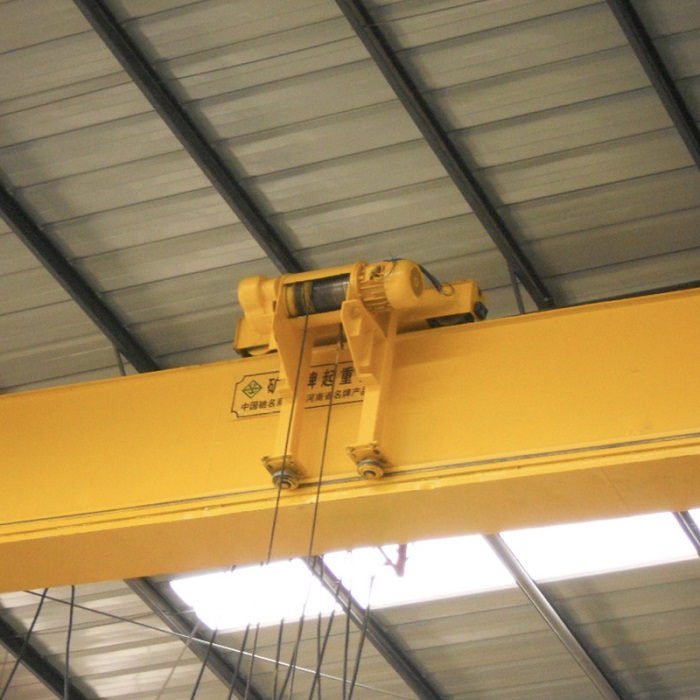

The crane is composed of a box-shaped girder weld by steel plates, an end girder, crab frame, and a fixed electric block. The crab is partially hung and runs at one side of the g rider. The electric hoist is raised to the upside of the girder from under the girder, which effectively increases the lifting altitude.
The crab is braked by a conical motor and driven by exposed gear.
The girder, of box-shaped structure and bias rails, has horizontal wheels at the upper and the lower, so that it is safe and reliable and can avoid rail gnawing.
The trolley adopts a separate drive, conical motor brake and exposed gear drive. The traveling motor can be a soft start motor and variable-frequency adjustable-speed motor according to user requirements. The crane can start steadily and runs safely and reliably.
It has three operation modes: ground handle, wireless remote control and cab. The cab has two types, open cab and closed cab. The span of it is 7.5-22 5m(subject to non-standard design according to user s requirements). The classification group is A3 and the operating ambient temperature is-25℃~40℃.
