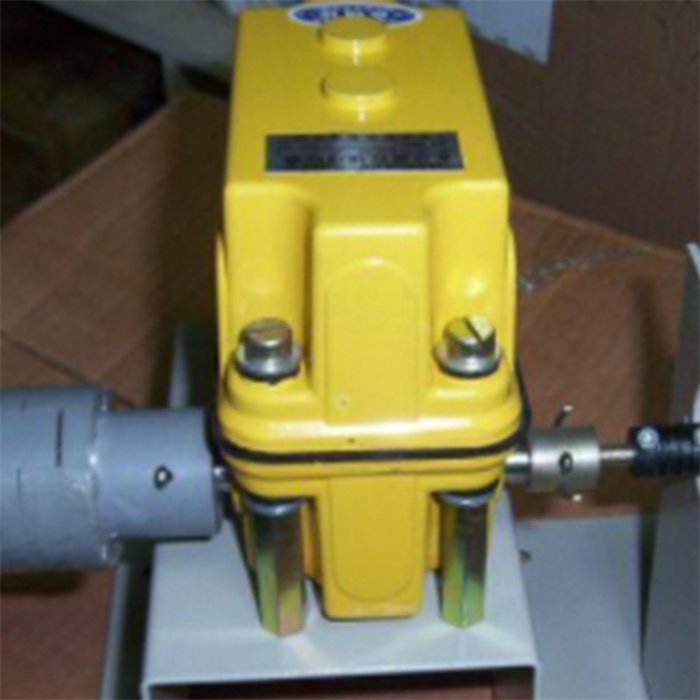

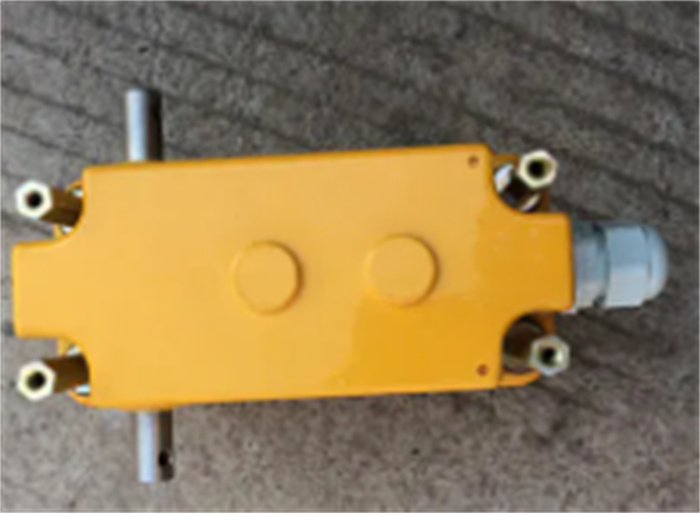

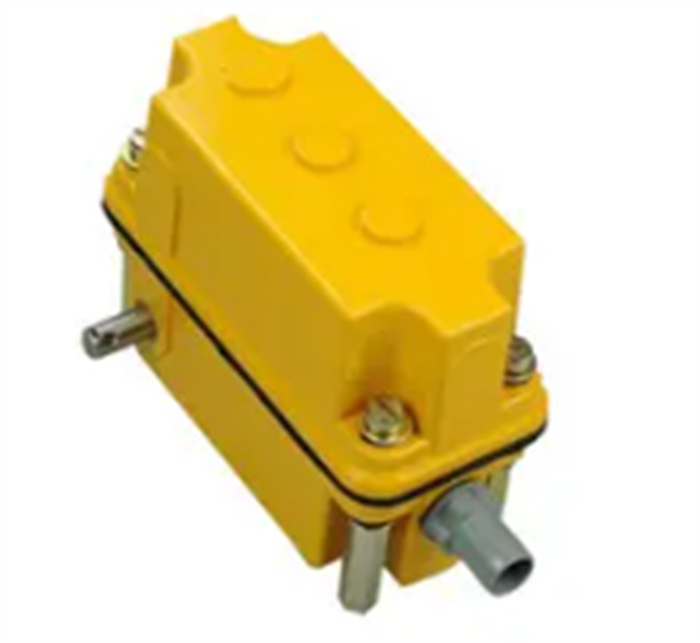

Product description:
(limit switch) is suitable for AC 50Hz. In a control circuit with a voltage of 380V and a DC voltage of 220V, it is used to control the stroke of the movement mechanism or to change its movement direction or speed. It can be widely used in the control and limit of the spatial three-coordinate of the lifting and transmission machinery in the construction, port, mining, and other industries. It has a small size, multi-function, high-speed, adjustable limit, strong versatility, maintenance, installation, and use adjustment Convenience, and other features.
Product parameter:
a. Ambient temperature: 233-328K (-40–+55℃)
Relative humidity: not more than 90
b. Transmission ratio: 1:13—–1:960
c. Repeated positioning degree: the angle error of the memory cam is not more than 0.005rad
d. Rated voltage: AC: 125—250V DC: 30V
e. Rated current of the device: 6A
f. The control loop design loop is 1-4, and 5-6 control loops can be added according to user needs.
Installation and adjustment
The memory cam and micro switch corresponding to the adjustment axis of the DXZ type stroke limiter are:
1Z—1T—1WK; 2Z—2T—2WK; 3Z—3T—3WK; 4Z—4T—4WK;
DXZ type stroke limiter adjustment program
a. Disassemble the upper cover, check, and tighten the 2-M3×55 screws.
b. Loosen the M5 nut.
c. According to the need, set the controlled mechanism to the open position (no-load). At this time, the micro switch corresponding to the control of the mechanism should be switched instantaneously.
Namely: adjust the corresponding adjustment axis (Z) so that the memory cam (T) presses down the micro switch (WK) contact.
d. Tighten the M5 nut. (The nut must be tightened, otherwise memory disorder will occur).
e. The organization should run repeatedly without load several times to verify whether the memory position is accurate. (Repeat the above adjustment if there is an error).
f. Confirm that the position meets the requirements; tighten the M5 nut and install the cover.
g. After the organization works normally, check whether the memory control position has changed frequently, so as to make timely corrections.

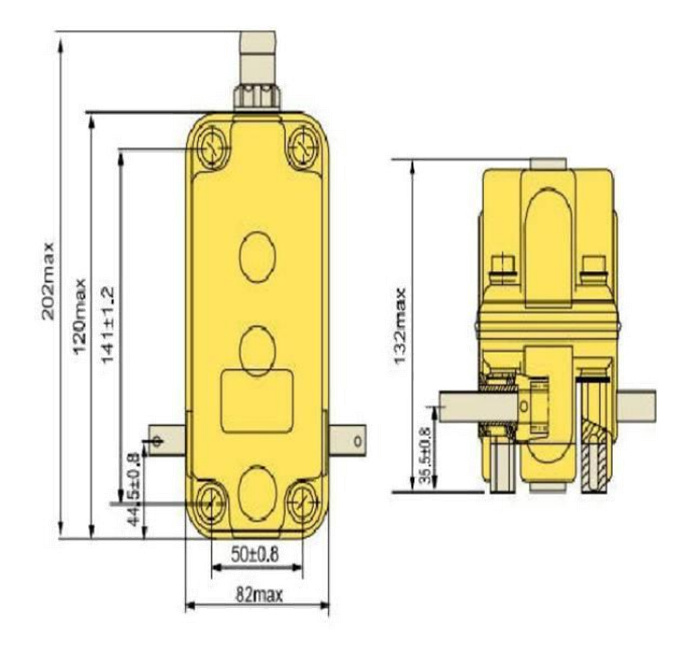

Product Structure:
