LX Single Girder Suspension Crane

LX Electric Single Girder Suspension Crane is a light-duty crane. This LX Electric Single Girder Suspension Crane is mainly used in the location where is no possible install columns to support the overhead crane. The end trucks of the under slung bridge crane ride on the bottom flange of the runway beam. Typically, an under hung runway is suspended from the roof of the building and is available only on lighter capacities, not more than 10 tons.

Send Inquiry

LX Electric Single

temperature between -25C- +40C. Prohibited to use in locations, where are stocks of flammable, explosive and corrosive materials.

Product Photos:

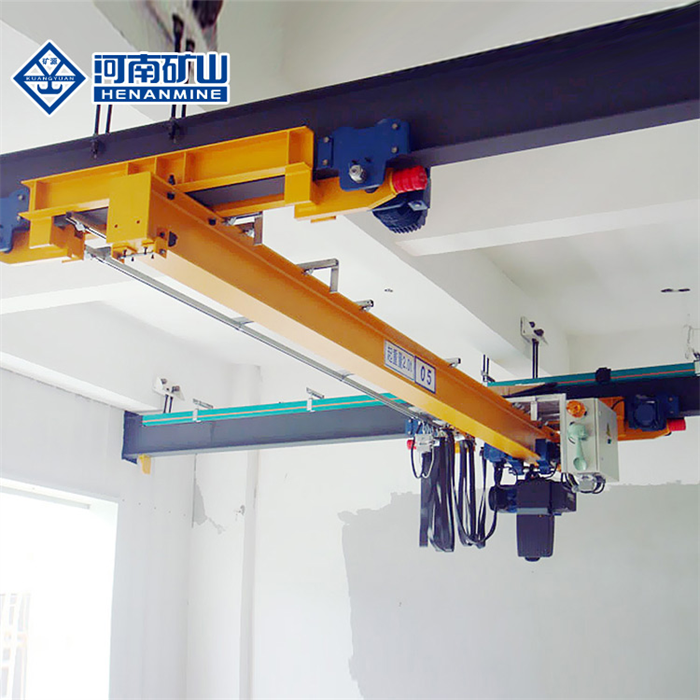

lx single girder suspension crane4

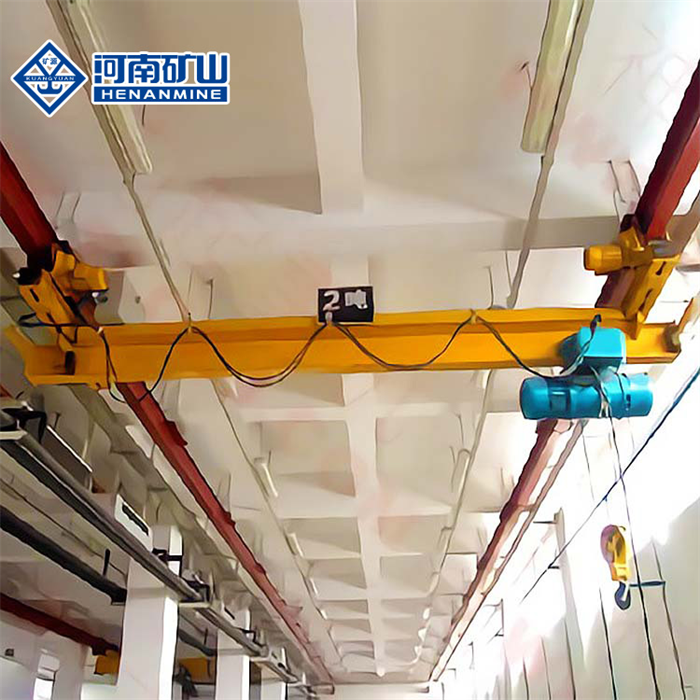

lx single girder suspension crane7

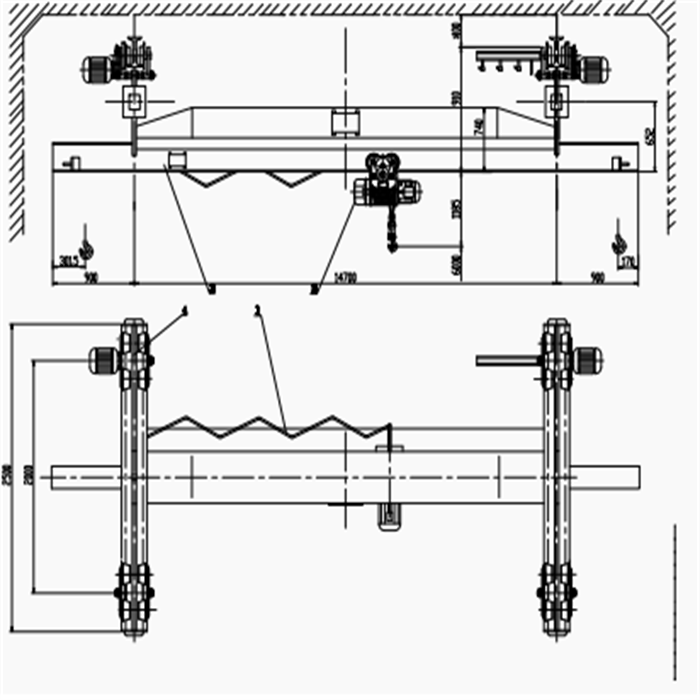

lx single girder suspension crane8

Product Structure:

Item Unit Result
Lifting capacity ton 0.5-5ton
lifting height H(m) 6 9 12 18 24 30
Span m 3-16m
lifting speed m/min 8 8/0.8
travelling speed m/min 20/30
Working grade A3-A5
Working environment temperature °C -25~40
power source three-phase 380V 50HZ
working speed m/min 20/30

Product Details:

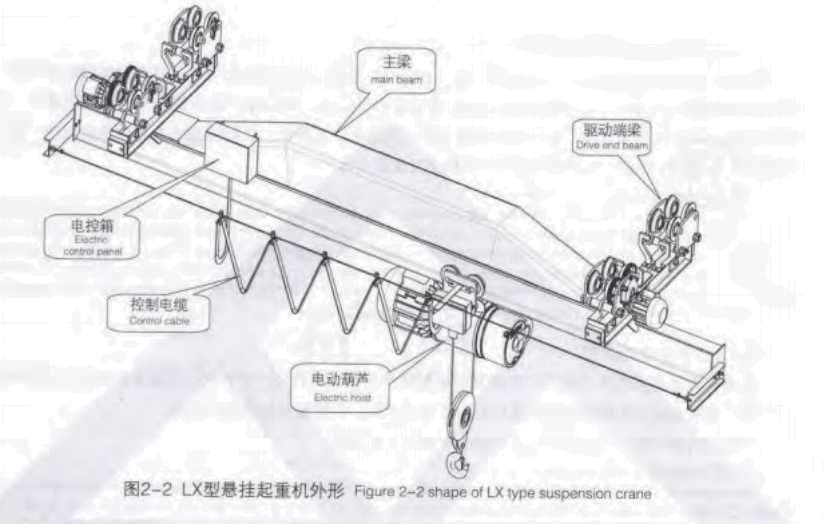

lx single girder suspension crane9

Certifications:

We have passed CE, GOST, SGS, and OHSAS & ISO9001:2000 international quality control, ISO14001:1996 environment and ISO9001:2001 health and safety certifications. We have a  perfect quality-control system, a strict management system, and strong production capability and advanced testing measures to ensure high production and high quality.

lx single girder suspension crane10

FAQ:

Q1.What does Henan mine crane do?
A: We design, manufacture, install overhead crane, gray crane, port crane, hoist winch and provide customer lifting solutions.
Q2.Do you provide professional crane servicing?
A: Yes and our service team offers a range of professional services to install your crane.
Q3.What do I need to consider when purchasing from you?
A:Standard items to consider when purchasing any lifting equipment such as over as overhead crane and gantry crane or hoist, it including safe working load, span and lifting height, duty cycles and cost of spare parts.
Q4.What makes you different from other manufacturers?
A: We have trained service technicians who will be able to get your material handling equipment up and running, and have been providing our customer’s an effective solution.
Q5.What areas do you serve?
A: We mainly service in china and can send engineers provided installations and maintenance in all over the world.
