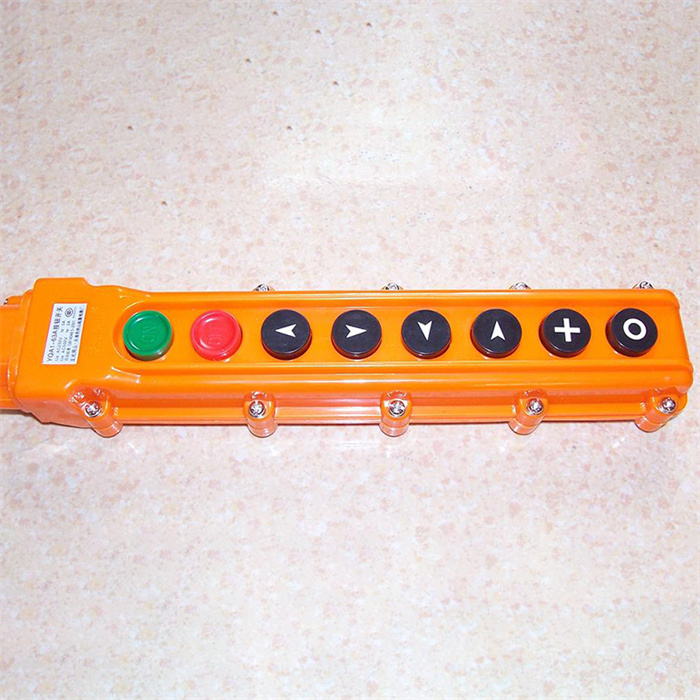

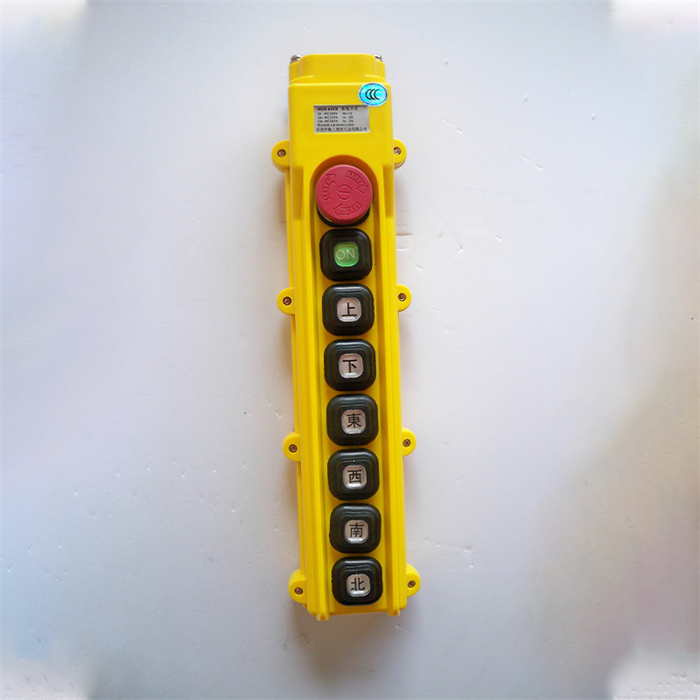

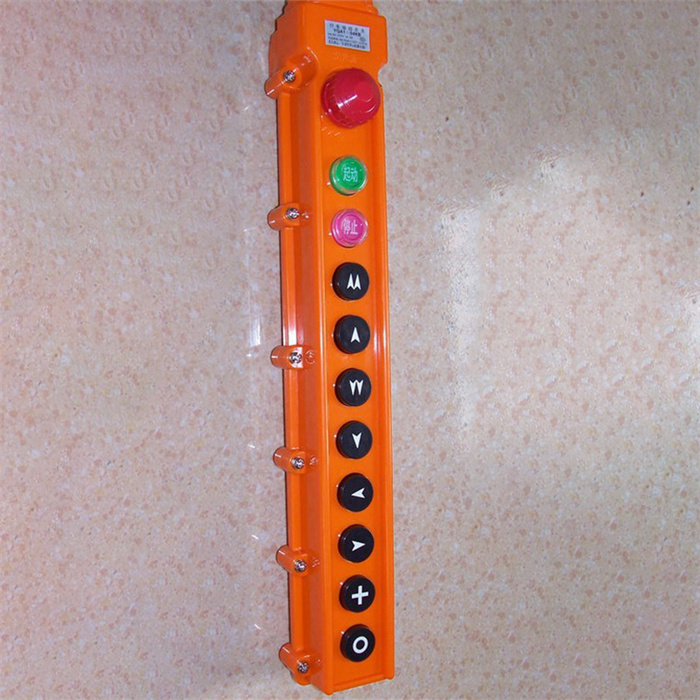

Pendant Controller

The Pendant Line button is made of ABS plastic injection molding, with beautiful appearance and reasonable structure. The product is equipped with a rubber cable sheath and waterproof sealing strip, which has good dust-proof and rainproof performance. In addition to the “start” and “total stop” buttons and the “on” and “self-locking button” buttons of the main circuit switch, the She button has automatic reset performance and has a positive and negative control mechanical interlocking mechanism, which not only simplifies the circuit but also Effectively protect circuits and equipment operation.

Send Inquiry

pendant Line Control is working for Hoist Up lifting, Hoist Down lifting, Hoist Left traveling, Hoist Right traveling, Crane front traveling, Crane Back traveling; Each of the six directions can be single speed or double speed.

The pendant Line Control working control voltage is 36V. 36V control voltage is safe for human beings.
Ambient air temperature: -5 degrees to +40 degrees, the average temperature within 24 hours does not exceed 35 degrees.
Altitude: not more than 2000m
pendant Line Control is easy to control, no additional driver necessary, operate following the traveling of hoist
pendant Line Control has a double step button with emergency to achieve safety stop.
Connected with the electric trolley suspended under the trolley
pendant Line Control Protection class IP54 or IP55
pendant Line Control Operation life not less than 500,000 times
