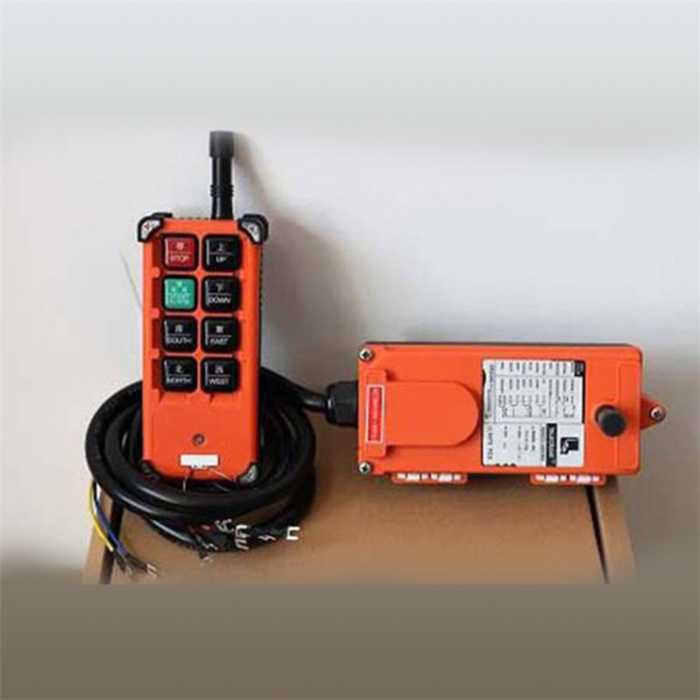

| Receiver: F21-RXC |
| Applications |

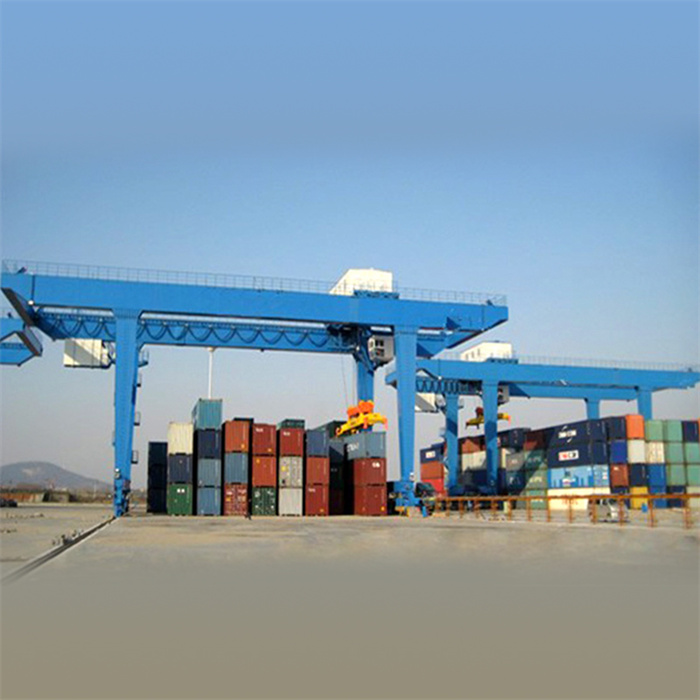

Doors, entrance, gates, winches, pumps, crushers, lighting, conveyor belts, hydraulics etc |
| Working frequency |
315 MHz |
| High-frequency channels |
64 |
| Unique codes |
4.3 billion |
| Power supply |
110/ 220V/380V/VAC, or 12/24/36/48 VDC. |
| Power consumption |
20~400m A |
| Protection |
IP65 |
| Temperature |
-40℃ ~ 85℃ |
| Control distance |
Approx. 100M |
| Recommended
|
|
Safety system

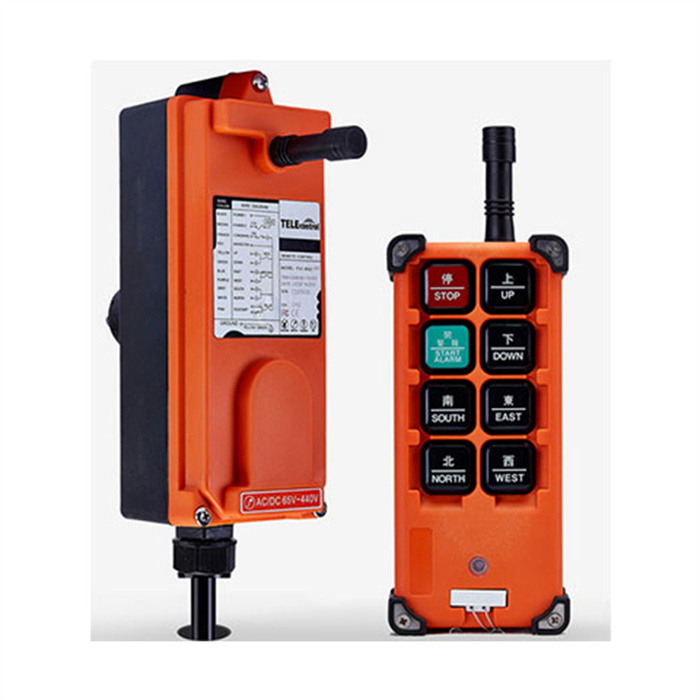

8 operation buttons, 7 single-speed buttons, and one “STOP”
8 control contactors
With a battery voltage warning device, the power is cut off during low power
Safety key switch to prevent from unauthorized user
Set the internal functions by computer interface
Up/down, east/west, north/south can be set as to mutual inhibition or not
Spare key can be set to start, acceleration, toggle switch, general or other function
