Single Beam or Girder L Shape Type Cart or Crab Type Rail Traveling Portal Crane

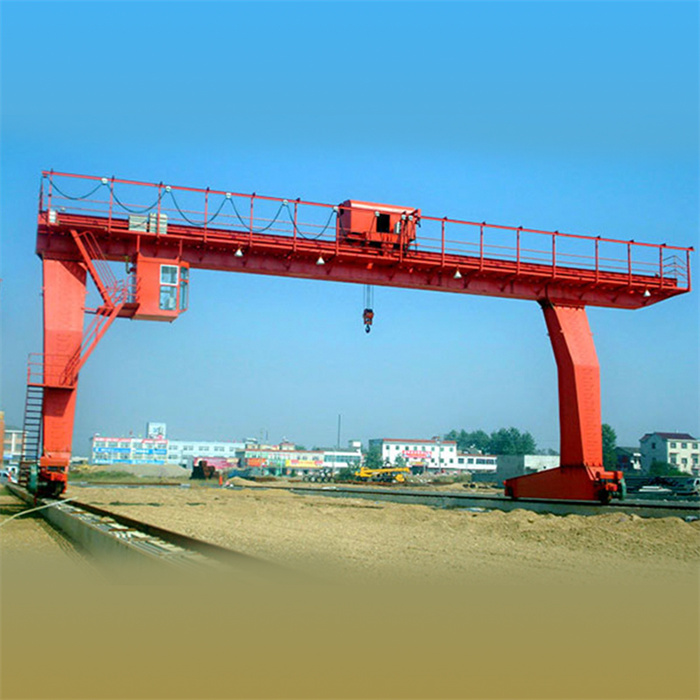

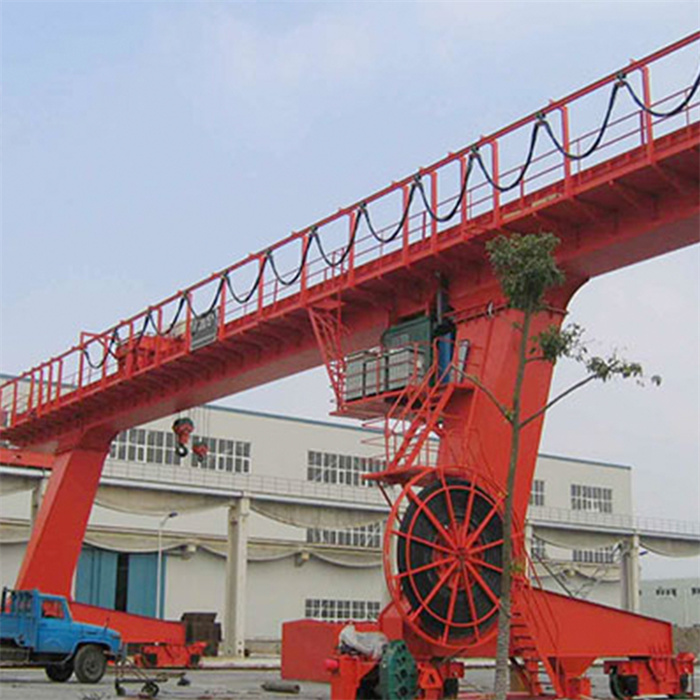

L type single beam gantry crane is a box type single girder gantry crane, consists of four parts, for bridge frame, L type supporting legs, electric trolley and crane traveling mechanism, and all electric equipment. The control method is cabin, remote control and pendent line. And generally for lifting steel ladles, tubes, or other long goods, the L shape structure is very convenient for electric trolley traveling and goods overturn.

Send Inquiry

Features:

Simple and compact structure, steady performance.
Easy to install and high efficiency.
Overload, low voltage protective device.
Pendent control and remote control.
Easy maintenance.

Specification:

Lifting capacity is 5ton to 10ton;
Span is 16m to 28m;
Lifting height is 6m, 9m,
Working duty is A5;
Working temperature is -20°C to + 50°C.

Parameter:

Lifting capacity t 5 10 20
Span m 16,20,30 16,20,30 18,26,35
Lifting height m 9 9 9
Travelling speed Ground m/min 20 20 20
Controlling Room m/min 20,30,40 20,30,40 30/40
Electric hoist  Type CD1   MD1
Lifting speed  m/min 8 or 0.8/8 7 or 0.7/7 3.5 or 0.35/3.5
Travelling speed  m/min 20 20(30) 20(30)
Working system A3
Power source 3-phase A.C. 380V 50HZ

Packaging Details:

1.Main electric parts are packed by damp proof wooden case to protect from damage caused by humidity and corrosion;
2.Other parts are packed as standard or as your requirements.
