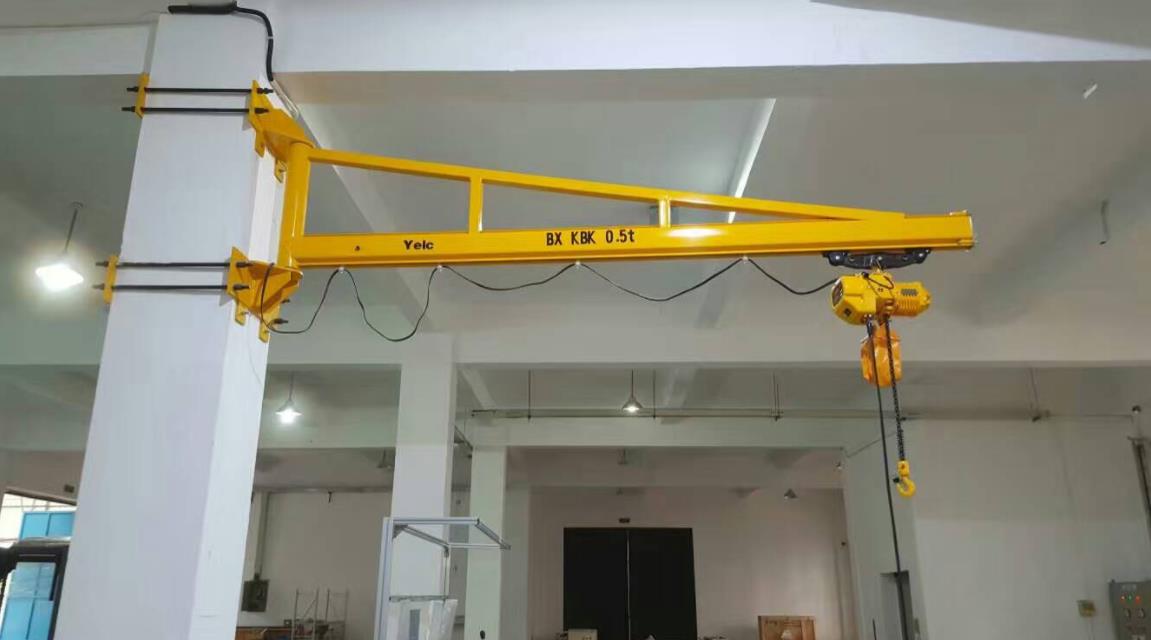

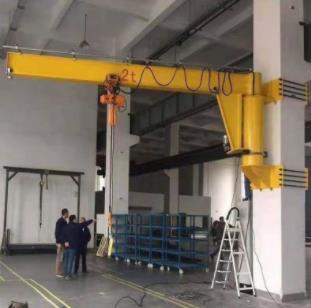

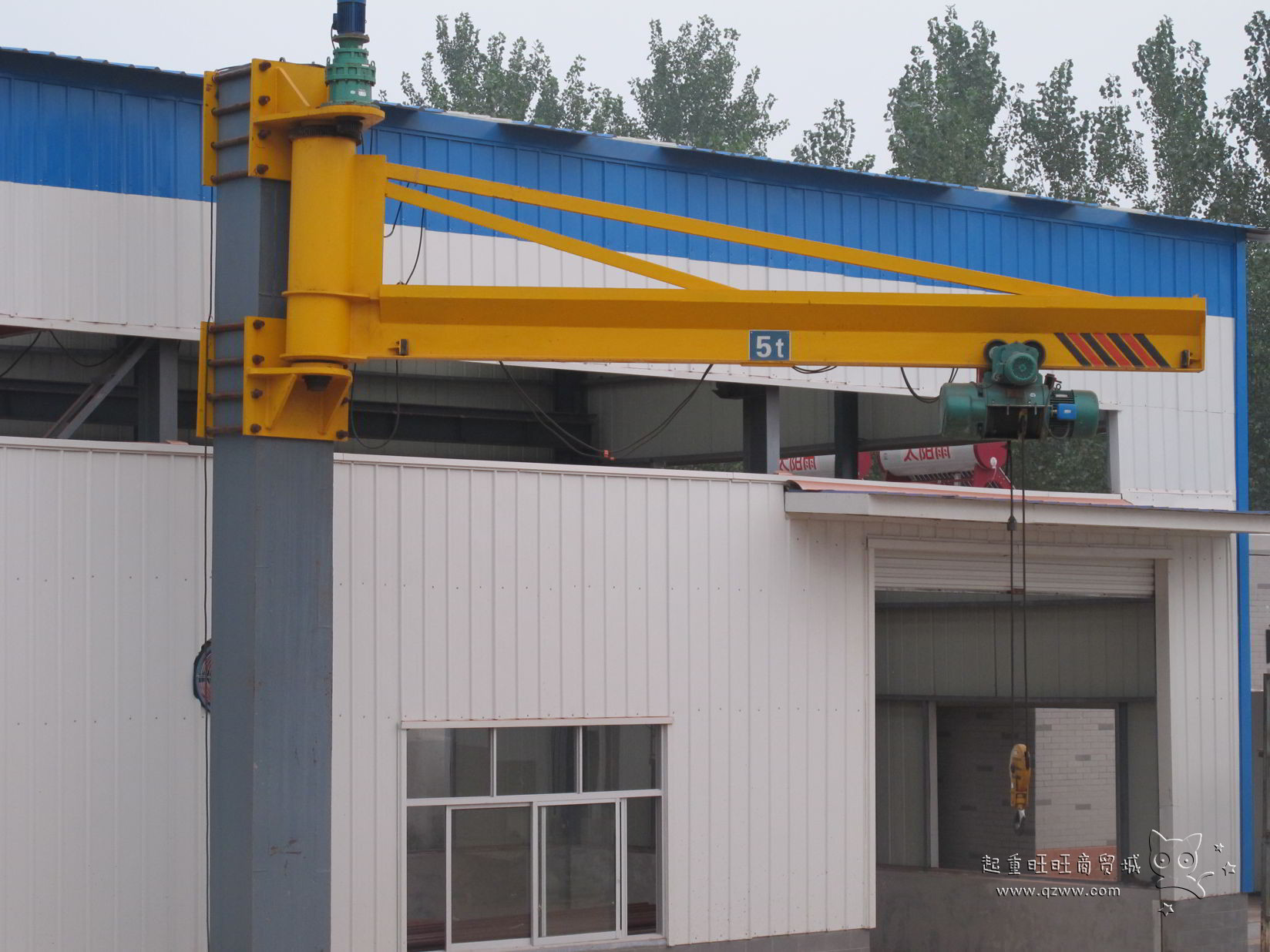

Wall mounted cantilever jib crane can be mounted to your wall or column in your workshop to accommodate any space constraints. Our wall mounted cantilever jib crane offer an extensive range of installation and capacities.
Load capacity from 0.25 t to 5 t. It is useful where overhead hoists are neither practical nor feasible. This machine utilize 180 degree floor coverage, allowing unrestricted placement of machinery and equipment.
Technical parameters:
Load capacity(t) | 0.25 | 0.5 | 1 | ||||||||||
Lifting height(m) | 5 | 5.5 | 6 | 5 | 5.5 | 6 | 5 | 5.5 | 6 | ||||
Valid radius(m) | 4 | 4.5 | 5 | 4 | 4.5 | 5 | 4 | 4.5 | 5 | ||||
Working duty | A3 | ||||||||||||
Lifting speed(m/min) | 8(0.8/8) | ||||||||||||
Circulate speed(m/min) | 20 | ||||||||||||
Cemter height(m) | 1.2 | 1.6 | 2.56 | ||||||||||
Max. Height(m) | 4.326 | 4.826 | 5.326 | 4.430 | 4.930 | 5.430 | 4.525 | 5.025 | 5.525 | ||||
Total weight(t) | 343 | 362 | 378 | 389 | 405 | 420 | 768 | 782 | 810 |
Safety system :
Weight overload protection
Emergency stop system
Over current protection,Short-circuit protection
Phase sequence protection,Zero position protection
Voltage loss protection
crane rotating stopper and cross traveling limit switch and stopper
Lifting overhigh and overlow limit switch
