Top Quality Remote Control Low Headroom Type Single Beam Or Girder Electric Overhead Bridge Traveling Crane

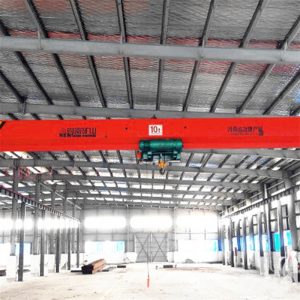

LDC low headroom single girder overhead crane standard Lifting capacity is from 10 to 10 tons. The span is 7.5to 31.5 meters,and the working grade is A3,which working temperature is -25°C to 40°C. It is matched with low headroom electric hoist, the self height of this type of hoist is lower than the normal CD MD type electric hoist, therefore, this type hoist could help to increase the lifting height at the low height building.

This kind of overhead crane (overhead crane) is widely used in low height factories, warehouses, material inventories and other places to lift goods. It is forbidden to use inflammable, explosive and other corrosive environments.

Parameter table of low headroom overhead crane

Mechanical partsof low headroom overhead crane

1.Single welding box girder, beam deflection with DIN/FEM standard

2.Steel Material: Chinese standard Q235B and Q345B

3.Trolley rail is made of high strength hot rolled flat steel (16 Mn)

Safety system of low headroom overhead crane

1.Overload protection in the event of overload, the hoist unit switches off and only the lowering motion is possible

2.Long and cross travel limited by means of preliminary and final limit switches or Wireless anti-collision device

3.Anti-falling protection for the Three-in-One electric motor of trolley and crane prevents from accidental falling

4.All movements can be switched off by actuating the emergency-off switch at the control station via a main contact

5.High quality long time bearing polyurethane materials buffer fixed at the end of trolley travelling and crane travelling to prevent over traveling

Design standard of low headroom overhead crane

1.Design rules for cranes GB/T3811-2008

2.Safety rules for lifting appliances GB6067.1-2010

3.General Bridge Crane GB/T14405-2011

4.General Gantry Crane GB/T14406-2011

Installation service

Henan Mine Crane Co.,LTD crane has top advanced overhead crane in the field of industrial overhead crane, All the overhead crane are design according to overhead crane standards. The single girder overhead crane (monorail overhead crane) and double girder overhead crane have a good design of overhead crane. overhead crane has many overhead crane components for different parts of overhead crane include overhead crane and hoist, overhead crane brake, overhead crane end trucks, overhead crane hoist, overhead crane trolley, overhead crane hooks, overhead crane kits, overhead crane pendent, overhead crane controls, overhead crane signals indicator, overhead crane rails, overhead crane rail stops and so on overhead crane equipment.
