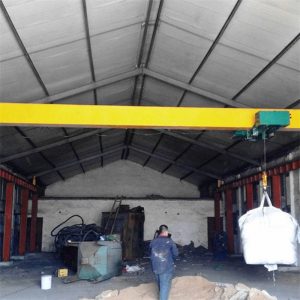

The low headroom single girder overhead crane is widely used in low height factories, warehouses, material inventories and other places to lift goods. It is forbidden to use inflammable, explosive and other corrosive environments.
The standard Lifting capacity is from 10 to 10 tons. The working temperature is -25°C to 40°C. It is matched with low headroom electric hoist, the self height of this type of hoist is lower than the normal CD MD type electric hoist, therefore, this type hoist could help to increase the lifting height at the low height building.
Parameter table of low headroom EOT crane
|
LDC low headroom single girder overhead crane
|
| Lifting capacity |
1 ton
|
2 ton |
3 ton |
5 ton |
10 ton |
16 ton |
20 ton
|
| Span |
7m-31.5m
|
| Lifting height |
6/9/12/18/24/30m
|
| Lifting motor |
ZD122-4/1.5KW |
ZD131-4/3.0KW |
ZD132-4/4.5KW |
ZD141-4/7.5KW |
ZD151-4/13KW |
ZD151-4/13KW |
ZD152-4/18.5KW |
| Cross motor |
ZDY111-4/0.2KW |
ZDY111-4/0.4KW |
ZDY112-4/0.4KW |
ZDY121-4/0.8KW |
ZDY121-4/0.8x2KW |
ZDY121-4/0.8x2kw |
ZDY121-4/0.8x4kw |
| Lifting speed |
0.8/8m/min
|
0.8/8m/min |
0.8/8m/min |
0.8/8m/min |
0.7/7m/min |
0.35/3.5m/min |
0.4/4m/min |
| Cross speed |
20m/min
|
20m/min |
20m/min |
20m/min |
20m/min |
20m/min |
20m/min
|
|
Traveling speed
|
20m/min |
20m/min |
20m/min |
20m/min |
20m/min |
20m/min |
20m/min
|
| Power source |
380V 50Hz,3Phase or customized
|
| Working class |
A3
|
Mechanical parts of low headroom EOT crane
1.The girder and end beam are connected together by high strength bolts to ensure the structure strength and precision of the whole machine
2.The end beams are equipped with flat wheel or double rim wheels, anti-friction bearings, buffer blocks and derailment preventing end plate
3.Maintenance walkway is located on one side of the main girder, consisting of flower pattern plate, 1050meters handrail.
Safety system of low headroom EOT crane
1.Audible and visual alarm device to inform the person stay near by the travelling crane.
2.Rain Cover for lifting mechanism of outdoor cranes, electric cabinet and driving mechanism
3.Protective earth conductor is fitted as standard
4.Voltage lower protection system
5.Current overload protection system
