Description:

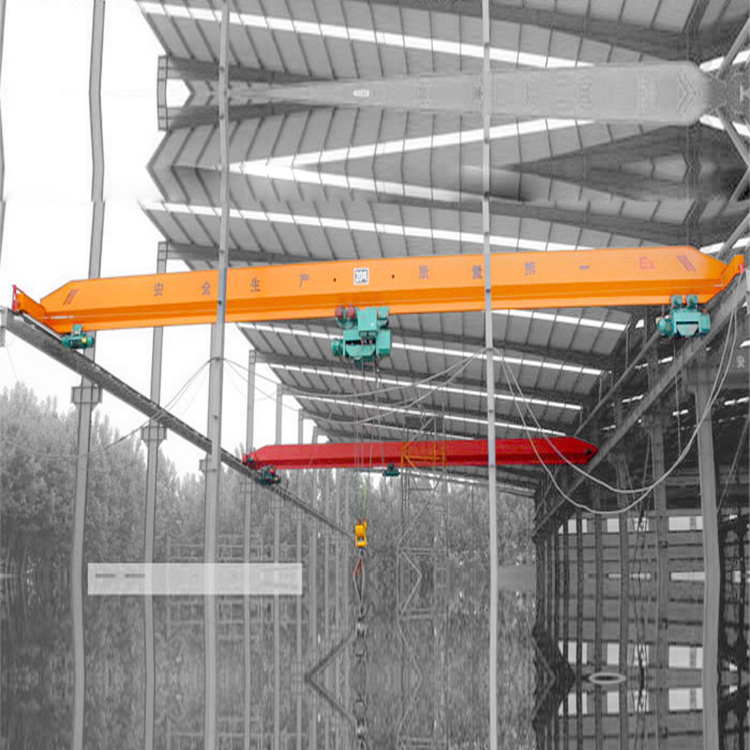

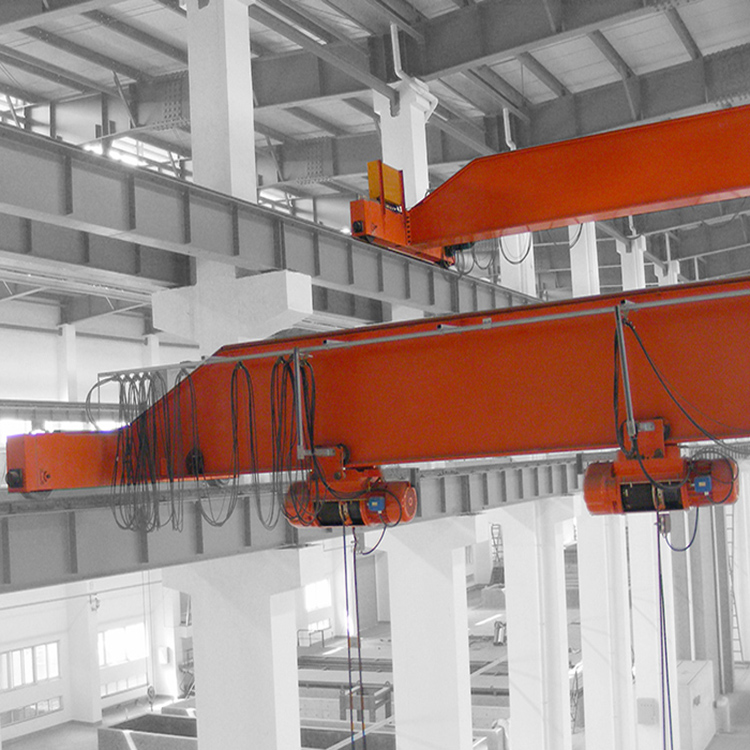

LDA model single girder EOT crane is a kind of light duty crane, with the capacity of 1 to 20 tons. The span is 7.5to 31.5 meters. Working duty is A3 A4. Working environment temperature is -20°C to 40°C.
LDA model single girder EOT crane consists of main beam,end beam,electric hoist,festoon cable and electric control system,It is widely used in plants, warehouse, and material stocks to lift goods.
LDA model single girder EOT crane is matched with electric hoist which is CD model or MD model.
It is prohibited to use the equipment in the combustible, explosive or corrosives environment.
Mechanical Parts：
1.Double welding box girder, beam deflection with DIN/FEM standard
Steel Material: Chinese standard Q235B and Q345B
Trolley rail is made of high strength hot rolled flat steel (16 Mn)
Epoxy zinc-rich painting for one bottoms and two sides of 120μm thick, to achieve a long lifespan, beautiful appearance and good luster
The girder and end beam are connected together by high strength bolts to ensure the structure strength and precision of the whole machine
The end beams are equipped with flat wheel or double rim wheels, anti-friction bearings, buffer blocks and derailment preventing end plate
Maintenance walkway is located on one side of the main girder, consisting of flower pattern plate, 1050meters handrail.
Both side of all the steel plate of crane are pretreatment by pretreatment production line,
Sand blasting– Primer spray–Primer drying. Eliminate the innerstress of steel plate, increase the adhesive force of the steel structure. Ensure the appearance and anticorrosion quality.
2.Steel plate cutting adapt whole sets Messer CNC plasma cutting machine from Germany, very fast cutting speed, little deformation, High precision, Deviation could be controlled within 1mm, it insure the raw material at high quality standard and can reach top level in the industry.
3.The welding of main beam adapt high efficiency and intelligent welding robot, Henan Mine Crane Co.,LTDare No.1 enterprise who adapt this high technology machine. The welding joint inside of the main beam adapt advanced MAG welding, adapt Ar+CO2 mixed protective gas, The 4 welding joint outside of the main beam adapt automatic submerged-arc fillet welding machine.
4.The welding of main beam adapt radiographic inspection and ultrasonic flaw detection for the welding joint and fillet weld position
5.The welding of end beam adapt double gun gantry submerged arc welding, highly welding quality ensure the stable quality of the crane effectively.
Design Standard:
Safety rules for lifting appliances GB6067.1-2010
General Bridge Crane GB/T14405-2011
General Gantry Crane GB/T14406-2011
Overhead crane and gantry crane manufacturing and tolerances of rail installation GB/T10183-2005
Crane test specification and procedures GB/T5905-1986
Crane electric control equipment JB/T4315-1997
Important application wire rope GB8918-2006
Carbon structure steel GB/T700-2006
Low alloy high strength structure steel GB/T1591-2008
Welding joint radiographic inspection standard JB928-1994
Steel welding joint manual ultrasonic flaw detection way GB11345-1989
Installation Service:
Overhead crane components for different parts of overhead crane include overhead crane and hoist, overhead crane brake, overhead crane end trucks, overhead crane hoist, overhead crane trolley, overhead crane hooks, overhead crane kits, overhead crane pendent, overhead crane controls, overhead crane signals indicator, overhead crane rails, overhead crane rail stops and so on overhead crane equipment,
Henan Mine Crane Co.,LTD crane could supply not only overhead crane but also the overhead crane solutions, firstly, we will supply overhead bridge crane design, overhead crane manual, overhead crane drawing, overhead crane wiring diagram, overhead crane electrical diagram and overhead crane safety video before or after delivery, our technician will do supervision the installation according to the document, of course, the customer can do installation by themselves according to their requirement.
After installation, our technician will indicate to do the load test according to the overhead crane load test procedure, then overhead crane operator training and overhead crane maintenance training, all the procedure will be made according to the overhead crane training videos and overhead crane training PowerPoint
Product technical parameters:
| Lifting weight(T) |
3 |
5 |
10 |
16 |
20 |
| Span(m) |
10.5~31.5 |
| Max Lifting height(m) |
6~30 |
| Working class |
A3 A4 |
| Main Hoisting Speed(m/min) |
8,8/0.8 |
8,8/0.8 |
7,7/0.7 |
3.5,3.5/0.35 |
3.5,3.5/0.35 |
| Trolley Cross Traveling Speed(m/min) |
20,2~20(frequency inverter) |
| Crane Long Traveling Speed(m/min) |
30,3~30(frequency inverter) |
| Motor Type |
Squirrel cage motor |
| Motor (Kw) |
Main Hoisting |
4.5 |
7.5 |
13 |
13 |
18.5 |
| Trolley Cross Traveling |
1*0.4,1*0.8,2*0.8 |
| Crane Long Traveling |
2*0.8,2*1.5,2*2.2 |
| Control mode |
Pendent line control,Remote control,Cabin control |
| Recommended Rail model |
24kgs/m |
30kgs/m |
38kgs/m |
43kg/m |
| Power source |
|
3Ph A.C 50Hz 380V |
