Top Quality Single Beam or Girder Electric Mobile Rail Traveling Gantry Crane

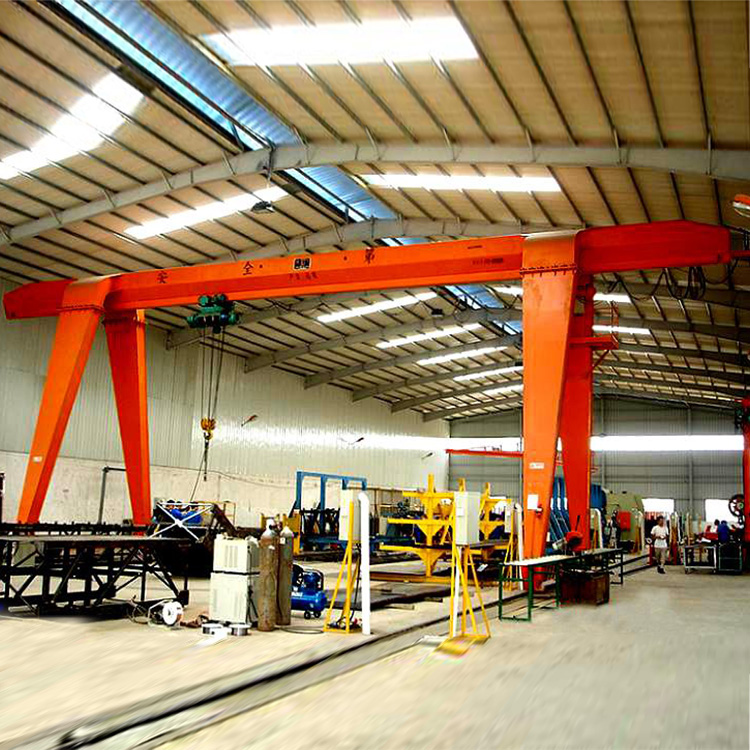

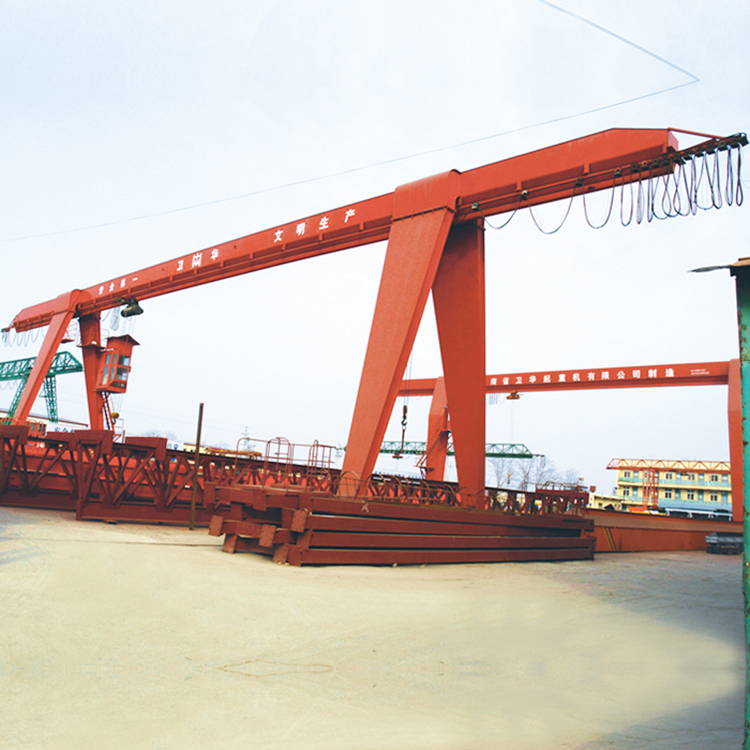

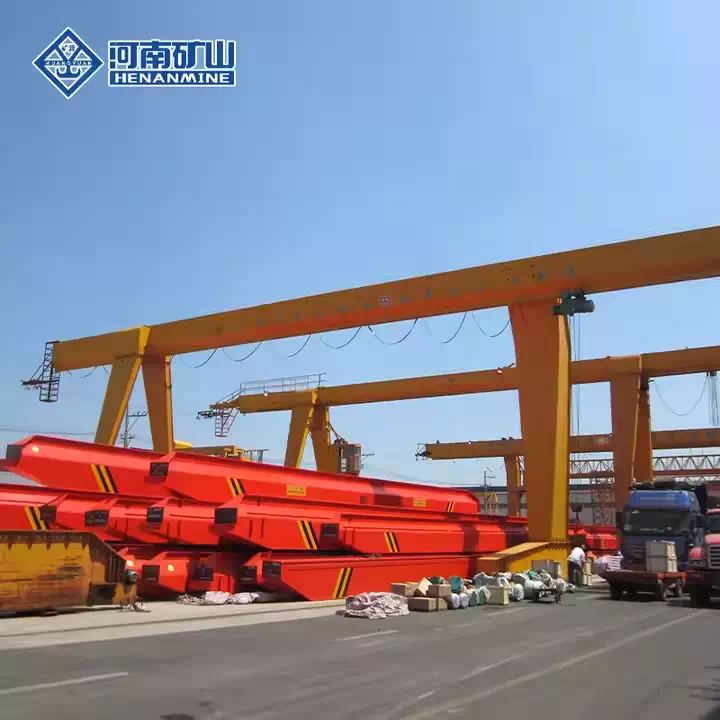

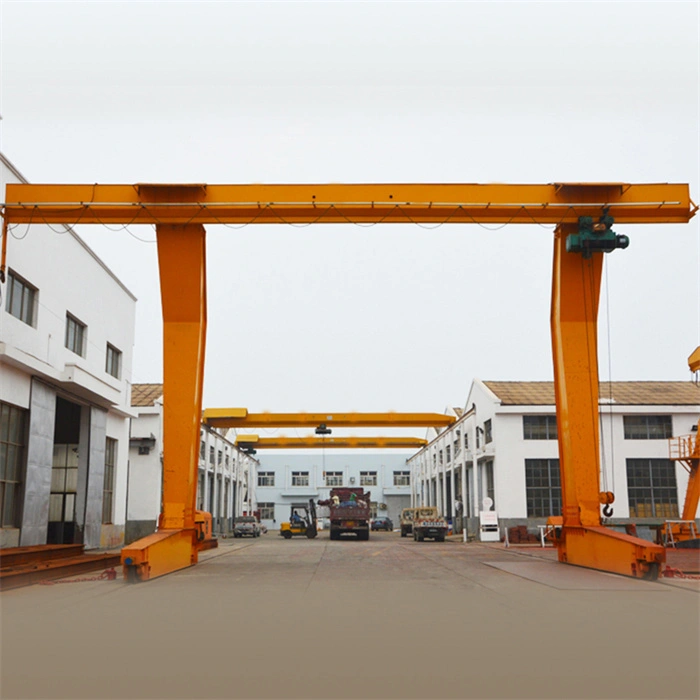

Electric hoist gantry crane is a small and medium-sized lifting equipment running on rails, which is mainly composed of gantry frame (main beam, support leg, lower beam, etc.), lifting mechanism, running mechanism and electronic control part. It takes electric hoist as lifting mechanism and runs along the lower flange of main beam I-steel when working.The door frame structure is divided into box and truss, box technology is good, easy to make;The truss has light weight and strong wind resistance.The machine has the characteristics of light weight, simple structure, convenient installation and maintenance, and is suitable for general loading, unloading and lifting work in factories and mines, freight yards and warehouses within the range of small and medium lifting weight. It is forbidden to work in the environment with inflammable, explosive and corrosive gases.

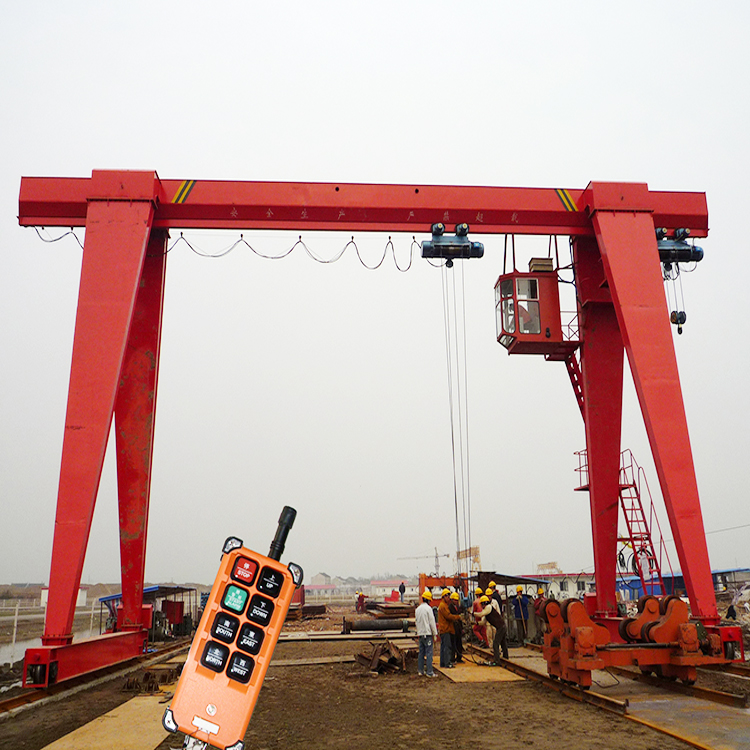

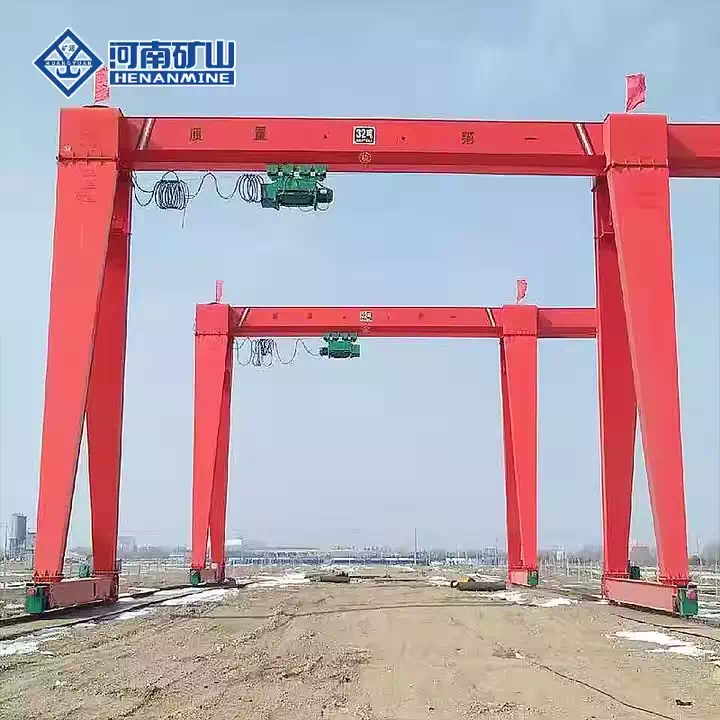

Operation mode is equipped with ground handle, wireless remote control and driver’s cab three operating forms.
The power supply mode has two forms: cable drum and high-altitude slide line

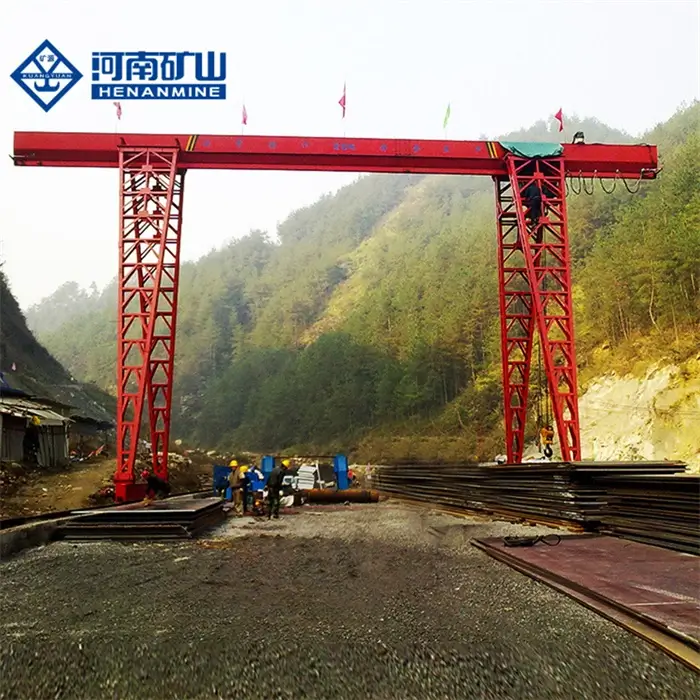

MH features
1.Simple and compact structure, economical and practical.
2.Easy to transport and install, save cost.
3.Four legs traveling on the ground through rail,steady performance.
4.Outdoor using, truss type is especially for the windy outdoors.
5.Six action movement direction, high efficiency
6.Easy and low cost maintenance, long service life
7.Outdoor cranes are equipped with rainproof devices
8.Circuit self-test protection device, running the travel limit to protect the current lacking of any phase.
Full safety system as follows:
Hook with safety latch
Weight overload protection
Emergency stop system,Over current protection,Short-circuit protection
Phase sequence protection,Zero position protection,Voltage loss protection
Anti-collision Limit switch and stopper for crane long traveling and cross traveling
Overhigh lift and overlow lift limit switch
Sound and light alarm devices,
Equipped with rail clamp.
Design standard
Gantry crane manufacturing and tolerances of rail installation GB/T10183-2018
Crane test specification and procedures GB/T5905-2011
Crane electric control equipment JB/T4315-2020
Important application wire rope GB8918-2006
Carbon structure steel GB/T700-2006
Low alloy high strength structure steel GB/T1591-2018
Welding joint radiographic inspection standard JB928-1994
Steel welding joint manual ultrasonic flaw detection way GB11345-2013
Installation service
Henan Mine Crane Co.,LTD crane has top advanced gantry crane in the field of industrial gantry crane, All the gantry crane are design according to gantry crane standards. The single girder gantry crane and double girder gantry crane have a good design of gantry crane. gantry crane has many gantry crane components for different parts of gantry crane include gantry crane landing leg and hoist, gantry crane brake, gantry crane end trucks, gantry crane hoist, gantry crane trolley, gantry crane hooks, gantry crane kits, gantry crane pendent, gantry crane controls, gantry crane signals indicator, gantry crane rails, gantry crane rail stops and so on gantry crane equipment,
Henan Mine Crane Co.,LTD crane Service for installation.
Henan Mine Crane Co.,LTD crane could supply not only gantry crane but also the gantry crane solutions, firstly, we will supply gantry crane design, gantry crane manual, gantry crane drawing, gantry crane wiring diagram, gantry crane electrical diagram and gantry crane safety video before or after delivery, our technician will do supervision the installation according to the document, of course, the customer can do installation by themselves according to their requirement.
After installation, our technician will indicate to do the load test according to the gantry crane load test procedure, then gantry crane operator training and gantry crane maintenance training, all the procedure will be made according to the gantry crane training videos and gantry crane training PowerPoint,
Henan Mine Crane Co.,LTD crane has a lot of honor for gantry crane certification for different gantry crane types
If you want to know more information about gantry crane, please find the gantry crane attachments, gantry crane pdf, gantry crane catalogue to get mover gantry crane specification and gantry crane regulations from the download center.

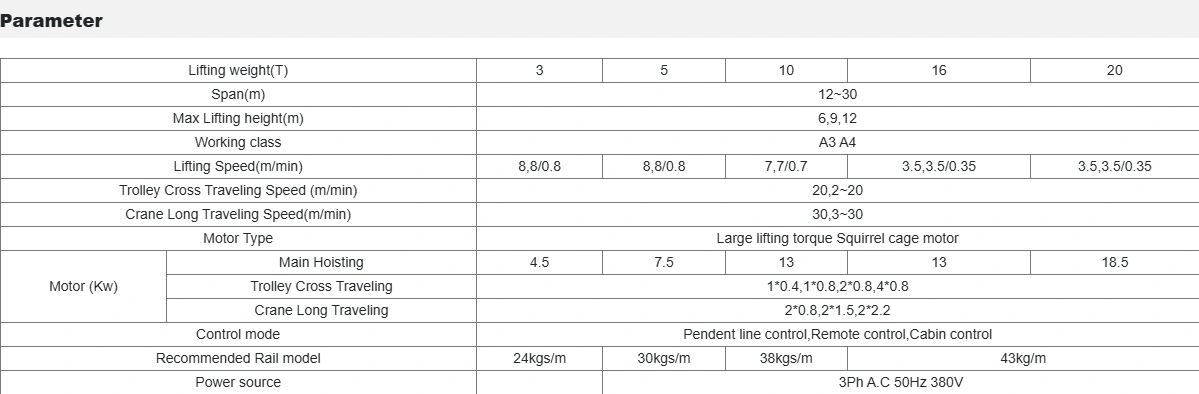

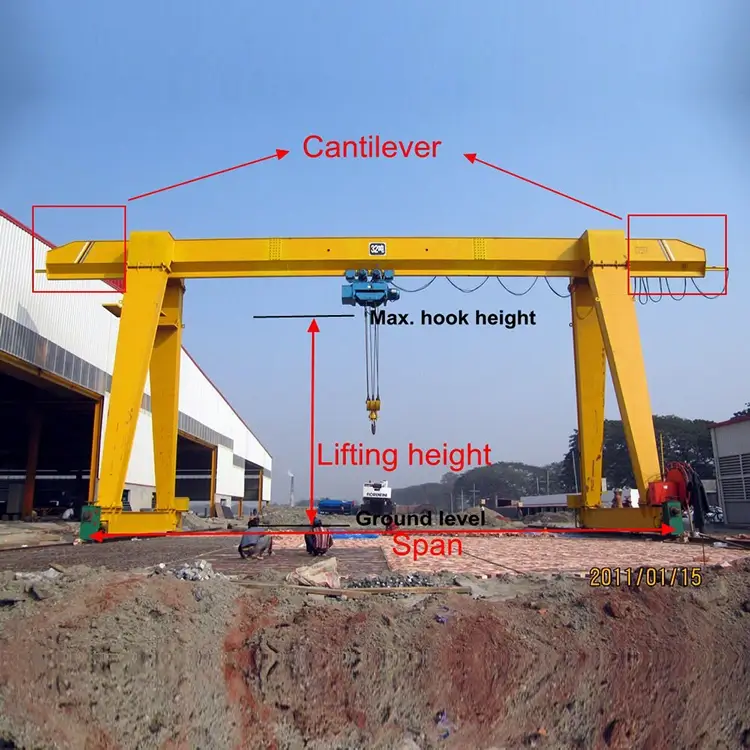

Parameter
| Lifting weight(T) |
3 |
5 |
10 |
16 |
20 |
| Span(m) |
12~30 |
| Max Lifting height(m) |
6,9,12 |
| Working class |
A3 A4 |
| Lifting Speed(m/min) |
8,8/0.8 |
8,8/0.8 |
7,7/0.7 |
3.5,3.5/0.35 |
3.5,3.5/0.35 |
| Trolley Cross Traveling Speed (m/min) |
20,2~20 |
| Crane Long Traveling Speed(m/min) |
30,3~30 |
| Motor Type |
Large lifting torque Squirrel cage motor |
| Motor (Kw) |
Main Hoisting |
4.5 |
7.5 |
13 |
13 |
18.5 |
| Trolley Cross Traveling |
1*0.4,1*0.8,2*0.8,4*0.8 |
| Crane Long Traveling |
2*0.8,2*1.5,2*2.2 |
| Control mode |
Pendent line control,Remote control,Cabin control |
| Recommended Rail model |
24kgs/m |
30kgs/m |
38kgs/m |
43kg/m |
| Power source |
|
3Ph A.C 50Hz 380V |
