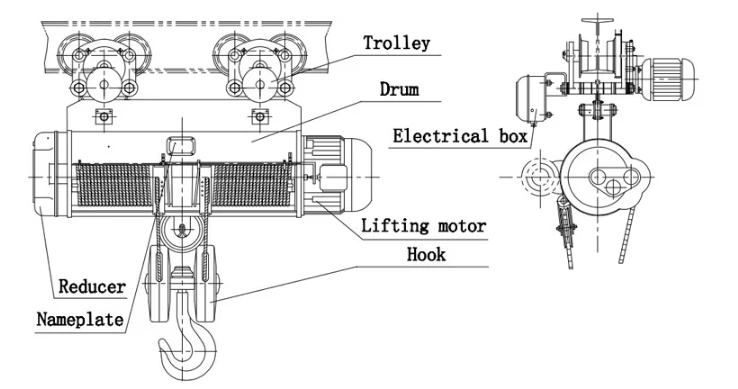

Product introduction:

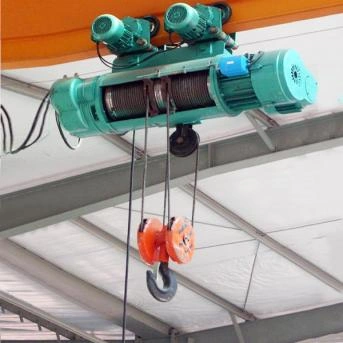

The CD MD type wire rope electric hoist is a small sized lifting equipment, which can be mounted on the straight or curved I-beam of single beam overhead bridge crane,single girder gantry crane and cantilever jib crane, It is a common lifting equipment that is used in factories, mines, sea port, warehouse, goods yard, stores for lifting, loading and unloading of heavy objects, it is a essential equipment to improve working efficiency and improving working conditions.
The capacities are from 250kgs up to 16tons,lifting height up to 30m,single or double lifting speeds,working voltages are 380v50hz3ph or customized,pendent line control or remote control,working class A3 A4.
The CD MD type wire rope electric hoist has features of compact structure, light weight, small size, strong versatility of parts and components, and convenient operation.

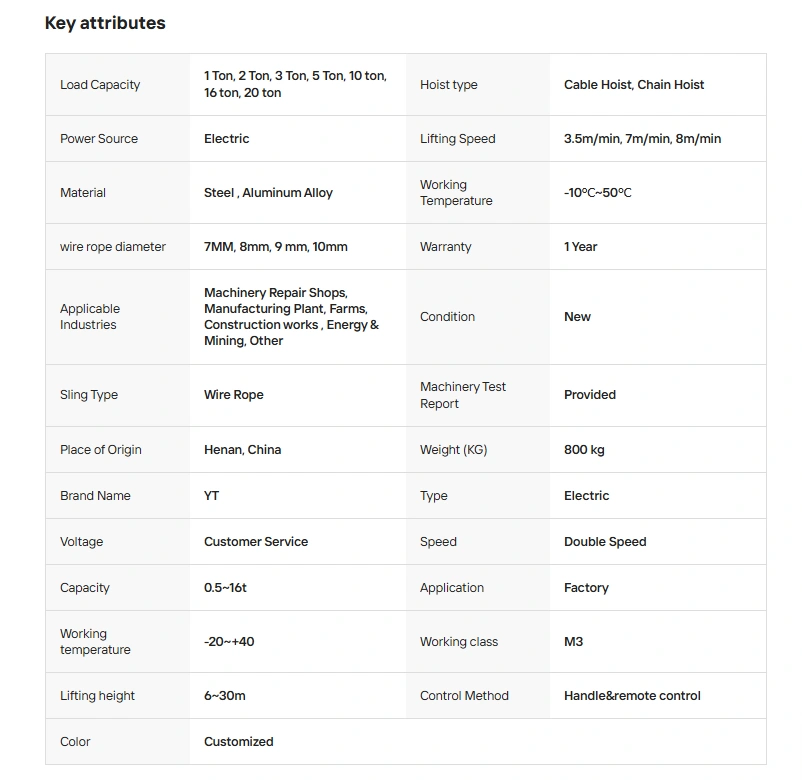

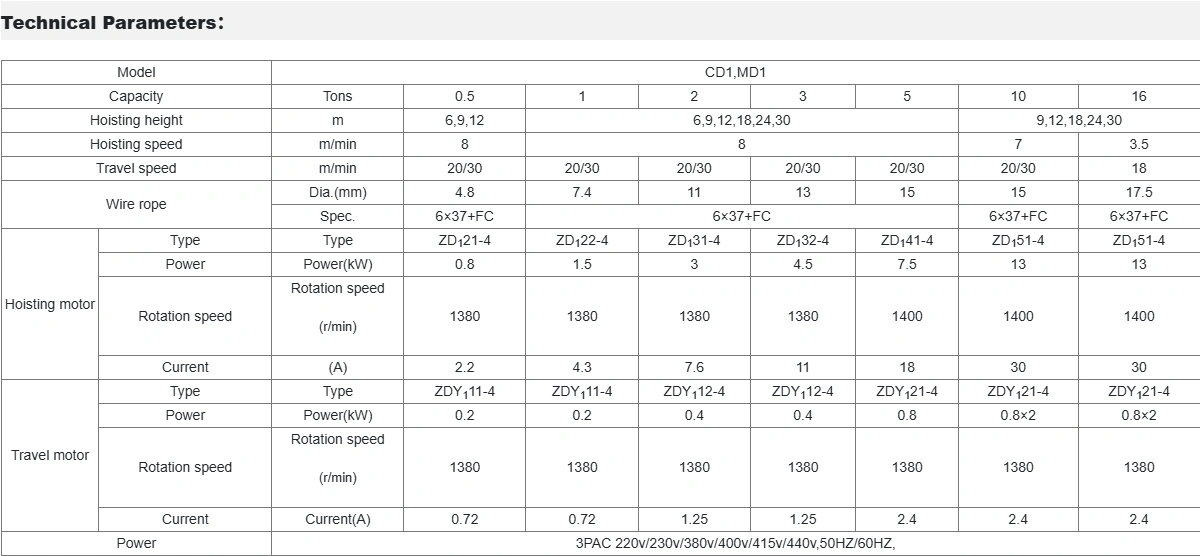

Technical parameters：
| Model |
CD1,MD1 |
| Capacity |
Tons |
0.5 |
1 |
2 |
3 |
5 |
10 |
16 |
| Hoisting height |
m |
6,9,12 |
6,9,12,18,24,30 |
9,12,18,24,30 |
| Hoisting speed |
m/min |
8 |
8 |
7 |
3.5 |
| Travel speed |
m/min |
20/30 |
20/30 |
20/30 |
20/30 |
20/30 |
20/30 |
18 |
| Wire rope |
Dia.(mm) |
4.8 |
7.4 |
11 |
13 |
15 |
15 |
17.5 |
| Spec. |
6×37+FC |
6×37+FC |
6×37+FC |
6×37+FC |
| Hoisting motor |
Type |
Type |
ZD121-4 |
ZD122-4 |
ZD131-4 |
ZD132-4 |
ZD141-4 |
ZD151-4 |
ZD151-4 |
| Power |
Power(kW) |
0.8 |
1.5 |
3 |
4.5 |
7.5 |
13 |
13 |
| Rotation speed |
Rotation speed
(r/min) |
1380 |
1380 |
1380 |
1380 |
1400 |
1400 |
1400 |
| Current |
(A) |
2.2 |
4.3 |
7.6 |
11 |
18 |
30 |
30 |
| Travel motor |
Type |
Type |
ZDY111-4 |
ZDY111-4 |
ZDY112-4 |
ZDY112-4 |
ZDY121-4 |
ZDY121-4 |
ZDY121-4 |
| Power |
Power(kW) |
0.2 |
0.2 |
0.4 |
0.4 |
0.8 |
0.8×2 |
0.8×2 |
| Rotation speed |
Rotation speed
(r/min) |
1380 |
1380 |
1380 |
1380 |
1380 |
1380 |
1380 |
| Current |
Current(A) |
0.72 |
0.72 |
1.25 |
1.25 |
2.4 |
2.4 |
2.4 |
| Power |
3PAC 220v/230v/380v/400v/415v/440v,50HZ/60HZ, |

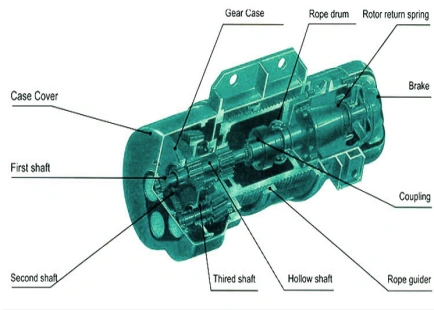

Mechanical Parts:
motor, transmission mechanism, reel and wire rope. The motor and the reel can be roughly divided into four types based on the different positions of each other.
(1) The electric hoist whose motor axis is perpendicular to the axis of the drum adopts worm gear transmission, which is large in width, heavy in structure, low in mechanical efficiency, and difficult to process. No manufacturer produces products of this type of structure anymore. Wire rope electric hoist
(2) The electric hoist with the motor axis parallel to the drum axis has the advantage of small height and length.Its disadvantages are large width, grouping, and complicated manufacturing and assembly. The track turning radius is large.
(3)The electric hoist with the motor installed in the drum has the advantages of small length and compact structure. Its main disadvantages are poor heat dissipation conditions of the motor, poor grouping, inconvenient inspection, installation, and maintenance of the motor, and complicated power supply devices.
(4) The electric hoist with the motor mounted on the outside of the drum has the advantages of good grouping, high degree of generalization, easy to change the lifting height, and convenient installation and maintenance. The disadvantage is: the length is large.

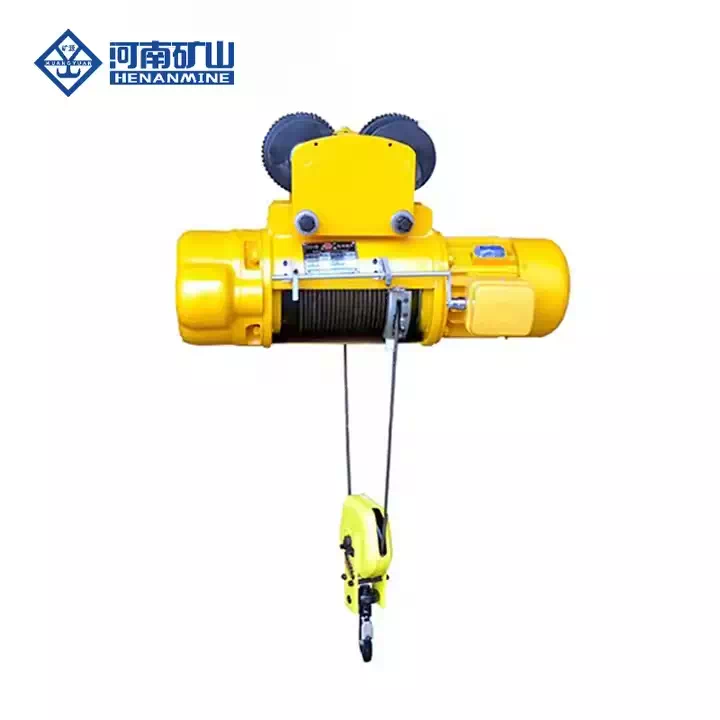

Product feature of single lifting speed electric wire rope hoist:
1.Lifting speed: Single lifting speed
2.Trolley travelling speed: 20m/min
3.Working class: M3~M4
4.Control method: pendant control+ remote control
5, Full safety system as follows:
Weight overload protection
Emergency stop system
Over current protection
Short-circuit protection
Phase sequence protection
Zero position protection
Voltage loss protection
Overhigh lift and overlow lift limit swit

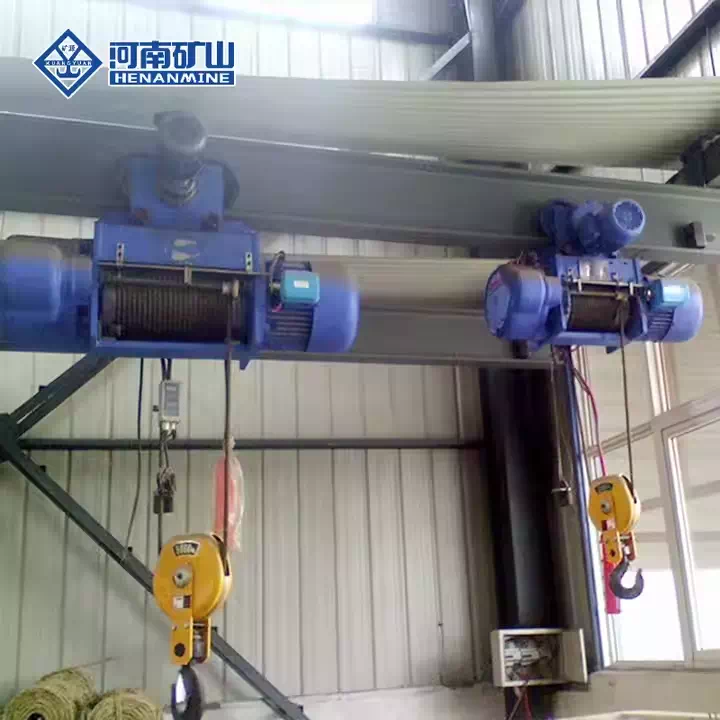

Installation Service:
Crane installation service for Henan Mining Crane Co., Ltd.
Henan Mining Crane Co., Ltd. can not only provide electric hoists, but also electric hoist solutions. First, we will provide electric hoist design, electric hoist manual, electric hoist drawings, electric hoist wiring diagram, electric hoist electrical diagram and electric hoist crane safety Before or after delivery of the video, our technicians will supervise the installation according to the documents. Of course, customers can install it according to their own requirements.
After the installation is complete, our technicians will instruct to carry out the load test in accordance with the electric hoist load test procedure, followed by electric hoist operator training and electric hoist maintenance training. All procedures will be carried out according to the electric hoist training video and electric hoist training PowerPoint.
The cranes of Henan Mining Crane Co., Ltd. have won many honors in the certification of different electric hoist types
If you want to know more about electric hoist, please find electric hoist accessories, electric hoist pdf, electric hoist catalog from the download center to obtain mobile electric hoist specifications and electric hoist regulations.
