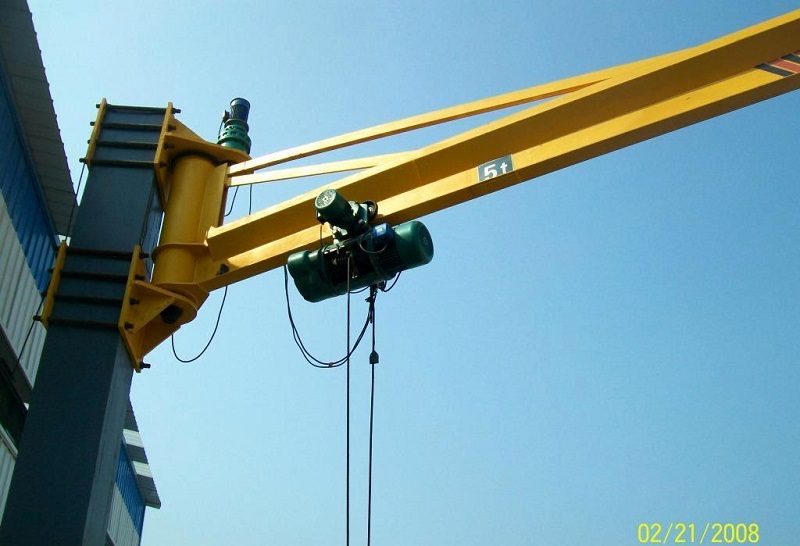

Wall mounted cantilever jib crane can be mounted to your wall or column in your workshop to accommodate any space constraints. Our wall mounted cantilever jib crane offer an extensive range of installation and capacities.
Load capacity from 0.25 t to 5 t. It is useful where overhead hoists are neither practical nor feasible. This machine utilize 180 degree floor coverage, allowing unrestricted placement of machinery and equipment.
Load capacity(t) | 0.25 | 0.5 | 1 | ||||||||||
Lifting height(m) | 5 | 5.5 | 6 | 5 | 5.5 | 6 | 5 | 5.5 | 6 | ||||
Valid radius(m) | 4 | 4.5 | 5 | 4 | 4.5 | 5 | 4 | 4.5 | 5 | ||||
Working duty | A3 | ||||||||||||
Lifting speed(m/min) | 8(0.8/8) | ||||||||||||
Circulate speed(m/min) | 20 | ||||||||||||
Cemter height(m) | 1.2 | 1.6 | 2.56 | ||||||||||
Max. Height(m) | 4.326 | 4.826 | 5.326 | 4.430 | 4.930 | 5.430 | 4.525 | 5.025 | 5.525 | ||||
Total weight(t) | 343 | 362 | 378 | 389 | 405 | 420 | 768 | 782 | 810 |
Weight overload protection
Emergency stop system
Over current protection,Short-circuit protection
Phase sequence protection,Zero position protection
Voltage loss protection
crane rotating stopper and cross traveling limit switch and stopper
Lifting overhigh and overlow limit switch
Henan Mine Crane Co.,LTD crane could supply not only wall mounted jib crane but also the solutions, firstly, we will supply wall mounted jib crane design, wall mounted jib crane manual, wall mounted jib crane drawing, wall mounted jib crane wiring diagram, wall mounted jib crane electrical diagram and wall mounted jib crane safety video before or after delivery, our technician will do supervision the installation according to the document, of course, the customer can do installation by themselves according to their requirement.
After installation, our technician will indicate to do the load test according to the overhead crane load test procedure, then overhead crane operator training and overhead crane maintenance training, all the procedure will be made according to the overhead crane training videos and overhead crane training PowerPoint,
