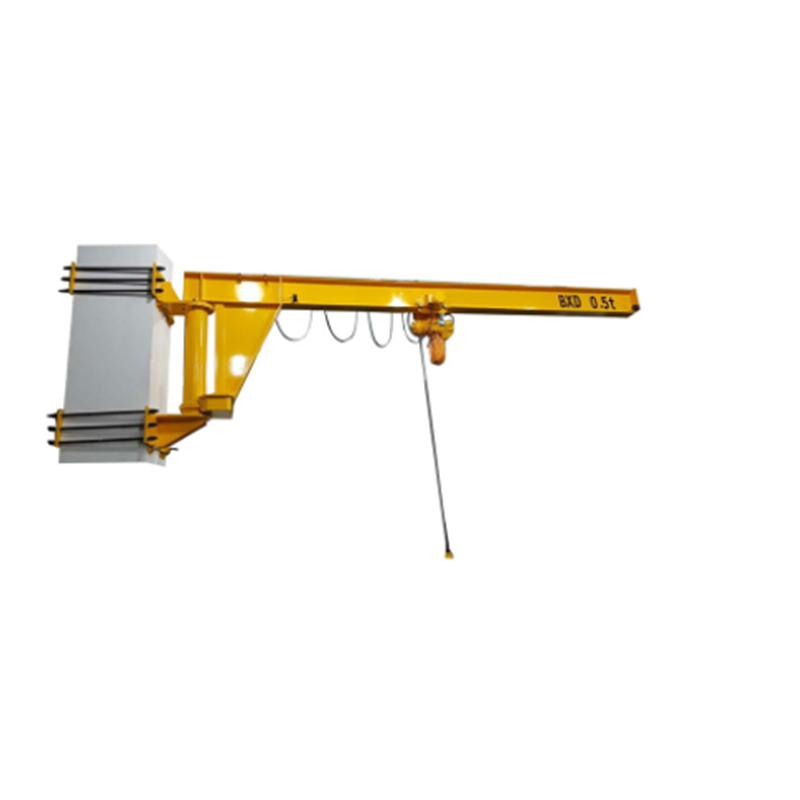

Wall Mounted Jib Crane

BZQ type wall mounted jib rotary crane is a kind of lifting equipment used with PK type electric chain hoist or CD type electric hoist.

Send Inquiry

BZQ type wall mounted jib rotary crane has the characteristics of simple operation, reliable operation and convenient maintenance. It is widely used in the lifting and transportation of workpieces in the production line, and between the upper and lower parts of the machine tool in the workshop.

When the cantilever crane is in operation, the cantilever is driven by the gear of the reducer or the suspended weight or pull ring is pushed by hand to realize the movement of the lifting object.

The biggest advantage of the wall cantilever crane is that it can be directly installed on the wall or column, and can also be installed on the machinery and equipment, so that it does not need to occupy any ground space. The installation method is simple and the lifting weight is 0.25-5t.

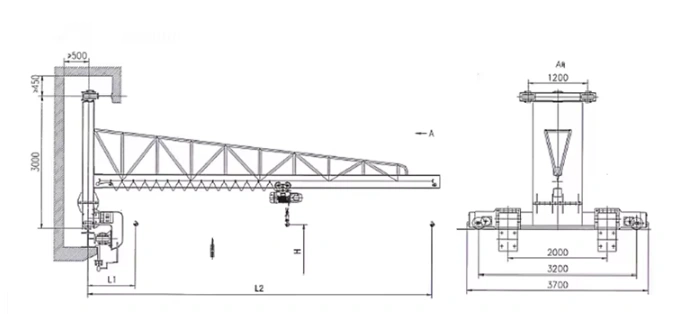

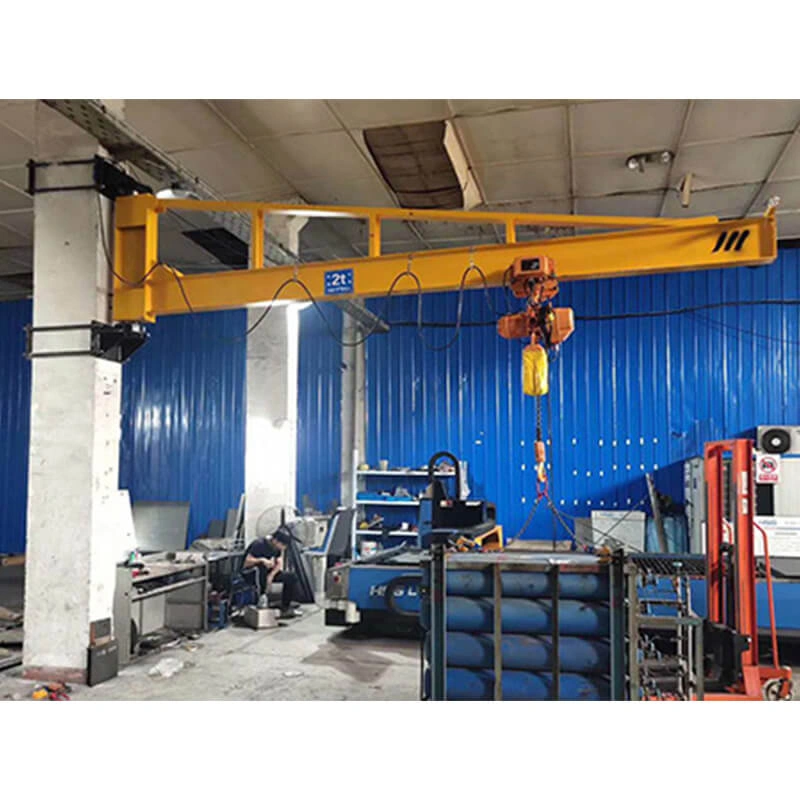

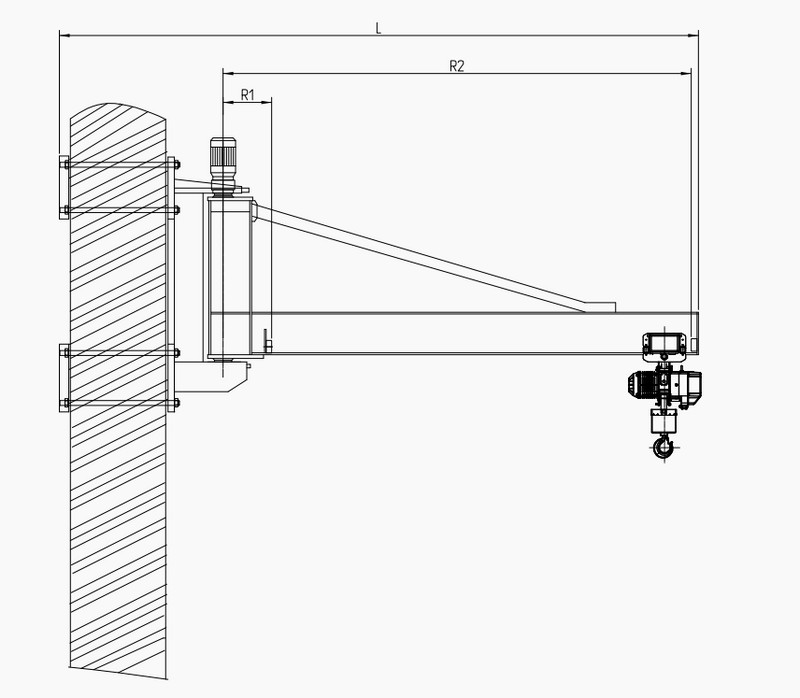

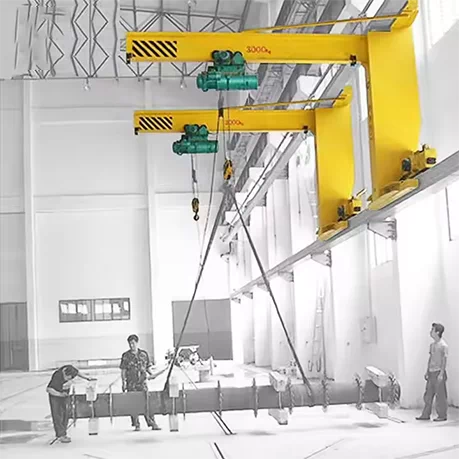

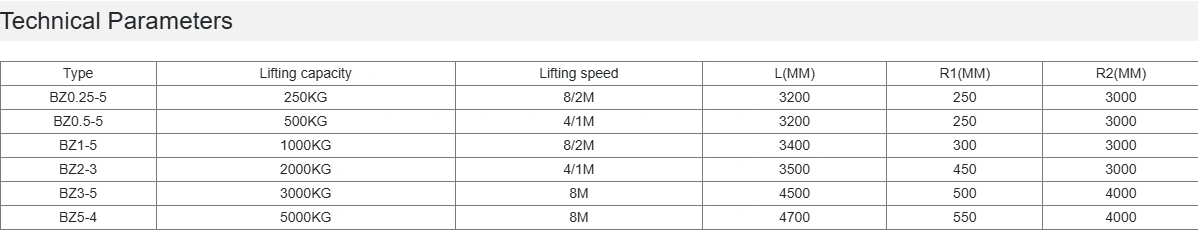

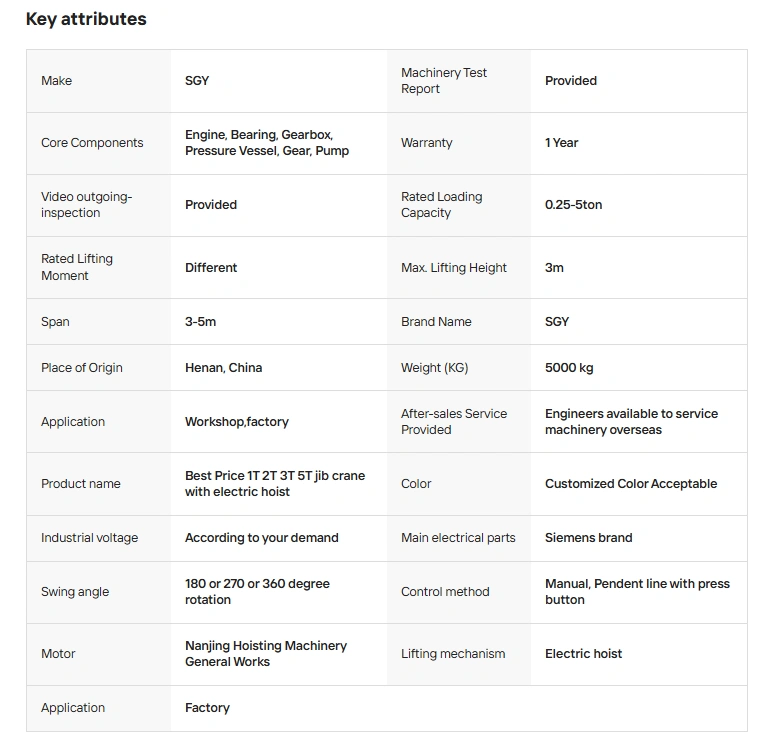

Technical Parameters

Type Lifting capacity Lifting speed L(MM) R1(MM) R2(MM)
BZ0.25-5 250KG 8/2M 3200 250 3000
BZ0.5-5 500KG 4/1M 3200 250 3000
BZ1-5 1000KG 8/2M 3400 300 3000
BZ2-3 2000KG 4/1M 3500 450 3000
BZ3-5 3000KG 8M 4500 500 4000
BZ5-4 5000KG 8M 4700 550 4000

Regarding the wall mounted jib rotary crane: simple but not simple, this is our design concept, under the conditions of ensuring strength, rigidity, and safety performance, let you have a more relaxed and pleasant operating experience.

The main parts are produced in standardized production, with stable quality, reliable performance, good versatility, and high cost performance, avoiding the problem of low maintenance parts and high cost in the later period.

Wall crane structure and operation:

This machine is mainly composed of cantilever,slewing device,electric chain hoist.
The electric chain hoist has the functions of lifting and reciprocating running on the beam.

The cantilever beam can be driven by the reducer on the slewing device to rotate the rollers.

Product Photos:

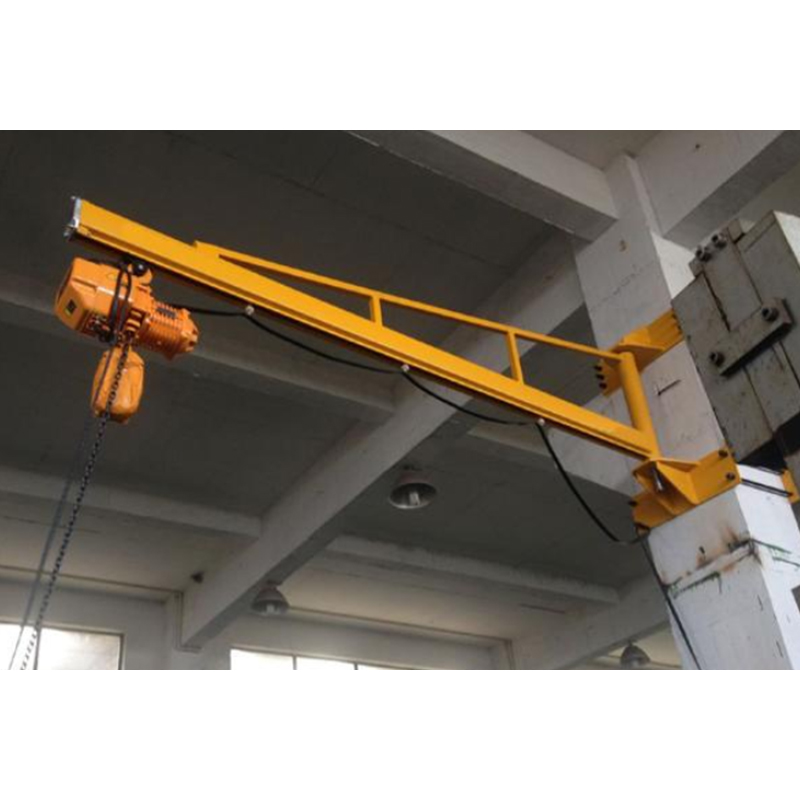

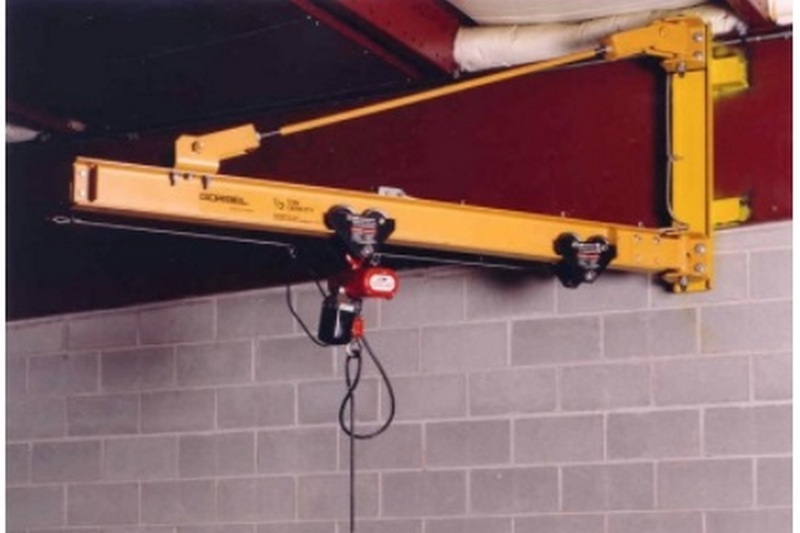

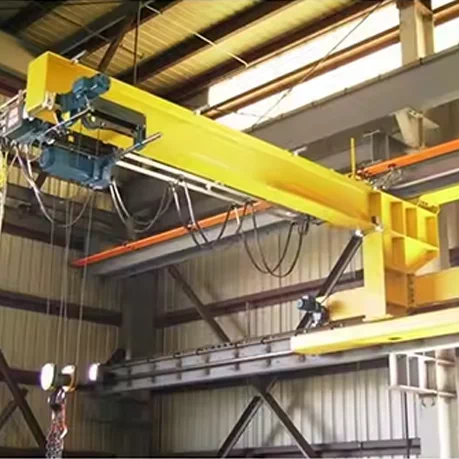

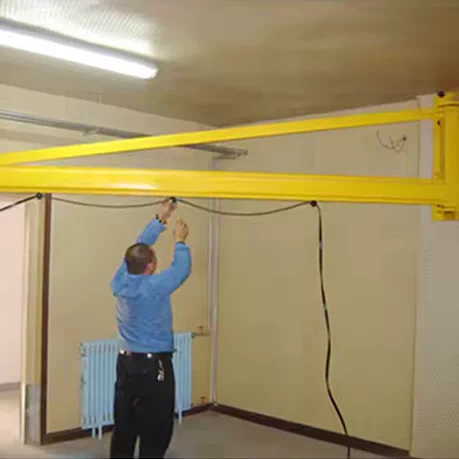

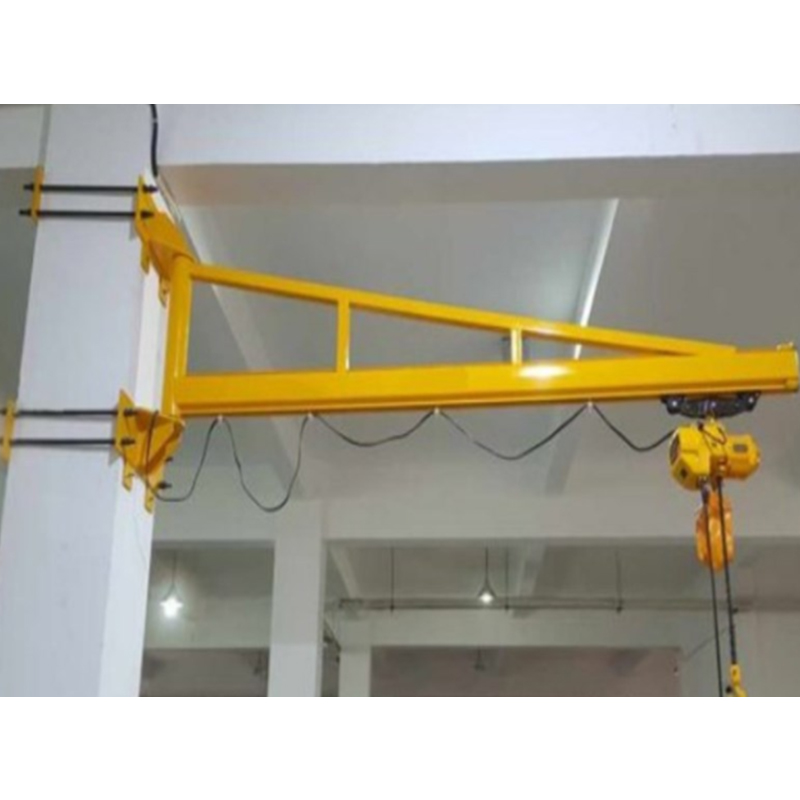

wall mounted jib crane 9

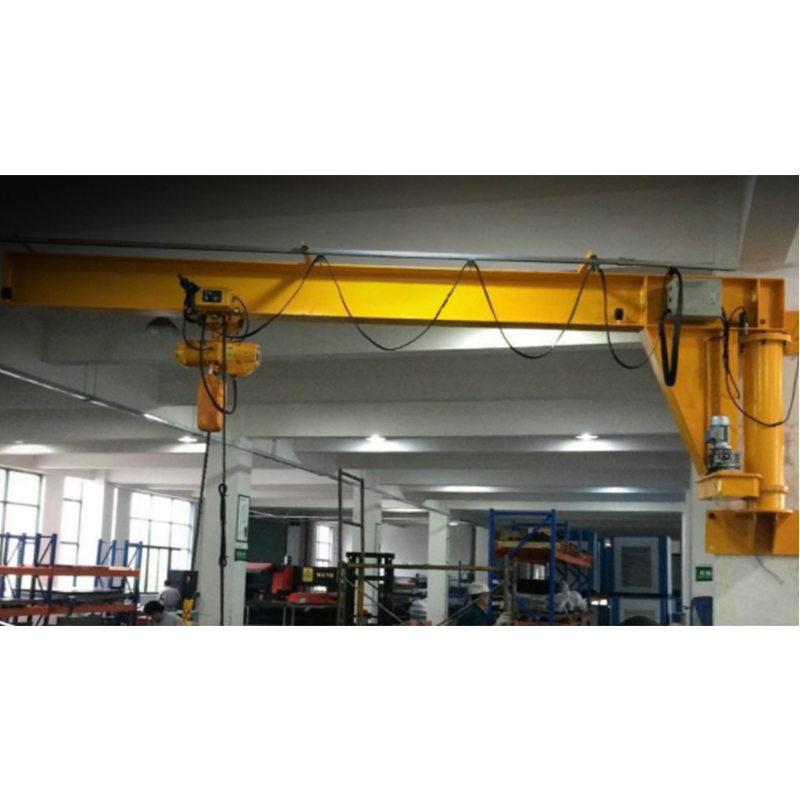

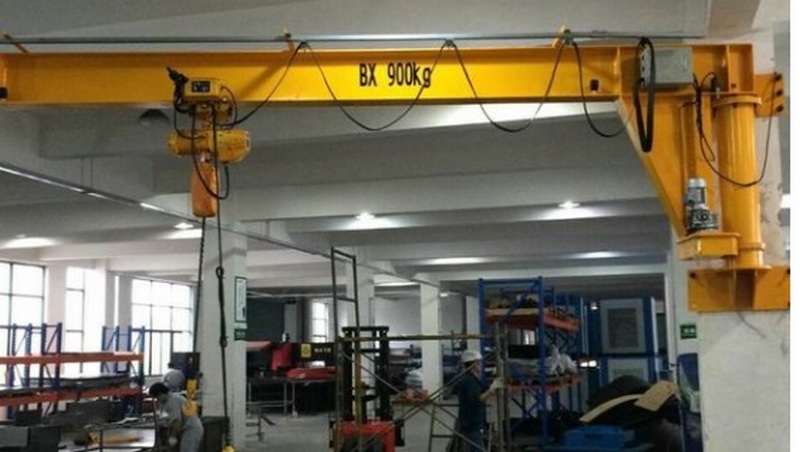

wall mounted jib crane 7
