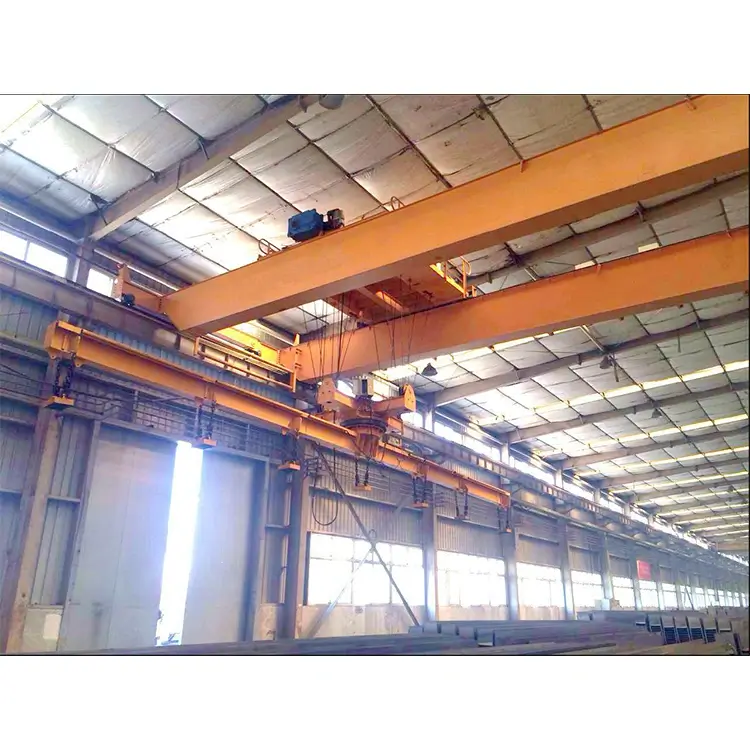

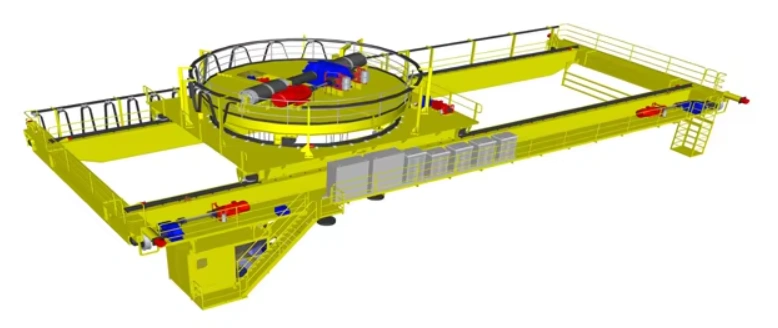

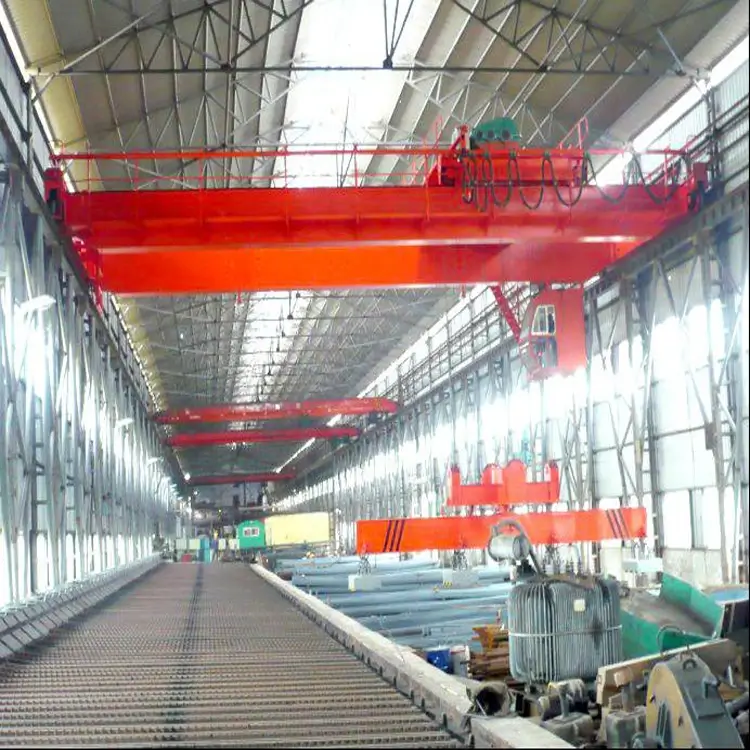

The QL Series Double Girder Electric Overhead Traveling Crane, equipped with a rotating magnetic lifting beam, is engineered for demanding material handling applications. Its core components include the main beam, end beams, lifting trolley, long-travel mechanism, operator cabin, and a sophisticated electrical control system.
This heavy-duty crane is ideal for indoor steel mill and workshop environments, specifically designed for the efficient transport of lengthy materials. It effortlessly handles steel billets, rebar bundles, and similar long, bulky loads with precision.
Key Features & Advantages:
Robust & Optimized Design: Built with a focus on structural integrity and weight efficiency, resulting in a high strength-to-weight ratio for superior load-bearing capacity.

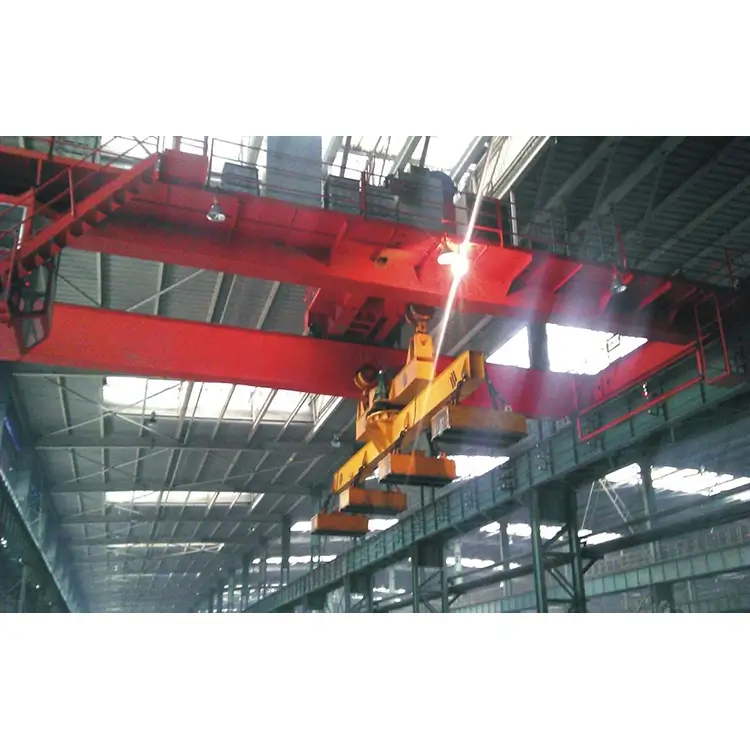

Versatile Lifting Attachment: The rotating beam can be fitted with an electromagnetic plate or other magnetic devices, offering flexible and secure load handling with easy rotation for precise positioning.
Durable & Low Maintenance: Engineered for reliable performance and a long operational lifespan, minimizing downtime and reducing long-term maintenance costs.
Customizable Configurations: Available in standard capacities such as 5+5t, 10+10t, and 16+16t. Spans range from 10.5m to 31.5m with lifting heights from 6m to 30m.
Rigorous Performance Standards: Designed for A6/A7 duty classes, ensuring endurance in intensive industrial cycles. Multiple control options include cabin, remote, and pendant controls.

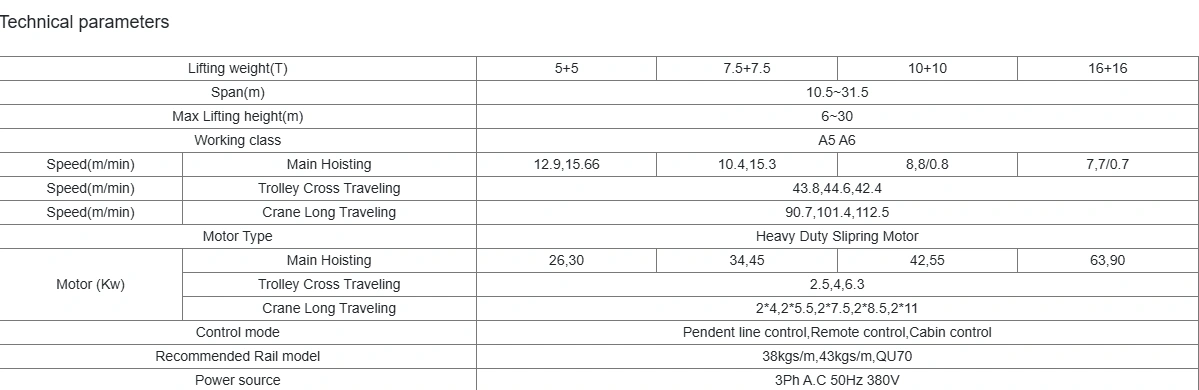

Technical Specifications:
Working Voltage: Compatible with 380V/400V/415V/440V 50/60Hz 3Ph and 220V 60Hz 3Ph power systems.
Main Girder Construction: Features a double welded box girder design, manufactured to comply with DIN/FEM standards for minimal deflection under load.
High-Strength Materials: Utilizes robust steel grades including Q235B, Q345B, and Q355E.
Superior Corrosion Protection: A durable epoxy zinc-rich primer (120μm) is applied, followed by finish coats, ensuring long-lasting corrosion resistance and a professional appearance.
Precision Assembly: The main girder and end beams are securely joined using high-strength bolts, guaranteeing overall structural alignment and integrity.

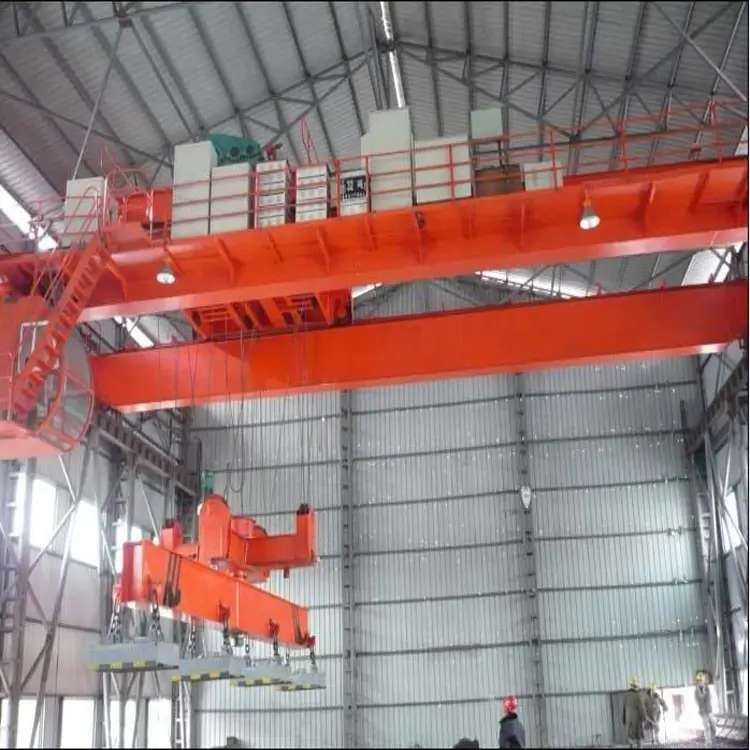

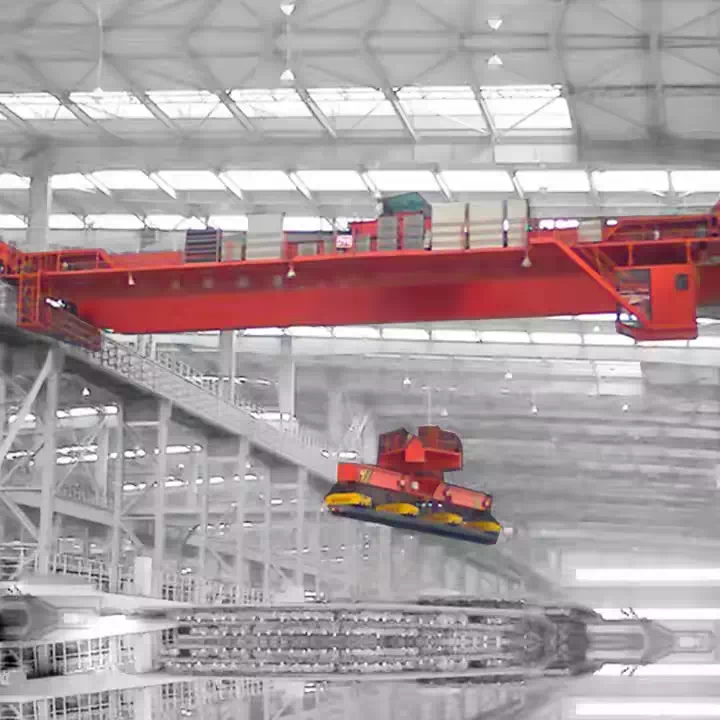

Engineered for superior performance in demanding industrial settings, the Double Girder Electromagnetic Overhead Crane provides a highly efficient and powerful solution for moving ferrous materials. This crane utilizes a powerful electromagnetic system to securely lift, transport, and position steel products with precision and ease.
Operational Excellence & Key Applications:
The principle is straightforward yet powerful: energize the electromagnet to create a secure magnetic field for instant load pickup. Once the material is moved to its destination, simply cut the power to release the magnetic force and deposit the item. This seamless on/off operation enables rapid cycling and significantly boosts workflow efficiency.
This crane is an indispensable asset across various heavy-industry sectors, including:
Metallurgical Processing Plants
Integrated Steel Mills and Mini-Mills

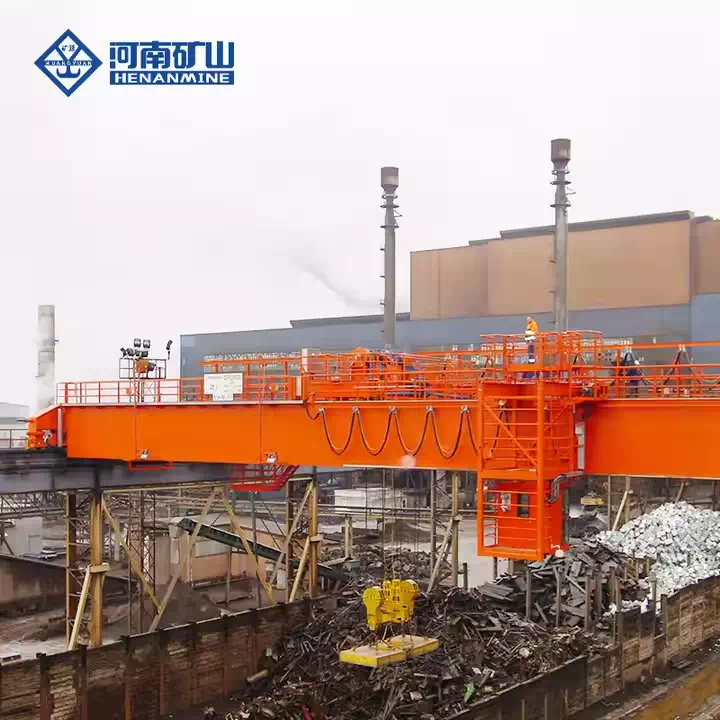

Scrap Metal Recycling and Processing Yards
Foundries and Heavy Fabrication Shops
Core Advantages for Your Operation:
Powerful Magnetic Force: Generates an exceptionally strong magnetic field, capable of handling massive loads—from steel slabs and coils to rebar bundles and scrap iron—weighing tens of tons.
Unmatched Handling Convenience: Streamlines the entire logistics process, making the loading, unloading, and systematic storage of heavy iron-based materials faster and safer than ever before.
Robust Double Girder Design: Ensures maximum stability and lifting capacity for the most challenging industrial environments, providing superior hook height and system longevity.
By integrating this crane into your facility, you unlock a new level of operational speed, safety, and reliability in your material handling workflow.
